Honeywell 7800 SERIES

65-0120—1 48
RM7838B
TROUBLESHOOTING
LOCKOUT MESSAGES (Table 12)
When RM7838B has locked out, it displays a repeating
cycle of messages. There are four states in the cycle:
1. STATE 1 (Fig. 31): First state message display lasts
six seconds. First line displays the word LOCKOUT fol-
lowed by the fault code number, and possibly a lower case
letter if an Expanded Annunciator is connected. The status of
the Relay Module at the time of lockout is shown on the right
side of the first line as either INITIAT, STANDBY, PURGE,
PFEP, MFEP, or RUN. The lockout reason corresponding to
the fault code number is displayed on the second line,
highlighted by asterisks on each side. If the lockout reason is
being enhanced due to the presence of an Expanded Annun-
ciator, a lower case letter, represented by x below, will appear
next to the fault number. This letter corresponds to the first-
out code supplied by the Expanded Annunciator.
2. STATE 2 (Fig. 32): Second state message display lasts
two seconds. The message consists of the English text.
3. STATE 3 (see Fig. 33): Third state display message
lasts three seconds. It is a replica of the burner status as it
existed at the time of lockout. The second line will be blank
if the burner status at the time of lockout did not include a pre-
emptive message (in parentheses) for the second line.

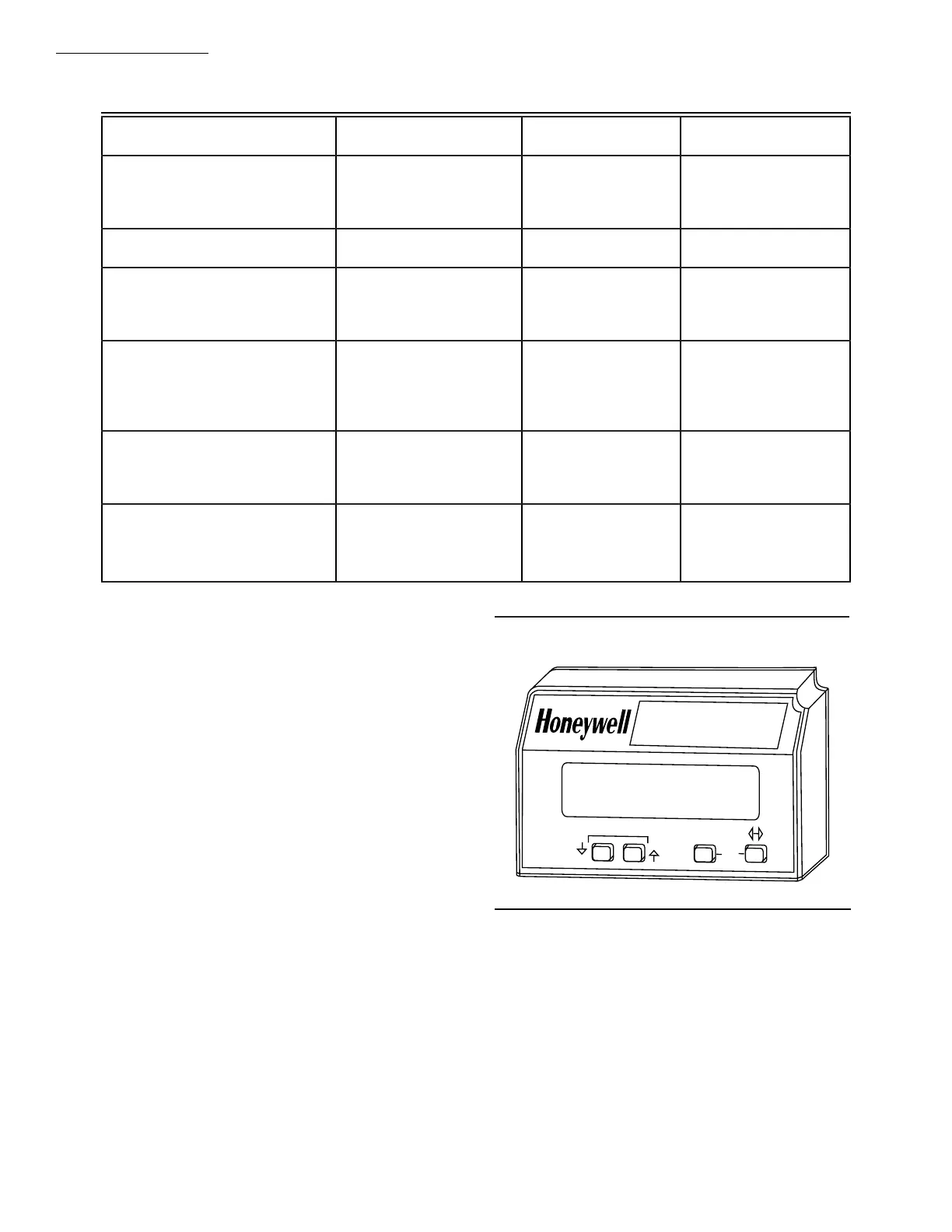

Fig. 31—Lockout message state 1.
M1991B
LOCKOUT #23p PURGE
*Airflow Sw.*
SCROLL
MODE
SAVE
BURNER CONTROL
4. STATE 4: Both lines are blanked for one-half second,
then cycling resumes back to the first state.
TABLE 11—SELECTABLE MESSAGES (SEE TABLE 4) (Continued)
Selectable Message/ Possible States/Range
Display Description (Terminals) Comments
Flame Response Amplifier Flame 3s/.8
Failure Response
Time (FFRT) in
seconds.
Purge Time Timing value mm:ss Two seconds to
of purge card. 30 minutes
Mfg Code Manufacturing code nnnn
is five digit number
representing
date code.
SW Rev. Software revision nnnn/nnnn First four numbers are
and version code the VFD software;
for RM7838B second four numbers
and Keyboard are the RM7838 software.
Display Module.
Expanded Annunciator First level prompt for
history information.
Has subset level.
See Table 5 or 10.
Remote Command Status of firing NONE/HOLD
rate command HF/LF
from remote
controller.
