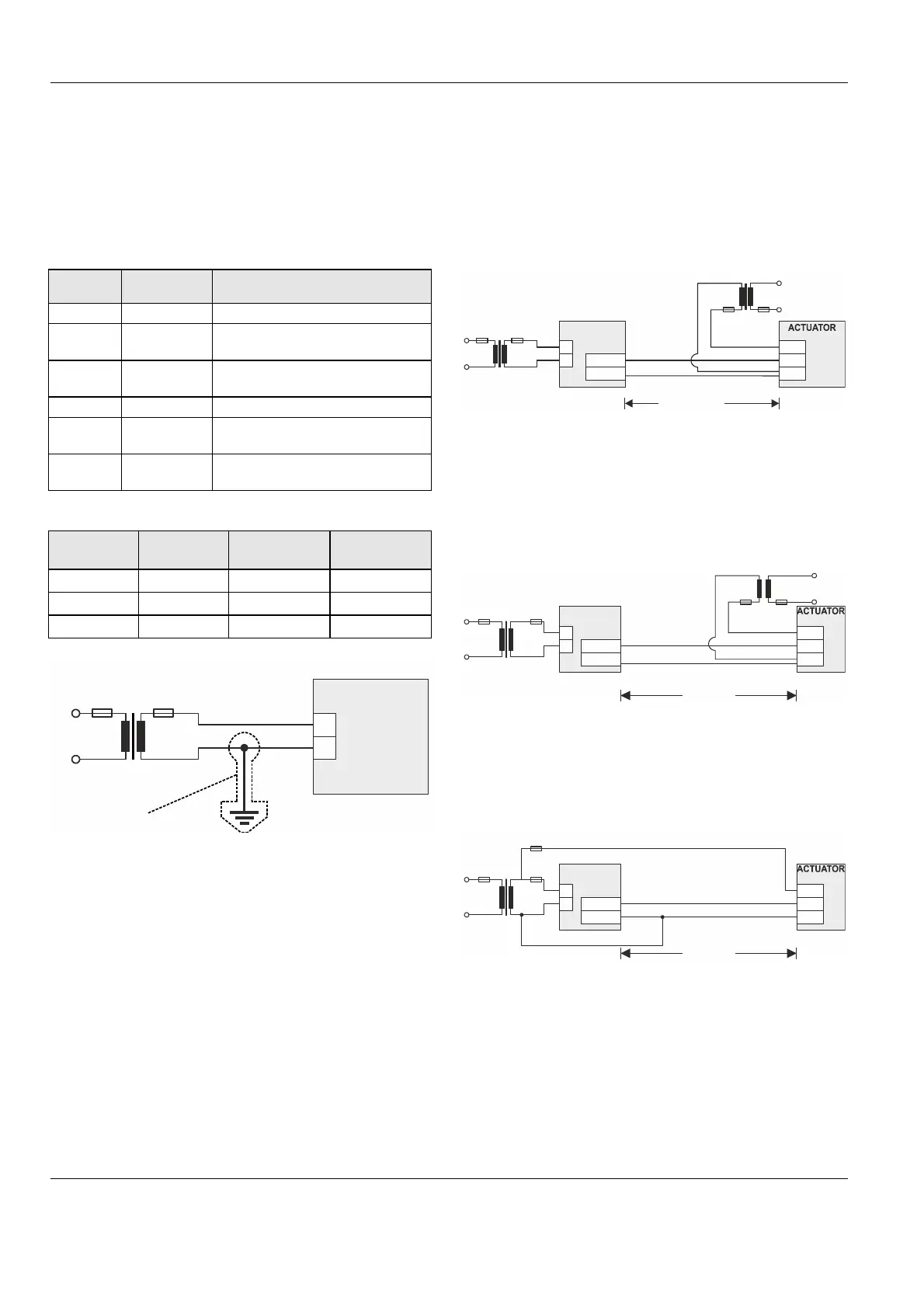

Transformer Data
In Europe, if the EAGLE is powered by transformers, then
such transformers must be safety isolating transformers
conforming to IEC61558-2-6.
In the U.S. and Canada, if the EAGLE is powered by trans-
formers, then such transformers must be NEC Class-2
transformers.
Table 9. 1450 series transformers data
part #
1450 7287
primary side secondary side
-001 120 Vac 24 Vac, 50 VA
-002 120 Vac
2 x 24 Vac, 40 VA, and 100 VA
from separate transformer
-003 120 Vac
24 Vac, 100 VA, and 24 Vdc, 600
mA
-004 240/220 Vac 24 Vac, 50 VA
-005 240/220 Vac
2 x 24 Vac, 40 VA, and 100 VA
from separate transformer
-006 240/220 Vac
24 Vac, 100 VA, and 24 Vdc,
600 mA
Table 10. Overview of CRT Series AC/DC current
transformer
primary
side
max. AC
current
max. DC
current
CRT 2 230 Vac 2 A 500 mA
CRT 6 230 Vac 6 A 1300 mA
CRT 12 230 Vac 12 A 2500 mA
NOT
RECOMMENDED
PRIMARY
SIDE
EAGLE
1
2
24 V~
230 Vac
120 Vac
24 V0
Fig. 18. Connection of EAGLE Controller
RIN-APU24
The RIN-APU24 Uninterruptable Power Supply can be
directly wired to an EAGLE Controller.
See RIN-APU24 Uninterruptable Power Supply – Mounting
Instructions (EN0B-0382GE51) for a detailed wiring diagram.
Powering Panel Bus I/O Modules and Field Devices
The EAGLE, Panel Bus I/O modules, and field devices can be
powered by either separate transformers (see Fig. 19, Fig. 20,
and Fig. 21) or by the same transformer (see Fig. 22 on pg.
13).
NOTE: Use a min. distance of 10 cm between power cables
and 0…10 V / sensor cables in order to prevent
signal disturbances on the 0…10 V / sensor cables.
See also section “Cable Specifications” on page 22.
Powering Field Devices and EAGLE via Separate Transformers
 24 V actuator connected to separate transformer
 Field device located max. 400 m from EAGLE
Y (0...10 Vdc)
24 V0
24 V~
230 V~
230 V~
24 V~
24 V0
GND
Y
24V ~
F2
EAGLE
1
2
20...23
19
max. 400 m
Fig. 19. Power supply of EAGLE and field devices by
separate transformer
Powering Field Devices and Panel Bus I/O Module via Separate
Transformers
 24 V actuator connected to, e.g., an analog output module
 Field device located 100 … 400 m from EAGLE
24 V0
230 V~
24 V~
max. 400 m
CLIOP822A
73
74
1...8
GND
Y
24V ~
11...18
F1
24 V0
230 V~
24 V~
F2
Y (0...10 Vdc)
Fig. 20. Power supply via a separate transformer
Powering Field Devices via Panel Bus I/O Module
 24 V actuator connected to, e.g., an analog output module
 Field device located max. 100 m from EAGLE
Y (0...10 Vdc)
24 V0
230 V~
24 V~
max. 100 m
CLIOP822A
73
74
1...8
GND
Y
24V ~
11...18
F1
F2
Fig. 21. Power supply via Panel Bus I/O Module
Lightning Protection
Please contact your local Honeywell representative for
information on lightning protection.
