Honeywell CM702 User Manual

CM702 CHRONOTHERM
3 EN0H 8545 UK07 R1 09/06
INSTALLER SET-UP
Specific Applications Setting What do you need to change?
Cycle/
Hour
Minimum
ON time
(in minutes)
Note :
a. To change Cycle/Hour, please go to parameter n. 2, category 2
in the installer set-up mode.
b. To change Minimum ON Time, please go to parameter n. 1,
category 2 in the installer set-up mode.
Heating Gas Boilers
(<30KW)
6 1 No action required
Oil Boiler 3 4 1. Set Minimum ON Time to 4 minutes.
2. Set Cycle/Hour to 3.
Thermal Actuator 12 1 Set Cycle/Hour to 12.
Zone valve 6 1 No action required.
Electric heating
(for applications
<5A
)
12 1
1. Set Cycle/Hour to 12.
In Installer set-up we can:
❑ Set-up specific applications
❑ Enable special features

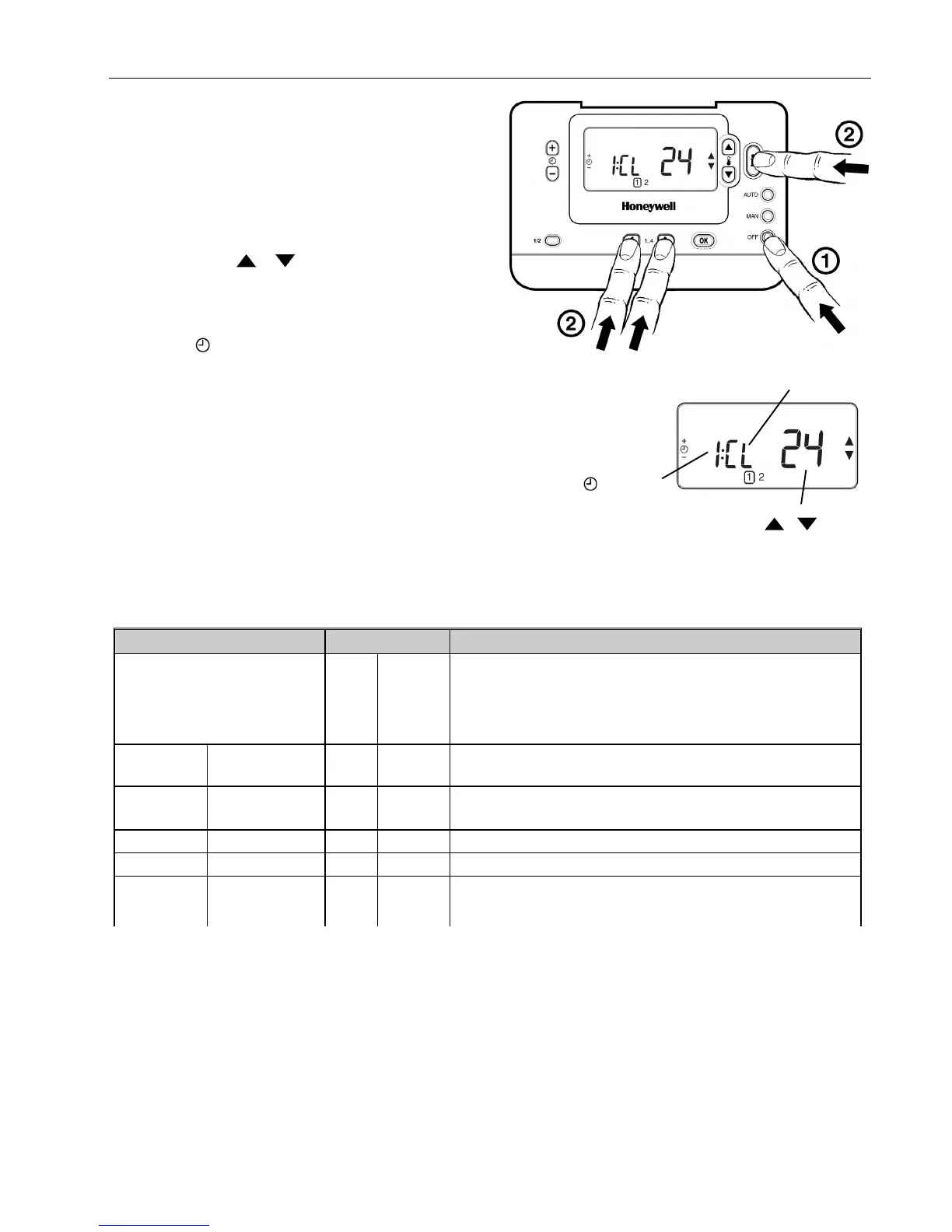

To enter the installer set-up mode:
a) Press the OFF button.
b) Press and hold the INFO
i button and the two program
buttons ‘< >’ together.
c) The unit will display the first parameter of installer
parameter group category 1 (from n.1 to n.19).
d) Press the TEMP
or buttons to change the factory
setting. The display will flash indicating that a change has
been made.
e) Press the green OK button to confirm this change and the
display will stop flashing.
f) Press the
+ button to go to the next parameter.
g) Press the program button > to go to category 2 in the
Installer mode (from n.1 to n.5).
h) To exit the installer mode, press the AUTO, MAN or OFF
buttons.
Abbreviated Set-Up Description
e.g. Cl = Clock Format
Installer Set-up Number
(Press + or - to change)
e.g. 1 = Clock Format
Factory Setting or New Choice
Press TEMP or to change
e.g. 12 = AM/PM Format
24 = 24hr Format
