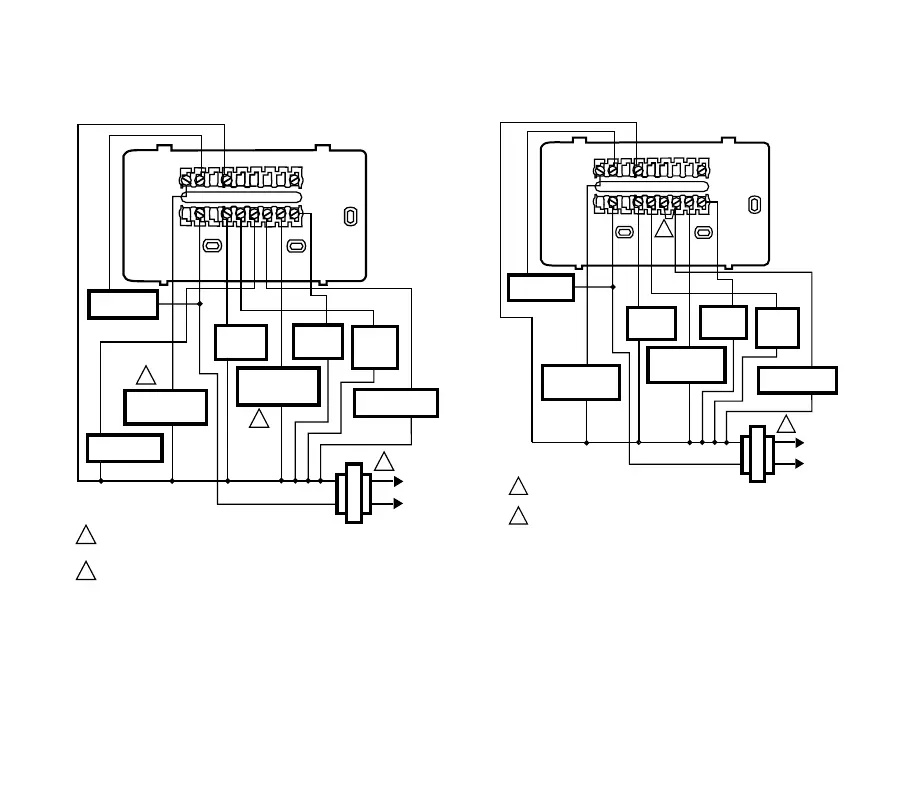

WIRING DIAGRAMS
See Table 1 on page 8 for additional wiring assistance.
Typical hookup of CT3611 with isolated
stage-one heating and cooling connections.
1
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
NEVER ATTACH WIRES TO BOTH THE O AND B TERMINALS. SEE WIR
E
WALLPLATE TERMINALS SECTION FOR MORE DETAILS.
2
2
1
THERMOSTAT
B
RW2
L
C
EW1Y OG
M15110
B
L2
L1
(HOT)
HEAT
CHANGEOVER
VALVE
EQUIPMENT
MONITOR
AUX. HT.
RELAY
COOL
CHANGEOVER
VALVE
FAN
RELAY
EM.
HEAT
RELAY
1ST STAGE
HEAT RELAY
COMPRESSOR
RELAY
2
Typical hookup of CT3611.
1
2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
2
LEAVE FACTORY INSTALLED JUMPER IN PLACE.
1
THERMOSTAT
B
R
W2
L
C
EW1
Y
OG
M15113A
L2
L1
(HOT)
HEAT
CHANGEOVER
VALVE
EQUIPMENT
MONITOR
AUX. HT.
RELAY
COOL
CHANGEOVER
VALVE
FAN
RELAY
EM.
HEAT
RELAY
COMPRESSOR
RELAY
