ENI7003R8 KO65 2013
5
4. DIMENSIONS

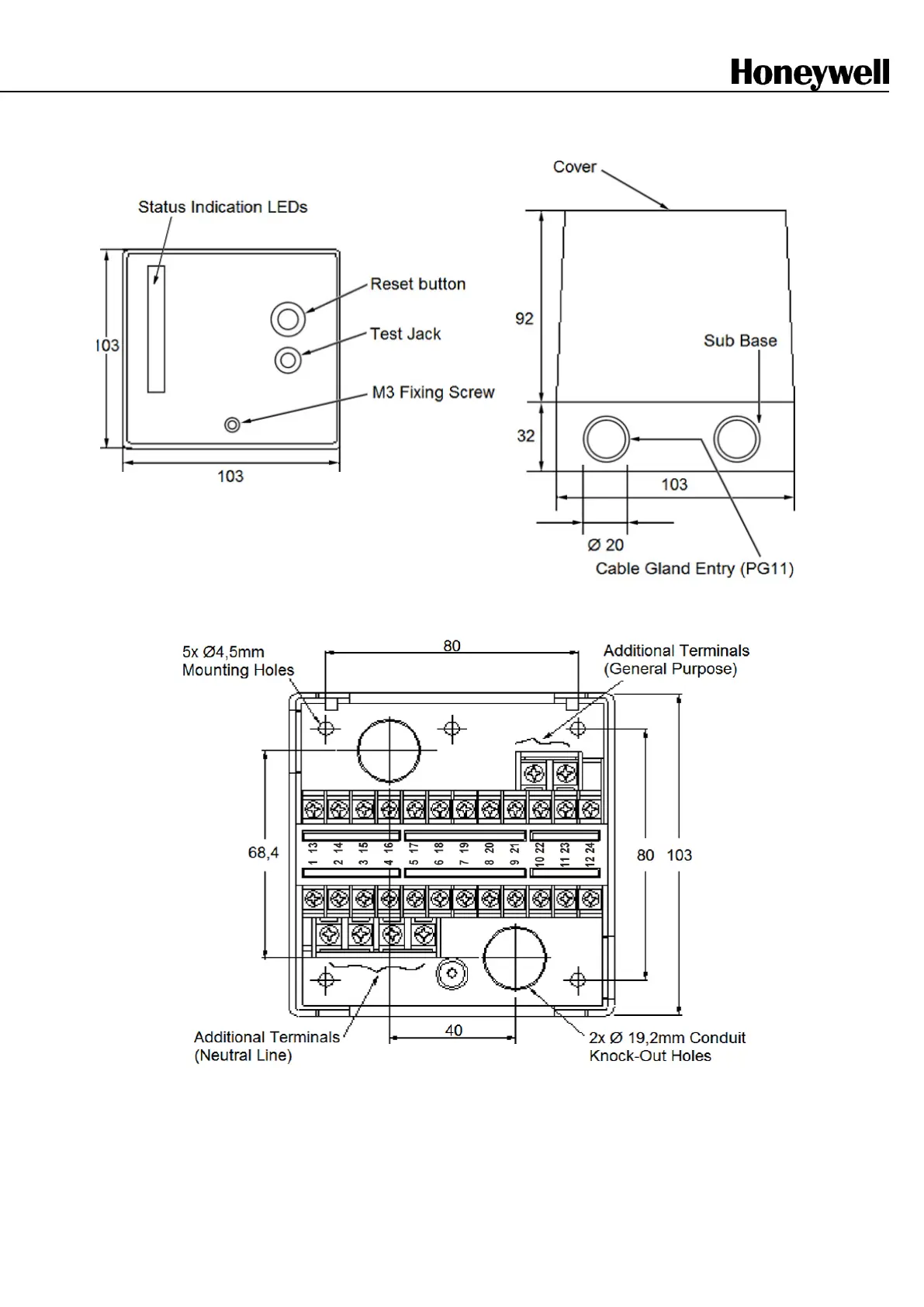

Fig. 1: External Dimensions (in mm)
Fig. 2: Mounting dimensions of sub-base and terminal layout
