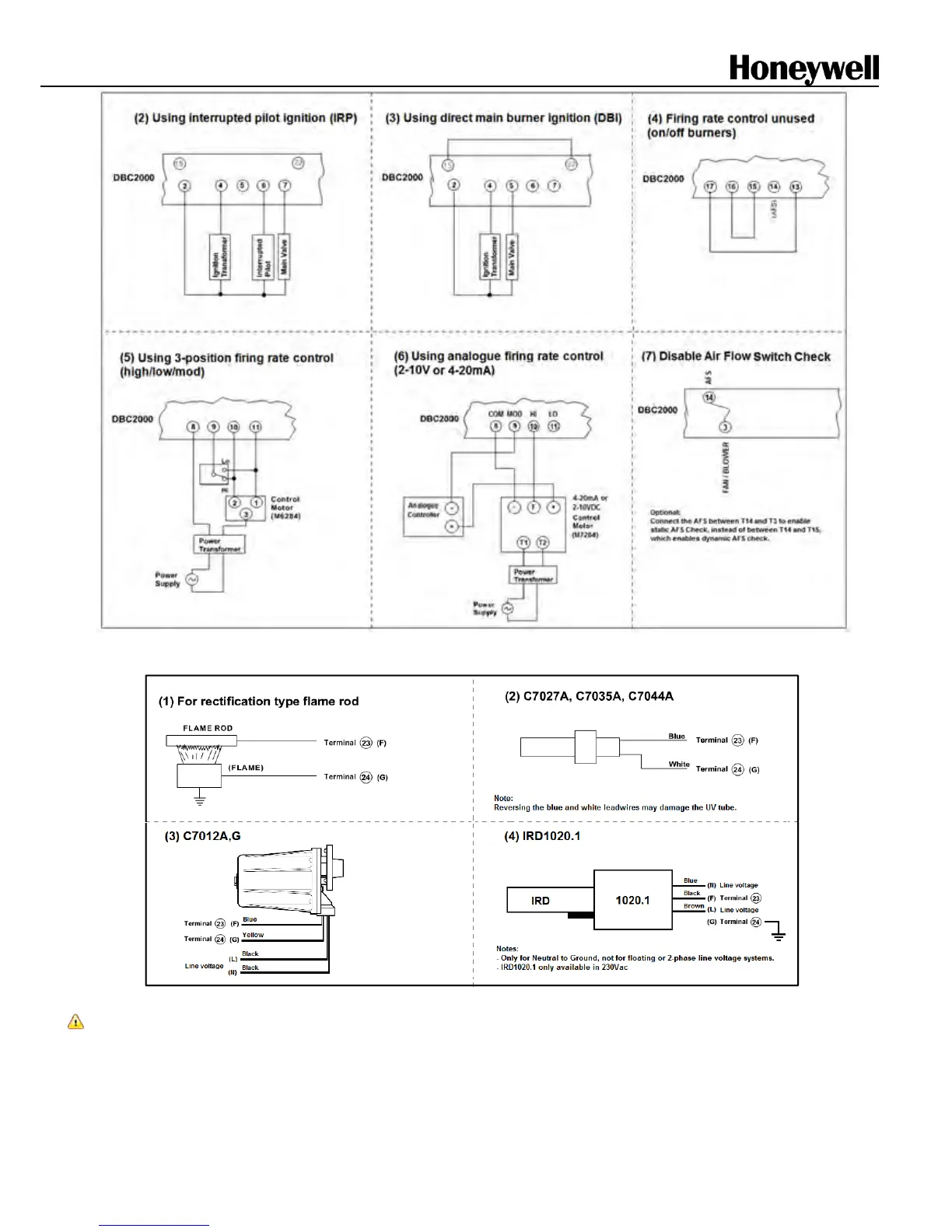

Fig. 3-3: More examples of wiring to external equipment
Fig. 4-1: Wiring a flame detector
CAUTION
There is line voltage on flame sensor inputs. Don’t touch the lead wires of the UV detector or the flame sensing
electrode to avoid an electrical shock.
