DELTANET R7515A/B, RP7515A/B, R7516B MICROCEL
™
CONTROLLERS
3-15/16 (100)
2-11/16
(68)
1-3/16
(30)
3/16 (5) (TYPICAL)
5-1/4 (134)
3/8 (10)
DIAMETER
(TYPICAL)
5-7/16
(138)
L
7-15/16
(202)
6-3/4
(172)
3-15/16 (100)
2-11/16
(68)
1-3/8
(35)
7-1/16
(180)
7/8
(20)
5/8
(16)
6-15/16
(176)
15/16
(24)
5/8
(16)
2
1
6-5/8 (168)
D
5-15/16
(151)
5-3/4
(146)
1
2
KNOCKOUT (9) FOR 1/2-INCH CONDUIT
FITTINGS. USABLE QUANTITY DEPENDS
ON MODEL.
DOUBLE KNOCKOUT (2) FOR 1/2 OR
3/4-INCH CONDUIT FITTINGS.
C5654

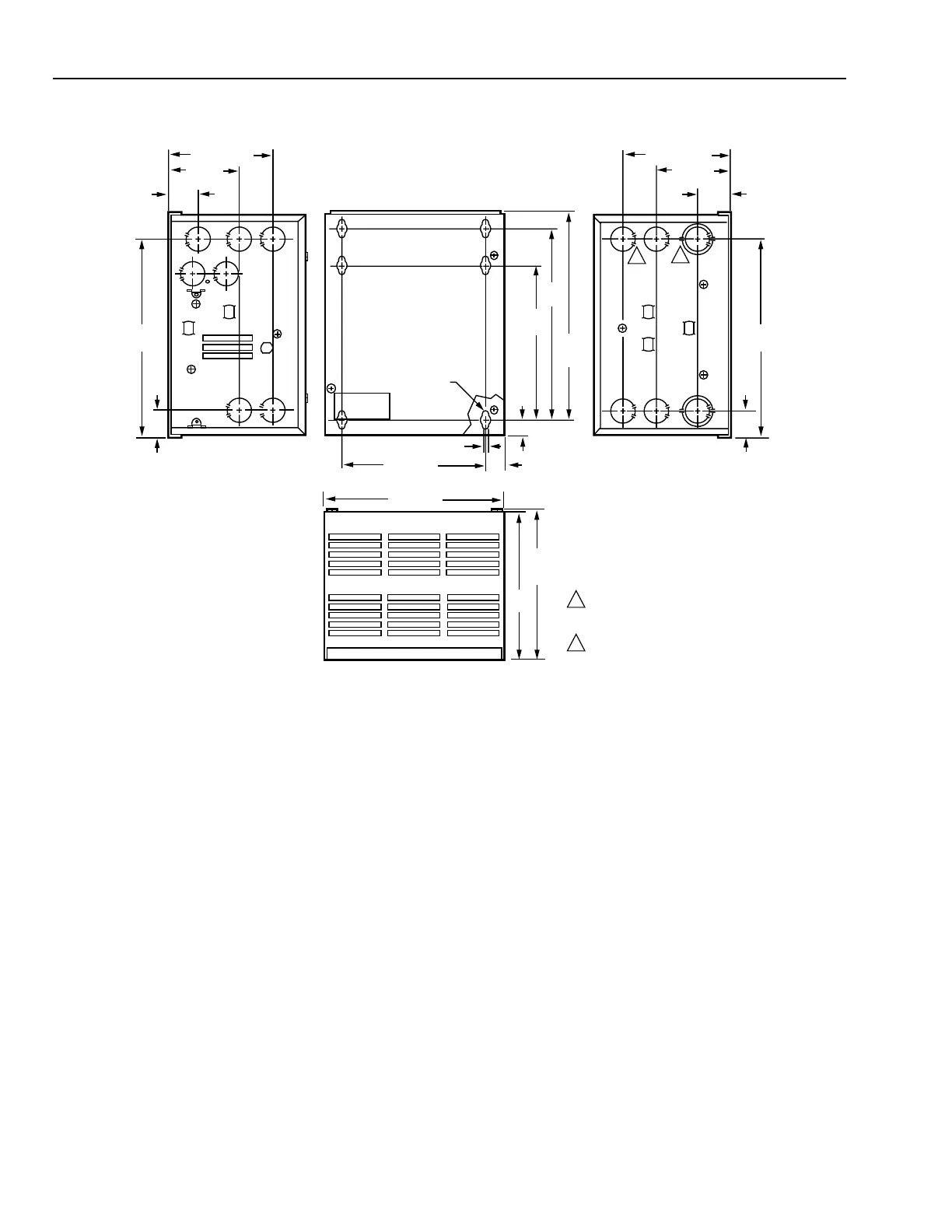

Fig. 4. Large-Case (Two Input Boards) MicroCel, Approximate Dimensions in Inches (Millimeters).
Model without Damper Actuator
Remove the MicroCel cover by loosening the two cover
mounting screws (Fig. 1).
Mount the MicroCel in a location convenient to the
equipment being controlled. Use No. 10 thread-forming,
no
t thread-cutting (e.g., TEK),
screws (obtained locally)
to secure the MicroCel to the mounting surface through
the four key holes inside the case.
Replace and secure the MicroCel cover after wiring
and piping.
Model with Damper Actuator
The R7516B model is furnished with an integral damper
actuator and can drive a round or square damper shaft
clockwise (cw) and counterclockwise (ccw). The R7516B is
shipped with the output hub of the actuator in the full cw
position (Fig. 5) as viewed from the end of the damper shaft
(the terminal side of the actuator).
95-6083
4
