Instruction manual 977 Tank Side Indicator Page 7
3 Commissioning
The commissioning of the display items for the 854 XTG or 970/971/973 SmartRadar, to which the Tank Side
Indicator is connected, shall be performed after the basic settings have been given to the gauge.
3.1 Display settings
Item Name Description
W2= Protection level 2 Enter protection level 2
DF= Display format One character, A … K. Selects the required display format for the
977 TSI. Refer to section 4.1 for an overview of all available
display formats.
A : recommended for servo / radar level gauges with
optional temperature measurement;
B : recommended for servo / radar level gauges without
temperature measurement.
DG= Tenth millimetre selection One character. Only valid when level dimension is metres.
Y : for tenth millimetre indication
N : for millimetre indication
DJ= Zero format One character. Selects how the number zero is displayed:
0 : as an “0” with “slash”
O : as capital letter “O”
Default is the zero with slash.
EX Exit Exit protection level 2.
3.2 Pincode for keyboard commands
Only valid with 977 TSI firmware <A3.0.
When the 977 Tank Side Indicator is equipped with the optional keyboard, a pincode must be specified in the
servo gauge. The chosen pincode is to be issued from the indicator keyboard before the command is executed.

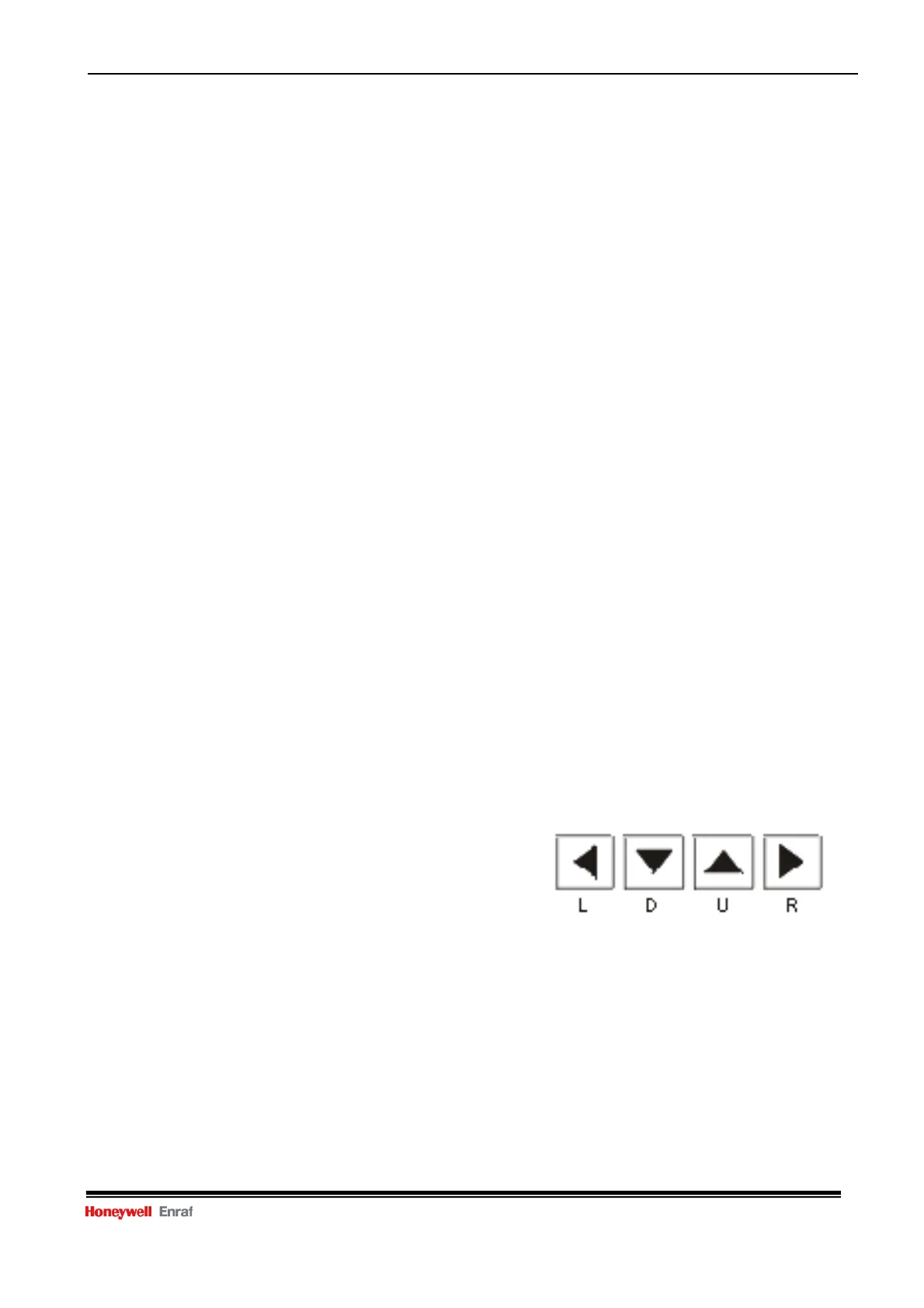

The indicator keyboard has four keys with arrows: ‘left’,
‘down’, ‘up’ and ‘right’. In figure 3.1 these keys are
marked as: L (left), D (down), U (up) and R (right). With
the keys: L, D and U a “pincode” can be formed of
maximum eight characters long. A practical approach is
to select a pincode of 2 or 3 characters. Figure 3.1 Layout optional keyboard
For instance:
“ L D U ” (left arrow key, down arrow key and up arrow key). This pincode must be programmed in item 0B of
the servo gauge.
When the Tank Side Indicator displays the message: “Pincode= ”, the keys: arrow left (L), arrow down (D), arrow
up (U) are to be pressed (the chosen pincode) plus 5 times the key arrow right (R) to complete the eight
character long pincode.
Note 1:
This is only valid for the 854 ATG and XTG servo gauges, as the 973 SmartRadar LT does not recognize
gauge commands as Test Gauge, Interface Profile, etc.
