Excel 800 LION
29 EN1B-0375GE51 R0308
Connecting Field Devices
Connecting Field Devices with Power Supply
Depending on the distance from the controller, field devices
can be supplied by the controller or need a separate
transformer, see Table 20 on page 14.
For fusing see section "Fusing Specifications" on page 11.
Example 1: Power Supply via Controller
• 24 V actuator connected to an analog output module
• Less than 100 m away from the controller
Y (0...10 Vdc)
24 V0
24 V~
max. 100 m
CLLIONLC01 822
F2
F1
2
9
~
1
230 V~

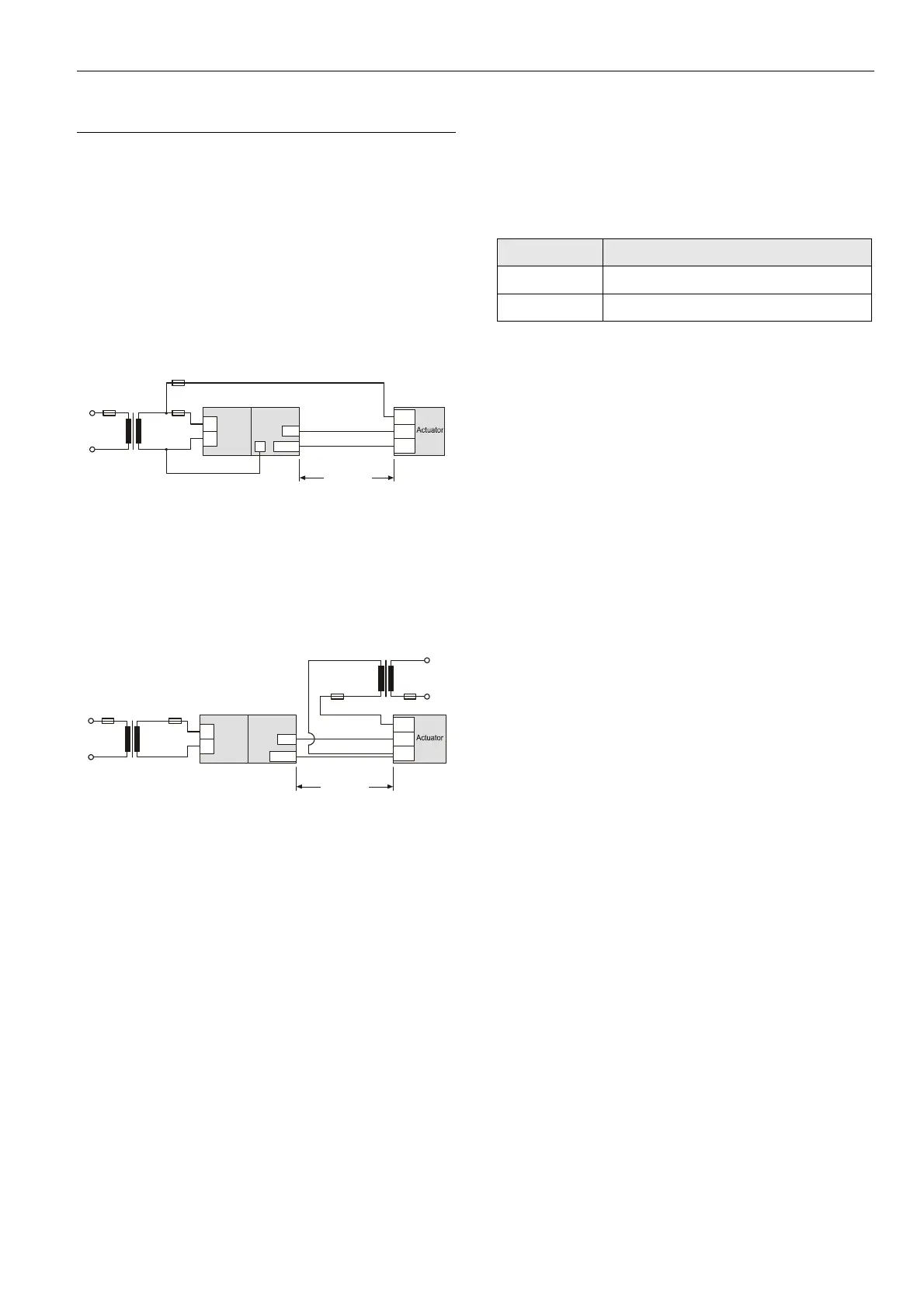

Fig. 39 Power supply of field devices via I/O module
Example 2: Power Supply via Separate Transformer
• 24 V actuator connected to an analog output module
• 100 … 400 m away from the controller
Y
24 V0
F1
F2
230 V~
24 V~
400 m
CLLIONLC01
1
2
822
~
24 V~
Fig. 40 Power supply of field devices via a separate
transformer
Cabling Field Devices
Cable Routing
Route low-voltage signal and output cables separately from
mains cables.
Cable Minimum distance
Shielded 10 mm (0.4 in.)
Unshielded 100 mm (4 in.)
Table 25 Minimum distances to power mains cables
All low-voltage signal and output cables should be regarded
as communication circuits in accordance with VDE 0100
and VDE 0800 (or NEC or other equivalent).
Cable Shielding
• If the general guidelines for cable routing are observed, it
is not necessary to shield field device signal and power
supply cables.
• If, for whatever reason, the routing guidelines cannot be
observed, the field device signal and power supply
cables must be shielded.
– Shielding of cables leading to field devices must be
grounded only at the cabinet end.
– The shield must not be terminated at the CLLIONLC01
Controller Module.
