Accessing the Camera

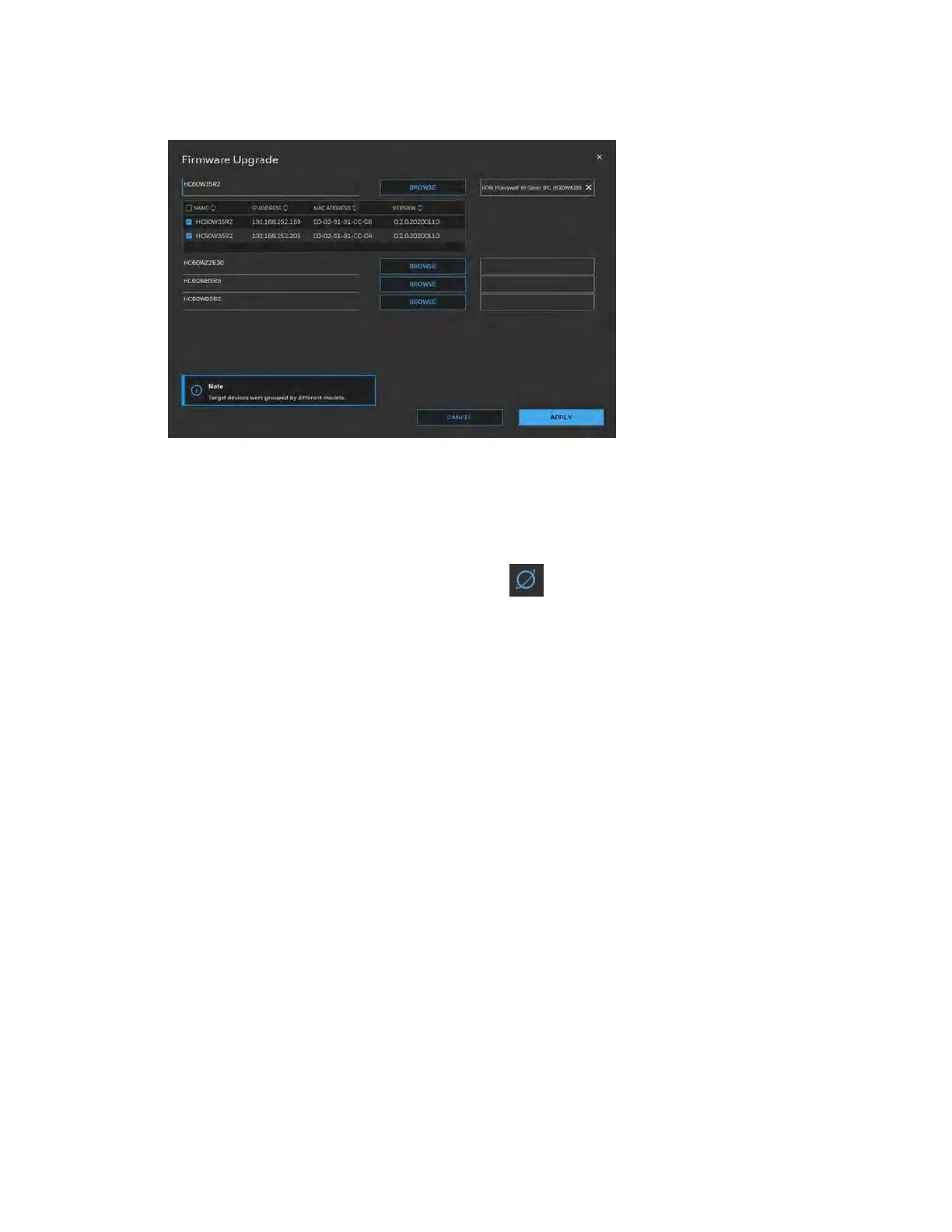

Figure 2-9 Firmware Upgrade 2

3. Click APPLY. You can check the progress status in the device list.

Accessing the Camera from a Web Browser

To access the camera from a web browser, click next to the IP address of the device as

shown in Figure 2-6.
