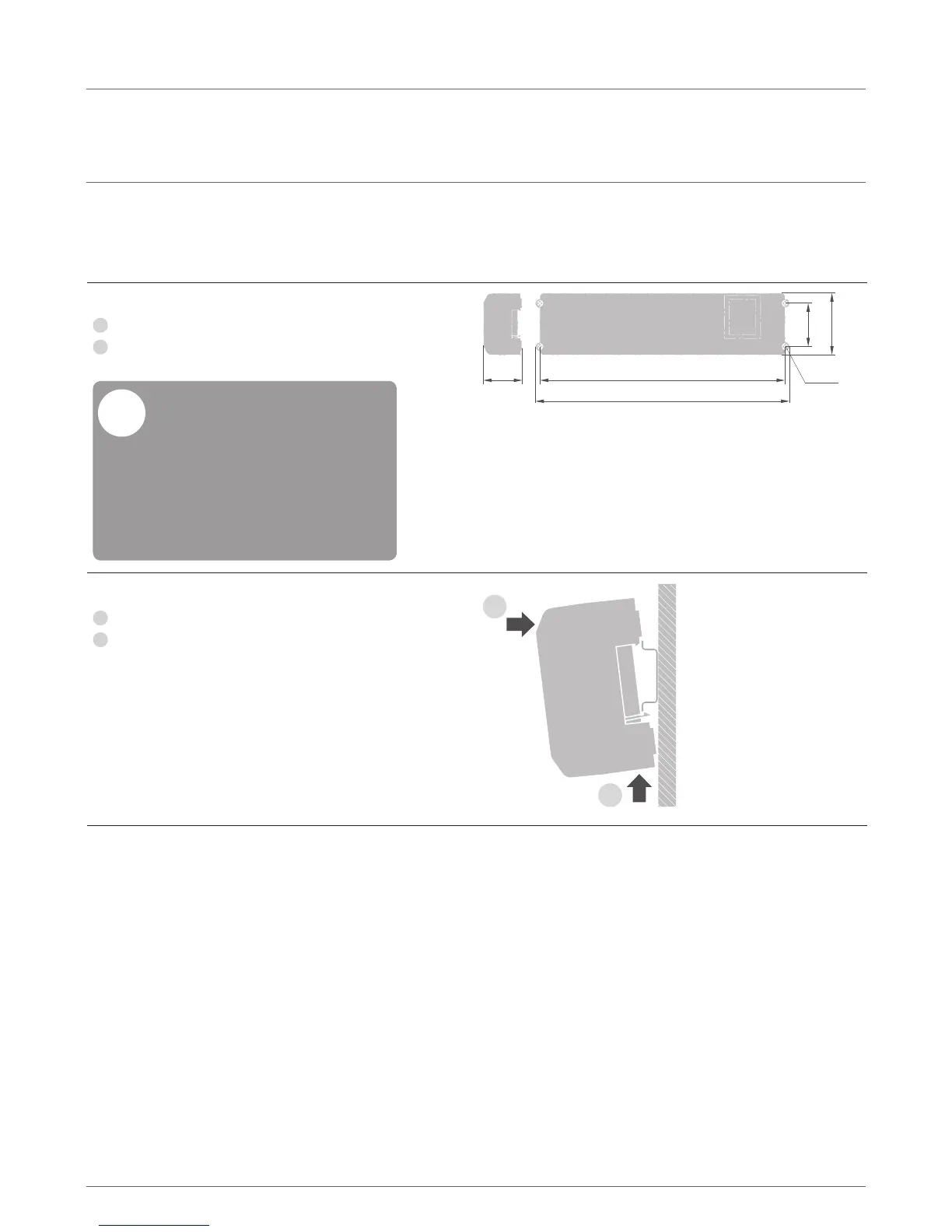

HCE80(R) / HCC80(R) Mounting and operation
9
The underfloor heating controller can be installed within or outside the distributor box.
4 4.2-mm holes for installation are located on the underfloor heating controller.
Wall installation
1
Mark, drill and insert plugs into fastening holes.
2
Screw on the underfloor heating controller.
Take the 52 mm installation
height of the underoor heating
controller into account!
If the underoor heating controller is
installed upright on edge, the transformer
must be on top to ensure ventilation.
!
57
337
85
349.5
52. 0
Æ 4.2
DIN rail installation
1
Place the housing on the DIN rail from below (1).
2
Press the housing upwards until
it snaps into place(2).
2
1
Installing the underfloor heating controller
