Installation Guide
69-2036EFS—07 6

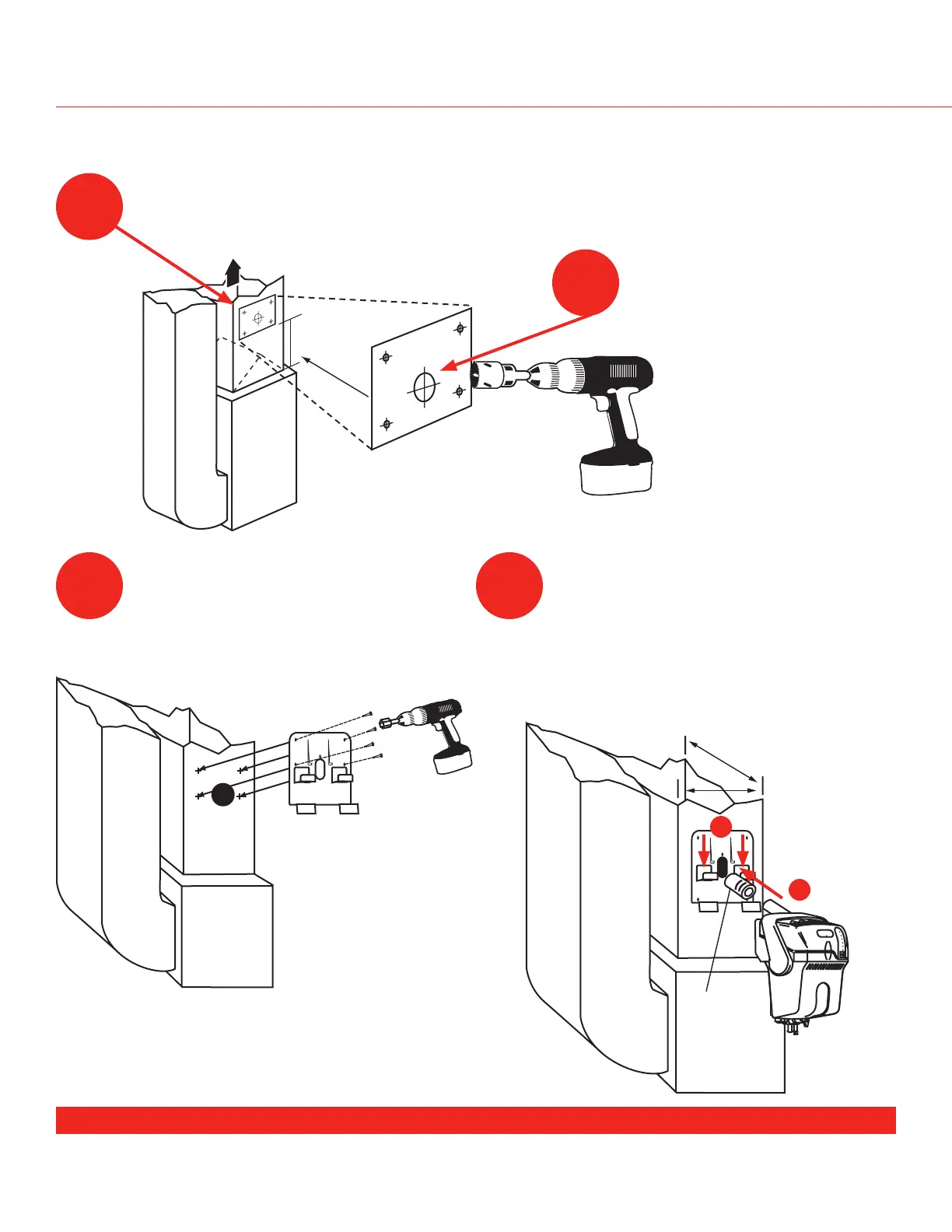

duCT mounT InsTallaTIon
A) Slide foam gasket over nozzle and
insert the nozzle into duct hole
(pictured).
B) Push down to secure humidifier to
bracket arms. Ensure gasket forms
tight seal in duct hole.
Secure bracket to duct using #8
self-drilling sheet metal screws (4).
5 6
Proceed to page 13 for plumbing and wiring instructions.
A
B
Foam
gasket
4
Drill 1-3/4-in. hole.
Position template sticker on supply duct. For tall coils that do not have this
clearance available, refer to remote mounting instructions.
3
Allow 3 in. clear-
ance from nozzle
outlet to duct wall.
To Next Page
