TrueSTEAM Humidification System
69-2036EFS—07
safeTy PReCauTIons

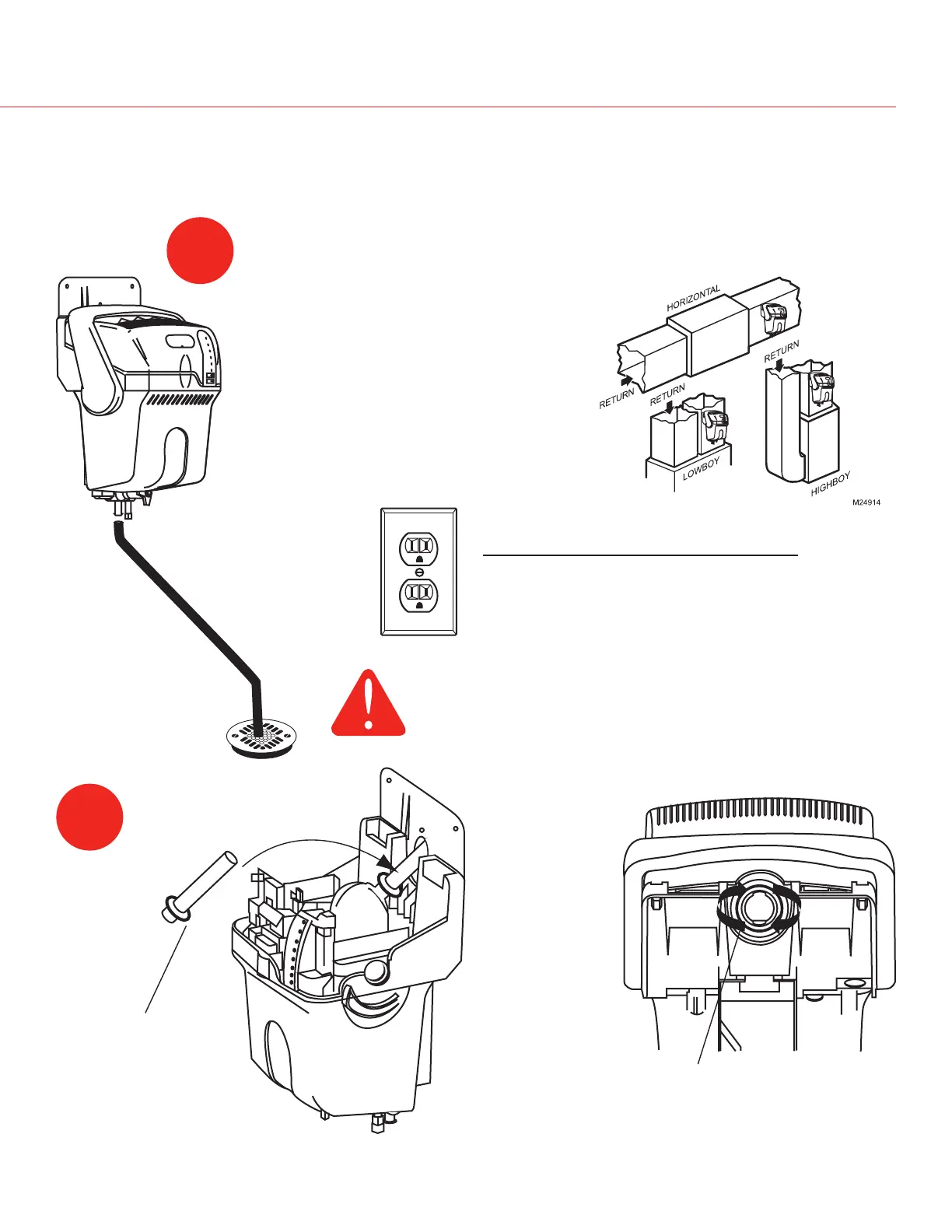

duCT mounT InsTallaTIon
Choose a location that has access to a:
• Drain allowing a slope of 1/4 in.
per foot of drain hose.
• Cold water line.
• Electrical circuit rated to your
humidifier.
• Vertical surface with adequate
clearances.
1
Model
Required Minimum
Circuit Capacity
HM506 7 Amps
HM509 10 Amps
HM512 12 Amps
Install duct nozzle.
2
Ensure o-ring gasket
is properly seated in
the groove.
Insert nozzle and twist clock-
wise to ensure tight seal of
nozzle to TrueSTEAM.
Continuous
downslope
If installing the humidifier directly to the supply duct, follow steps on pages 5–6 and 13–18.
If mounting remote from the duct, follow steps on pages 7–18.
Draining water
may be hot.
Ensure drain out-
let not exposed.
CAUTION
Hot water temperature above 120°F (49°C)
can cause burns from scalding.
To Next Page
