Honeywell HW4CEDVWW0 - Installation Steps

4
Installation Steps:
The Exhaust Hose and Window Bracket Panel Adapter are pre-assembled inside the package.
The Exhaust Hose and Exhaust Hose Connector require assembly.
Please follow the below steps:

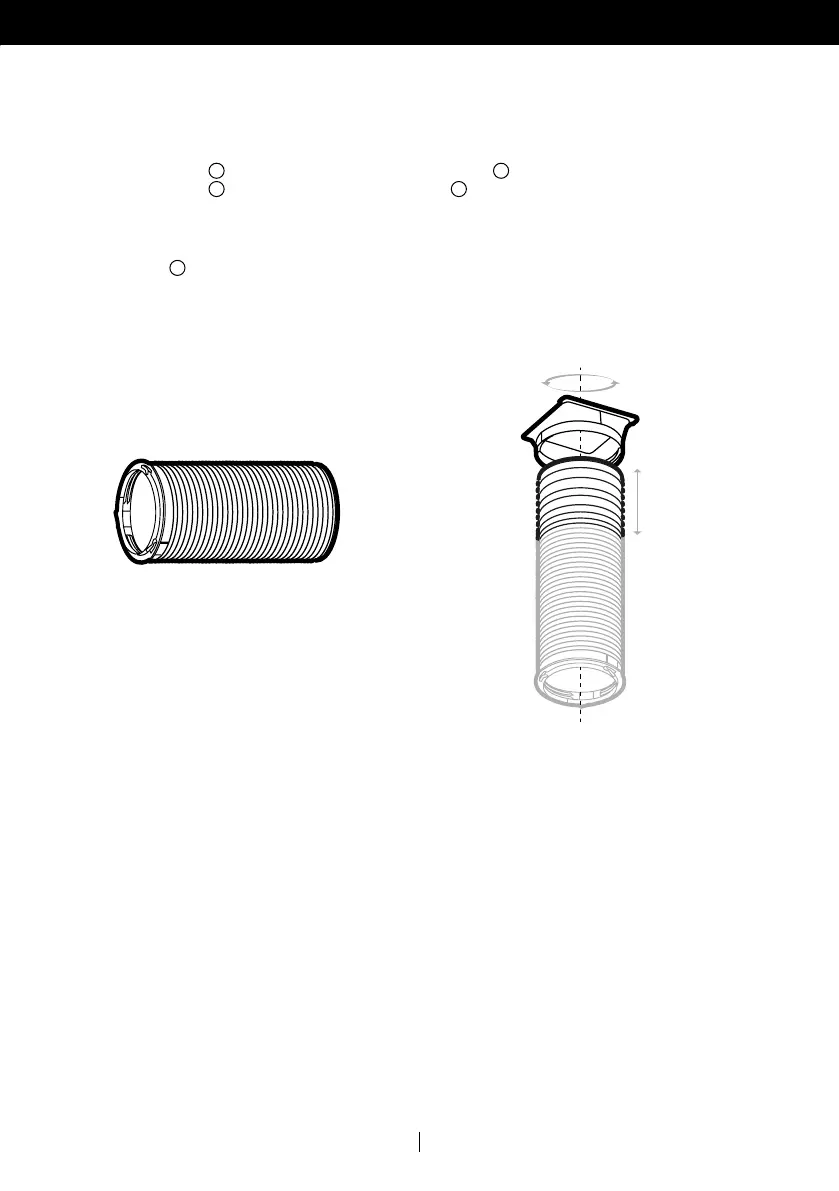

Expand the unassembled end of the Exhaust Hoses 4" to 8", then carefully thread the Hose
Connector
3
onto the Hose.
Rotate the Hose connector counter clockwise for 3 or 4 turns, or until Hose Connector is
secured tightly onto the Hose.
1.
2.
INSTALLATION (CONTINUED)
Exhaust Hose:
Length: 12" to 47" (30 cm to 120 cm)
EN
5
5 3
2
4" to 8"
(10 cm to 20 cm)
