ALTERNATOR
9-6 www.honeywellgenerators.com Honeywell Portable Electrical Generator Service Manual

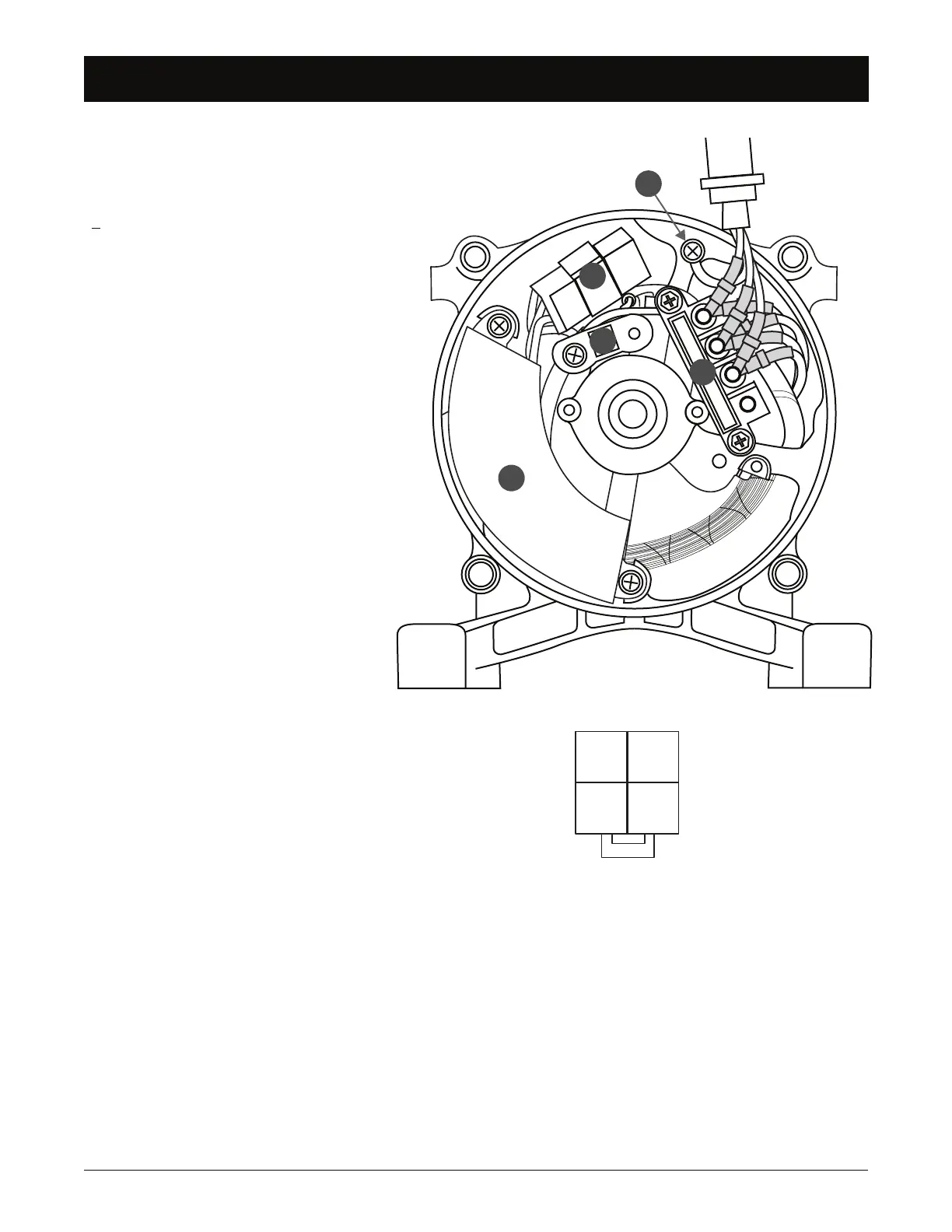

A—GROUND CABLE
B—VOLTAGE REGULATOR
Voltage can be adjusted via potentiometer
on rear of voltage regulator (120/240 volts
+
5%).
Replace voltage regulator if adjustment
does not correct the problem.
C—EXCITER WINDING CONNECTOR
Resistance Specifications*: 1.0-1.5 :
Using an ohmmeter, measure resistance
between the two blue wires. If specified
resistance is not obtained, replace alterna-
tor.
* The alternator must be at room tempera-
ture when resistance is measured.
E
D
C
A
B
Blue
Blue
Green
White
