WHEEL, LEG, & HANDLE ASSEMBLY

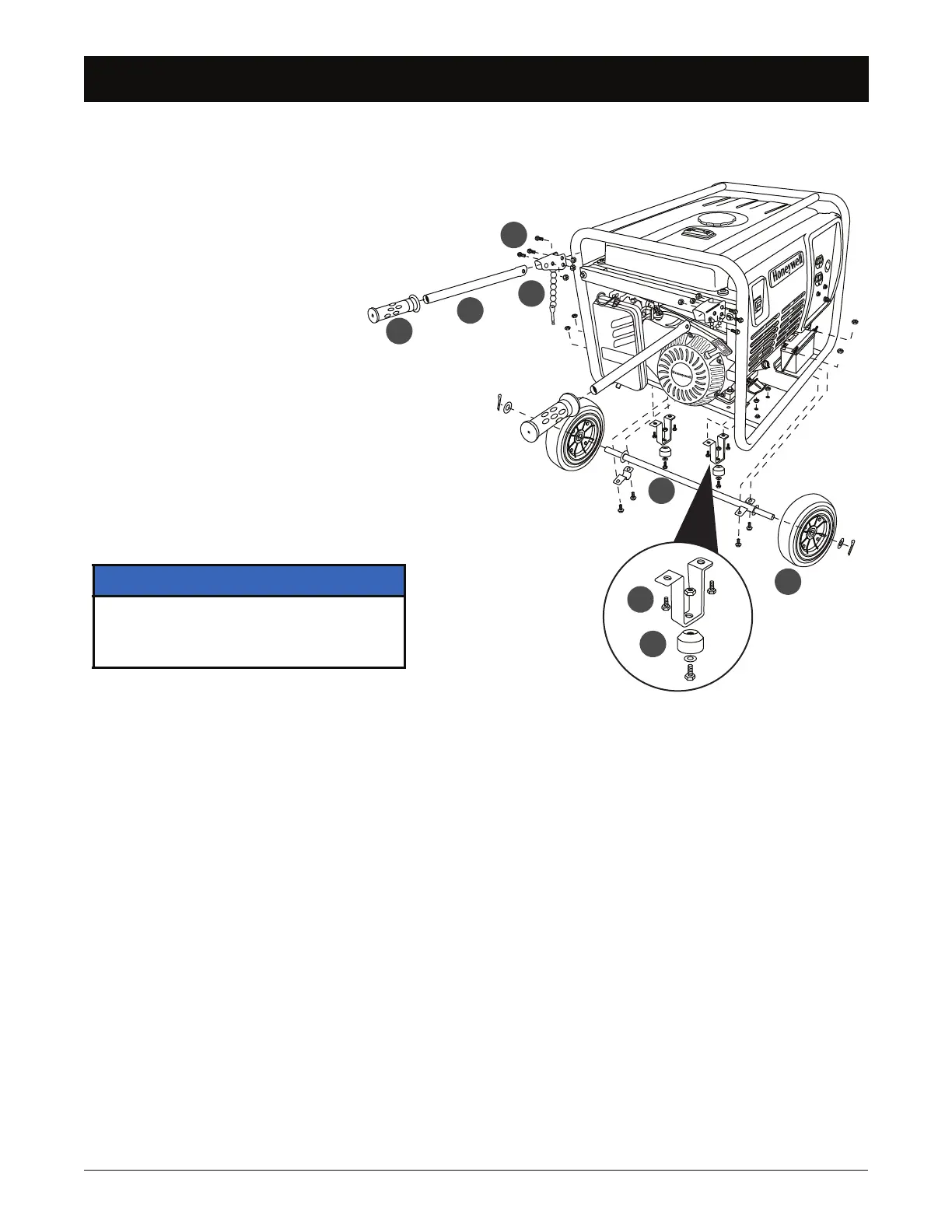

9.7 WHEEL, LEG, & HANDLE ASSEMBLY
A—WHEEL HANDLE PIVOT BRACKET
10 N•m (7 lb. ft.)
B—PIN AND CHAIN
C—HANDLE BAR
D—RUBBER HANDLE GRIP
E—AXLE
25 N•m (18 lb. ft.)
F—SUPPORT LEG
25 N•m (18 lb. ft.)
G—RUBBER STOPPER
25 N•m (18 lb. ft.)
H—WHEEL
B
C
D
A
E
F
G
H
NOTICE
• Wheel kit is intended to be used specifically
with this generator.
• NEVER use wheel kit for any other purpose.
• NEVER use wheel kit on-road.
