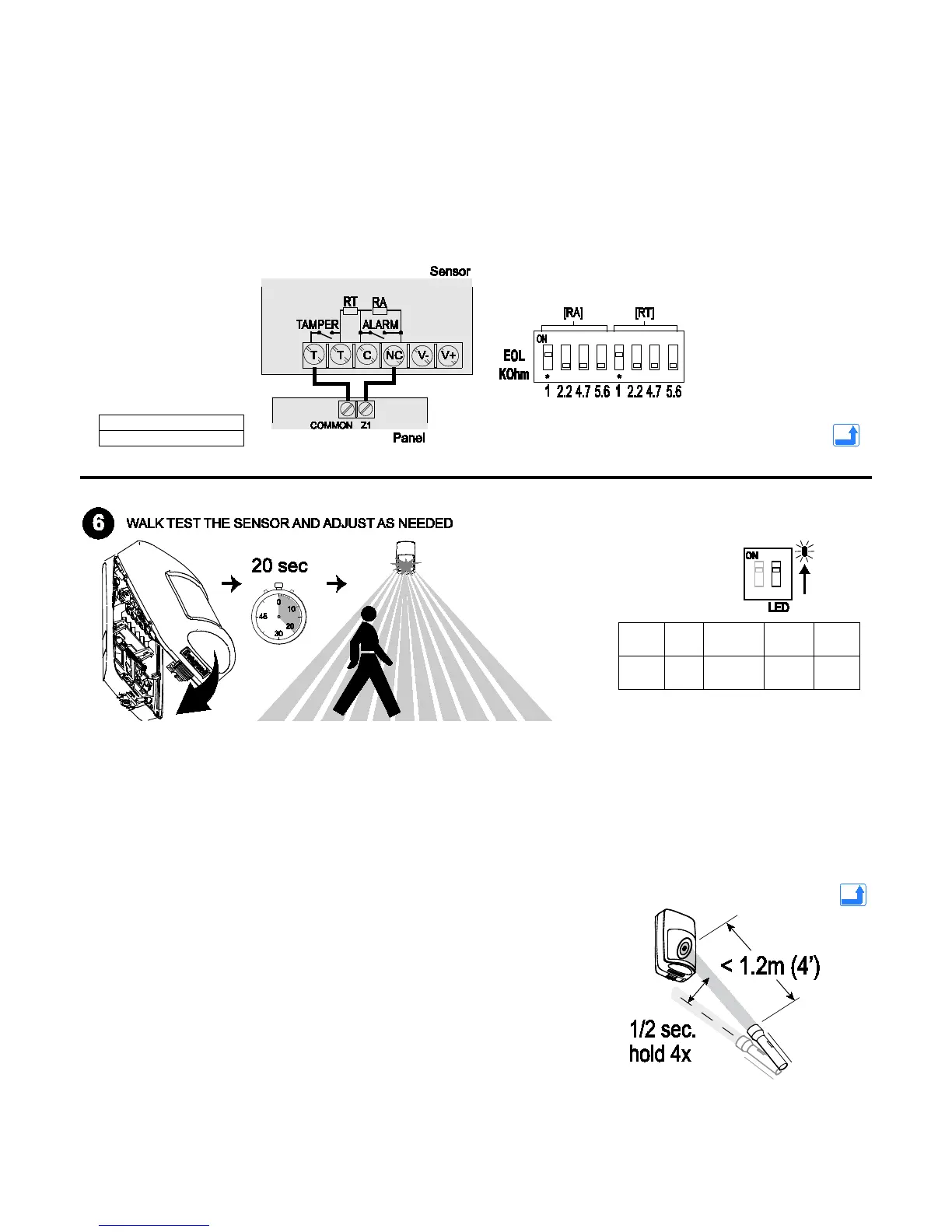

WIRING DETAILS
- Observe proper polarity.
- If not using the integrated EOL resistors, set all switches to OFF.
- If using the integrated EOL resistors:
1. Connect the sensor to the panel (see wiring diagrams below).
2. Set the appropriate tamper, alarm and tamper DIP switches
to ON (see Step 4 on page 2).
Notes:
- Consult the Control Panel manual to determine
proper EOL selection.
- The Alarm and Tamper EOL settings must each
only have one switch ON.
- The EOL values should be set at the same time.
Wiring Example
Alarm and Tamper
configured to one
loop.
Flashlight Feature:
1. Use a flashlight with a bright light beam, and stand within 1.2 m (4’) of the
sensor.
2. Swing the light beam past the sensor IR window 3-5 times, holding the
beam on the window for 0.5 second each pass.
The flashlight feature is only available for the first 24 hours after the first
power up.
1. Close the sensor and apply power to the sensor. Initialization is complete when the LED stops flashing slowly
(about 20 seconds).
2. Walk through the detection area and observe the LED.
Walk test mode is active for 10 minutes, then automatically exits test mode, disables the LED and enters normal
operation mode. For an additional 10 minute walk test, enable walk test mode again with the flashlight feature.
Note: During power up and walk test modes the LED is active regardless of the LED Enable/Disable DIP switch setting.
RA = Alarm EOL resistor
RT = Tamper EOL resistor
LED
Power
Up
Walk Test
[10 min.]
Normal Trouble
Red
Slow
Blink
ON
Alarm
ON
Alarm
Fast
Blink
