Honeywell IS3016 User Manual

RELAY OPERATION
SENSOR STATUS
Normal
Intrusion
Trouble
1
Alarm Relay
Closed
Open
Open
1
For information on Trouble conditions, see the Troubleshooting section.
TROUBLESHOOTING
TROUBLE*
NORMAL
Self-Test Failure
1
Alarm Relay
Closed
Open
Red LED
Off
Flashing
*TROUBLE CONDITIONS:
1
Self-Test Failure conditions:
• PIR self-test failure: The sensor is disabled.
• Temperature compensation failure: The temperature compensation is
disabled.
Depending on the Trouble condition, take the following corrective actions:
• Verify the power supply is sufficient (at least 9V at the sensor).
• Cycle power to the sensor.
• Walk test the sensor.
If the Trouble condition does not clear, replace the sensor.
SPECIFICATIONS
Range: 16 m x 22 m
Power: 9.0 - 15 VDC; 7 mA typical, 11 mA maximum, 12 VDC;
AC Ripple: 3 V peak-to-peak at nominal 12 VDC
Alarm Relay: Energized Form A; 30 mA, 25 VDC, 22 Ohms resistance
maximum. Alarm Relay Duration: 3 seconds
Trouble Relay: Energized Form B; (NC) 30 mA, 25 VDC; 22 Ohms
resistance maximum
Tampers: Cover; (NC with cover installed) Form A;
30 mA, 25 VDC; Magnetic field
RFI Immunity: 15 V/m, 80 MHz – 2.7 GHz
PIR White Light Immunity: 10,000 Lux typical
Fluorescent light filter: 50 Hz / 60 Hz.
Operating Temperature: -10° to 55° C
Relative Humidity: 5 to 95%; non-condensing
Temperature Compensation: Advanced Dual Slope
Dimensions: 9.8 cm H x 5.7 cm W x 4.35 cm D
Weight: 80 g (net weight)
ACCESSORIES
SMB-10
(P/N 0-000-110-01)
Swivel Mount Bracket
SMB-10C
(P/N 0-000-111-01)
Swivel Mount Ceiling Bracket
SMB-10T
(P/N 0-000-155-01)
Swivel Mount Bracket w/Tamper
Note : The accessories are not covered by certifications.
APPROVAL LISTINGS
EN50131-2-2:2008, Security Grade 2,
Environmental Class II.
Suitable for connection to an EN 60950 Class II
Limited Power Source.
Note: In EN 50131-2-2 compliant installations, mount the sensor at 2.3m,
enable look down and lock the sensor housing with the cover lock (see
“[EN]” where noted in Steps 1-4).
IMPORTANT: The sensor should be tested at least once each year.
NF&A2P 2 boucliers (référentiel NF324-H58)
et conforme aux normes EN50131-2-2 et
RTC50131-2-2; IP30 IK04
N° de certificat: 2821420019
Organisme de certification:
CNPP Cert. : www.cnpp.com et
AFNOR Cert.: www.marque-nf.com
PD6662:2010
Honeywell Security Group - BP1219
1198 avenue du docteur Maurice Donat
Sophia Antipolis
06254 Mougins Cedex
TEL: +33.4.92.94.29.50
FAX: +33.4.92.94.29.60
INCERT B-893-0015
LARMKLASS 2
Corrente norminale: 12 =
Corrente massima
assorbita: 11 mA
For any additional information, please refer to our Website:
http://www.honeywell.com/security/emea/hscdownload
Or contact:
Honeywell Security Group
Newhouse Industrial Estate
Motherwell
Lanarkshire ML1 5SB
United Kingdom
Please contact your local authorised Honeywell representative for
product warranty information.
 2013 Honeywell International Inc. Honeywell and DUAL TEC are registered trademarks of Honeywell International Inc.
All other trademarks are the properties of their respective owners. All rights reserved.

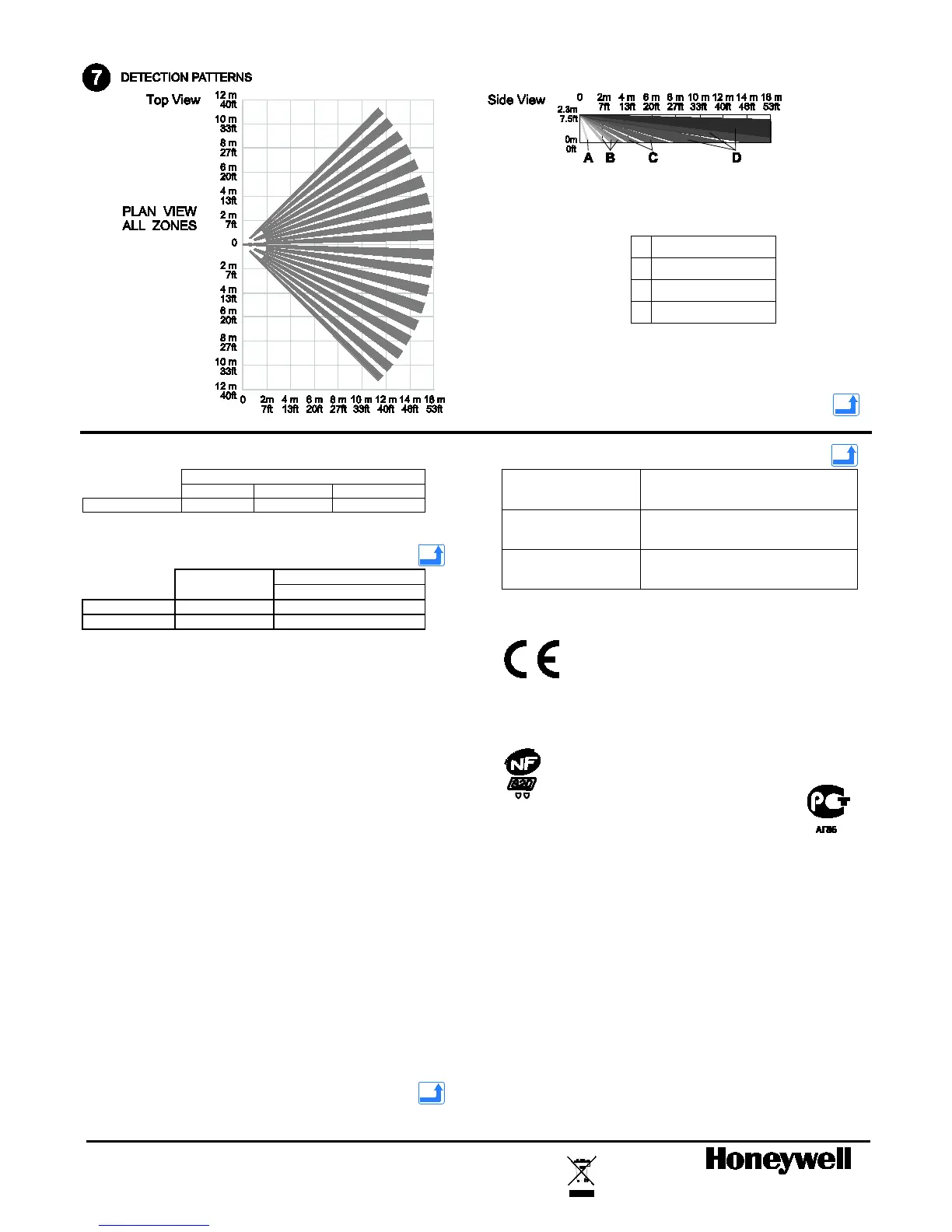

Zones
A
2 Look-down
B
18 Lower
C
20
Intermediate
D
54
Long
Tel: +44(0)1698 738200
Email: UK64Sales@Honeywell.com
P/N 800-16904 Rev A
www.honeywell.com/security

Honeywell IS3016 Specifications

General

Brand	Honeywell
Model	IS3016
Category	Accessories
Language	English
