LYNX Touch Installation and Setup Guide
- 23 -
Mechanics of Programming
General Programming Information
When power cycling the control, remove AC power first and wait approximately 1 minute before
disconnecting battery.
Programming options are stored in non-removable, electrically erasable, nonvolatile EEROM memory. The
system can be programmed at any time, even at the installer's premises prior to the actual installation.
Simply apply power temporarily to the Control and then program the unit as desired.
The “Initiate Download” button is used to initiate remote programming using an IBM PC compatible
Personal Computer, and Compass Downloader and modem (L5200 only) or via capable GSM or IP
communications modules (L5200 and L7000). See the Remote Programming/Control (Downloading) section
for additional information.
Programming
If the system is Armed or in Alarm, the Tools icon will not be functional. The system must first
be disarmed.

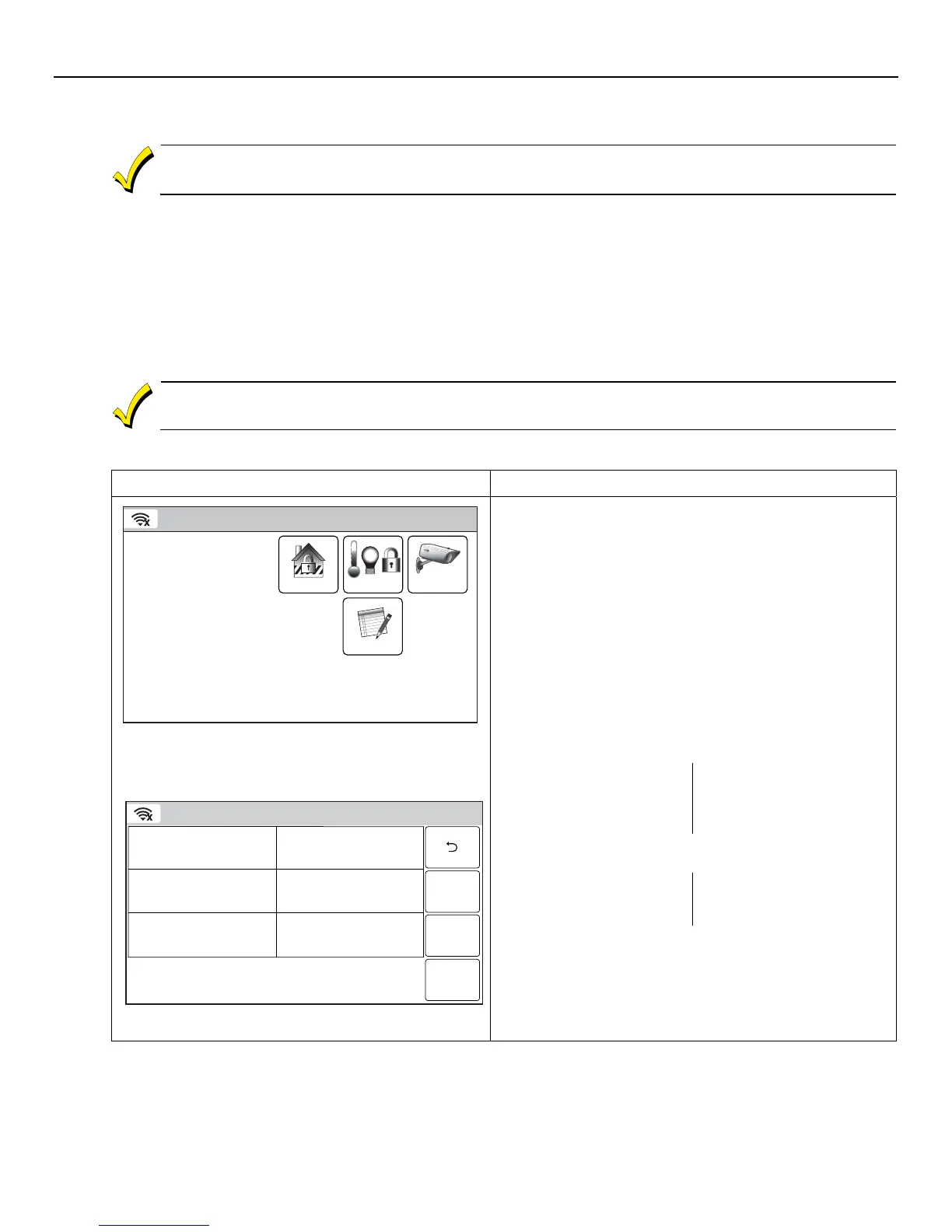

Enter Installer Programming Mode
SCREEN ACTION
7000-100-011-V0
000 1:
January, 1, 2011
Video
Security
Automation
System Standby!
Notices
System Standby Screen
System Programming...
5200-100-092-V0
TestProgram
Events
Schedules
Initiate
Downloads
Rules
Installer Tools Menu Screen
1. Power-up the control and allow it to “boot-up”. “System
Standby” is displayed on the touch screen. When the
“boot-up” is complete (approximately 1-2 minutes) “Ready
to Arm” is displayed.
2. Select the “Security” icon.
3. Select the “More” tab on the first page of the Security
Screen.
3. Select “Tools” icon.
4. Enter the Installer Code 4112 on the displayed keypad.
5. The Installer Tools menu screen appears. Select the
“Program” button. “System Programming…” is displayed
and on the L5200, the “Armed” and “Ready” LEDs (L5200)
flash. On the L7000 the “Panic” button is lit and the
“Home” button alternately flashes red and green.
6. Select one of the following options:
Installer Code
Date Time
Zones
Keys
System Type
Communicator
Comm. Diagnostics
Reporter
Use the down  arrow to scroll to the next page of
options.
Sounder
Default Config.
Reset Master Code
System Settings
Language*
Z-Wave
7. The system advances to the Programming screen of the
selected option.
* This programming field may not be available with the system
being installed.
