System Operation
System Displays

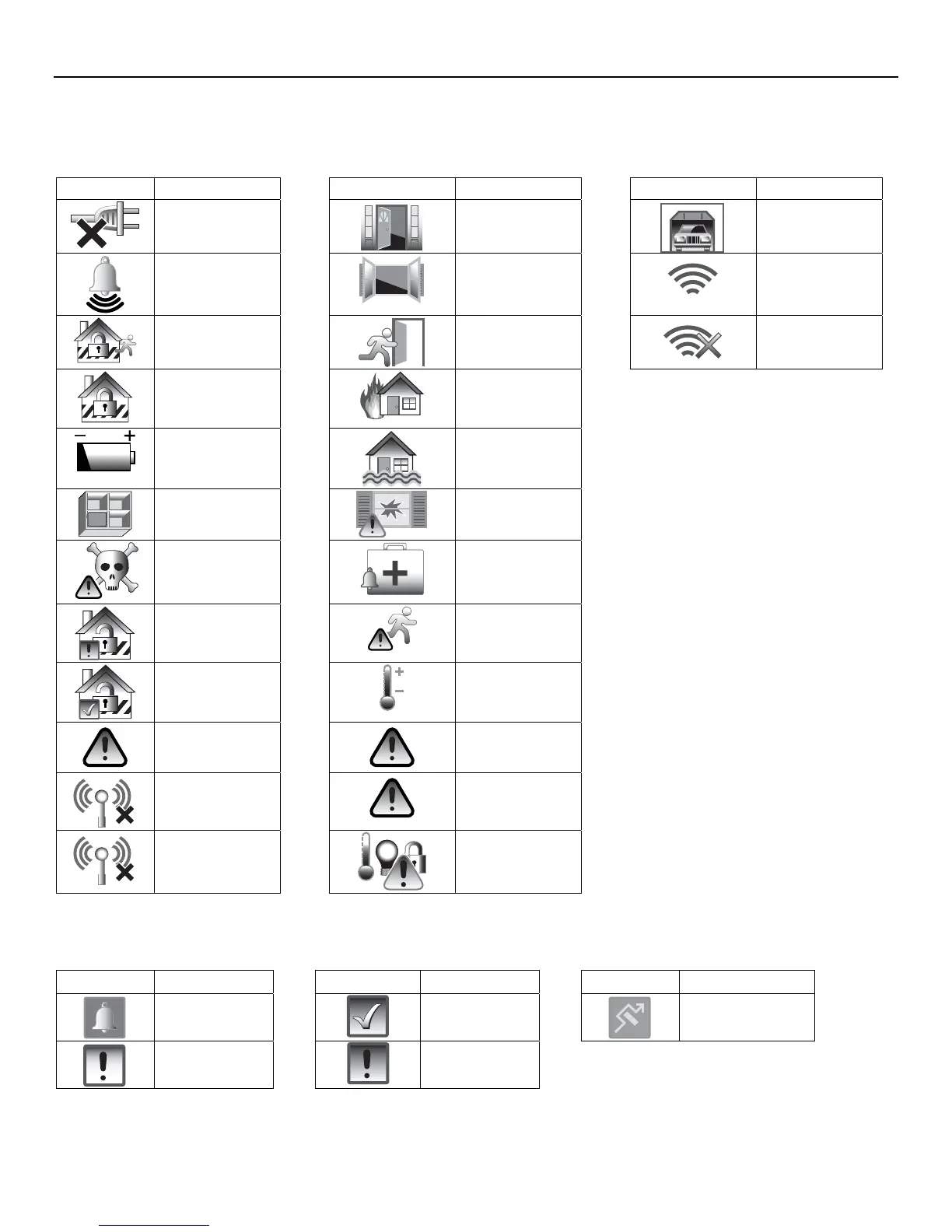

The following icons will be displayed on the Home screen along with specific zone status information
(if applicable) to indicate system status.
DISPLAY
DEFINITION
DISPLAY
DEFINITION
DISPLAY DEFINITION
AC Loss
Door Open
Fault *
Garage Door
Alarm
(intrusion)
Window Open
WiFi source
present and
signal strength
Armed Away Exit Active
No WiFi source
Armed Stay
Fire
OR
Heat Sensor
Battery Low
Flood
Check Zones
Glass Break
CO Alarm
Medical Alarm
Disarmed Not
Ready to Arm
Motion
Disarmed
Ready to Arm
Temperature
90 RF Jam
Cover
Tamper
94 Phone
Line Cut
Reporter
Failure
103 Comm.
Trouble
Automation
(Z-Wave Node
Failure)
Zone Status Displays
The following icons will be displayed on the Zone Status screen along with specific zone status information
when a zone has been Faulted, Bypassed or in Alarm.
DISPLAY
DEFINITION
DISPLAY DEFINITION DISPLAY
DEFINITION
Alarm
Ready Bypass
Fault (Yellow)
Trouble (red)
