32 Installation Instructions MB-Secure 1000/2000/3000/4000/5000/6000

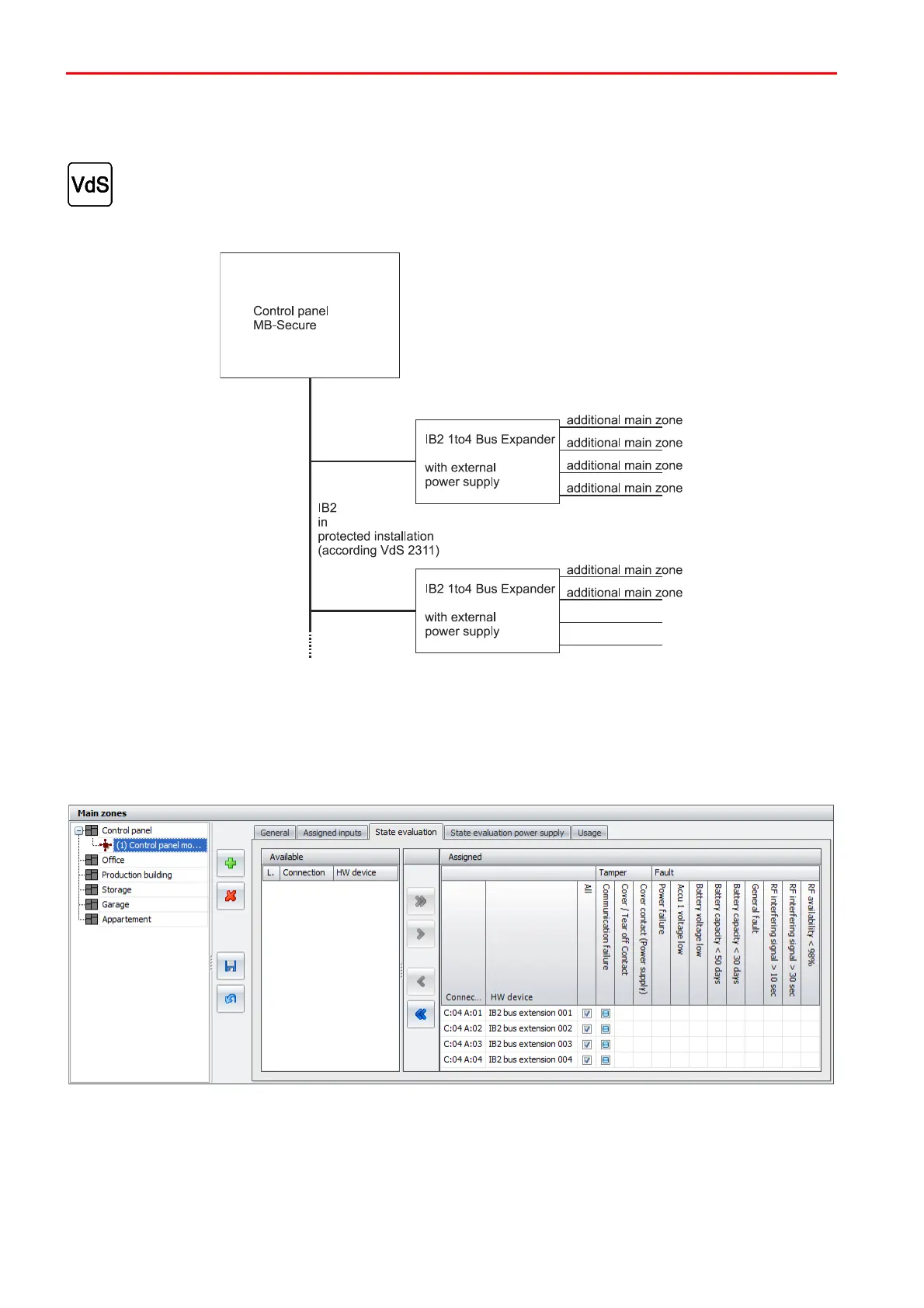

3.12 Main zone extension via IB2 in remote housing (as per VdS)
In accordance with the VdS guideline, when an IB2 BUS extension is used in a remote housing, the
installation of the IB2 to the expander module must be implemented in protected installation
(see VdS 2311)
In addition, the IB2 BUS expansion module(s) must be assigned to the "contral panel" main zone in IQ
PanelControl under the "System -> Main zones -> Main zones -> Detector groups -> Detector group X State
evaluation" tab. This is irrespective of the main zones for which the IB2 BUS extension is to be provided.
