3. Remove the slant chassis plate on the back side of the IO card chassis.
4. Lift the IO card chassis from the front side and park it on the bottom stand.
See Figure 19.
5. Unplug the USB wire from the front side of the IO card chassis.
See Figure 19.

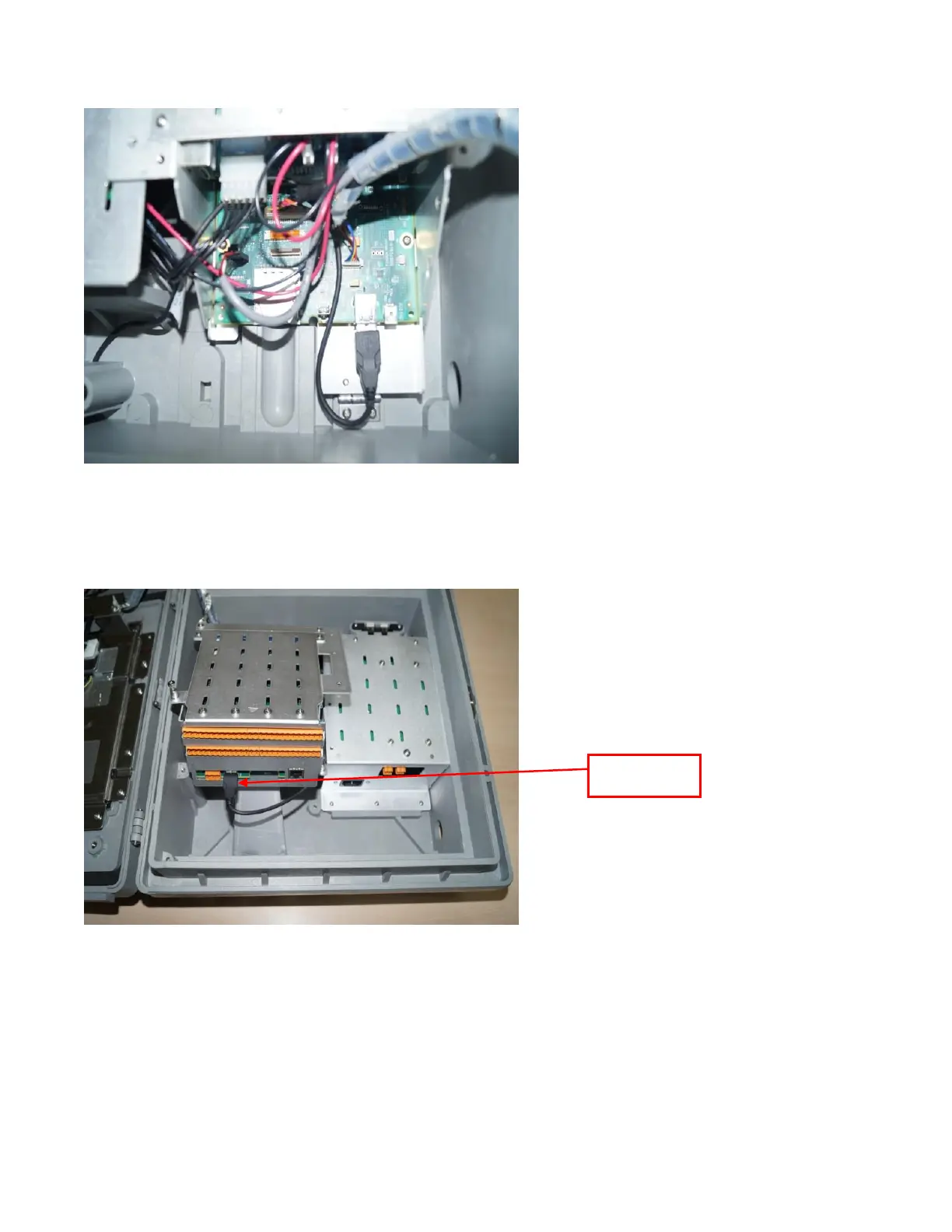

Figure 18
Cabling inside the
slant chassis plate
USB cable
Figure 19
IO Card chassis
parked on stand
