4. Connect all the cables as per the information in the above table and by using Figure 26.

5. Replace the slanted chassis plate and fit it back along with the earth braid using 2x No.4/40 screws as shown in

Figure 27.

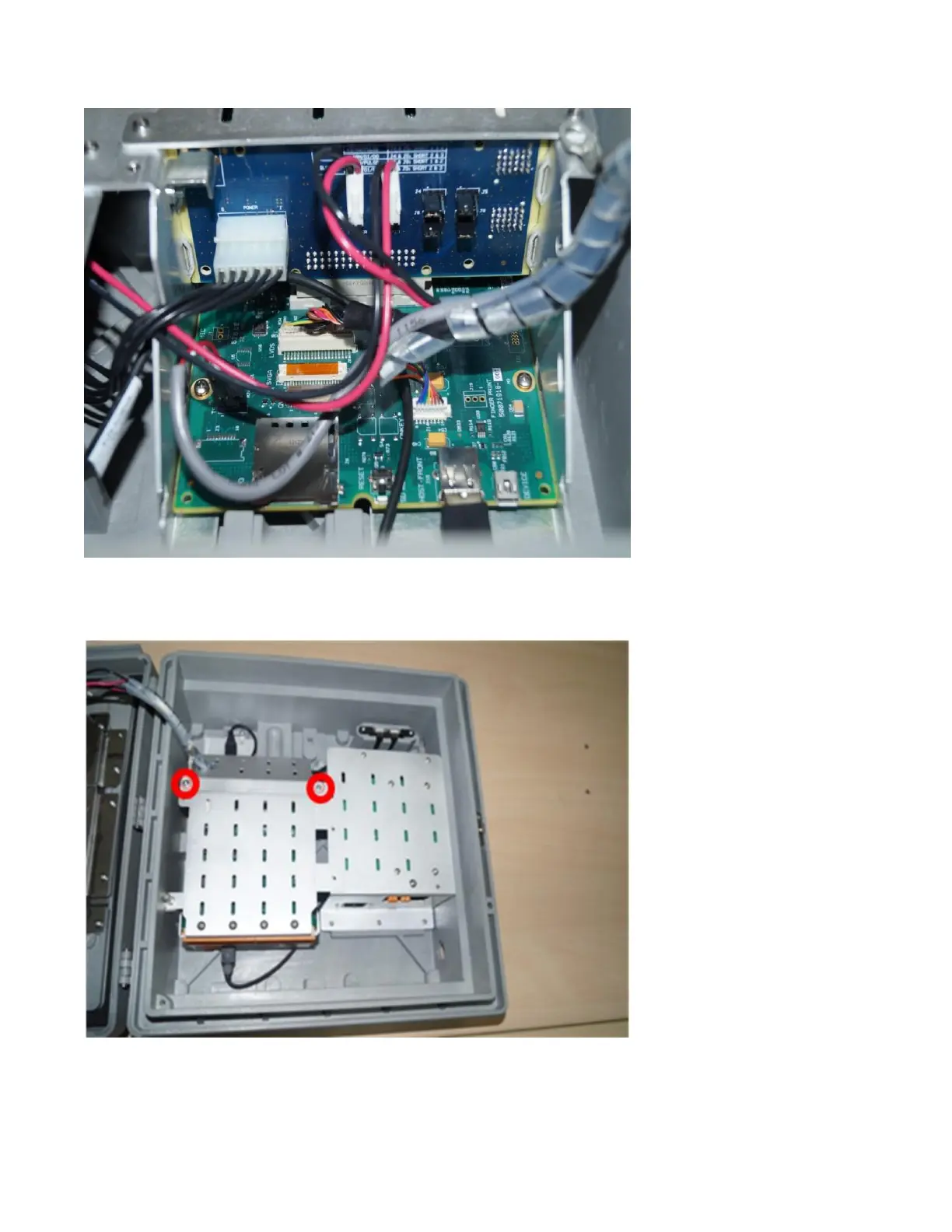

Figure 26

Cables reconnected

inside the slant

chassis plate

Figure 27

Reconnecting slant

chassis
