MK VI & MK VIII EGPWS Pilot Guide
MODE 1
Excessive
Descent
Rate
continued

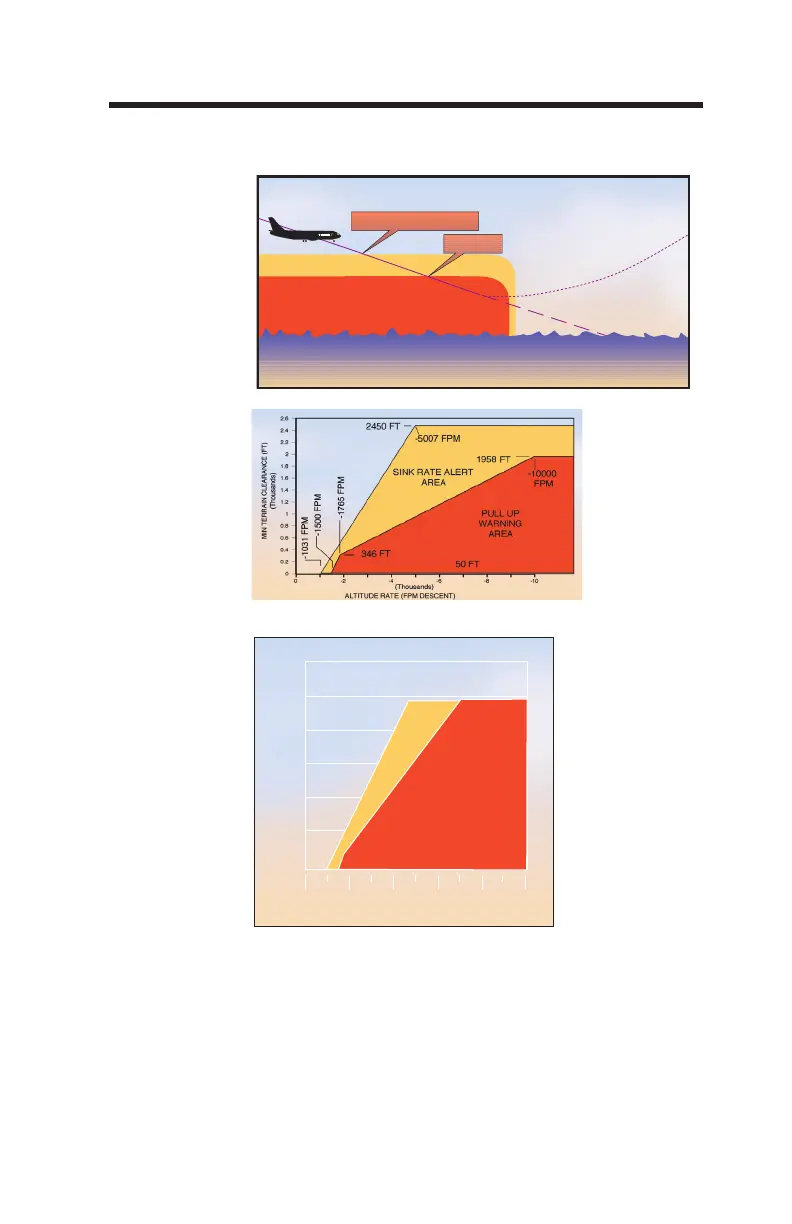

Excessive Descent Rate turboprop
Excessive Descent Rate turbofan (jet)
Penetration of the outer boundary activates the EGPWS
caution lights and “SINKRATE, SINKRATE” alert enunciation.
Additional “SINKRATE, SINKRATE ” messages will occur for
each 20% additional penetration of the outer boundary.
Penetration of the inner boundary activates the EGPWS warning
lights and changes the audio message to “PULL UP” which re-
peats continuously until the inner warning boundary is exited.
R a d i o A l t i t u d e ( F E E T )
D e s c e n t R a t e ( F E E T / M I N U T E )
3000
2500
2000
1500
1000
500
0
2000 4000 6000 8000 10000
"SINKRATE"
"PULL UP!"
0
"SINKRATE"
"PULLUP"
"SINKRATE SINKRATE"
"PULL UP"
