Honeywell MK VIII Pilot's Guide

060-4314-000 • Rev. C - May 2004
MK VI & MK VIII EGPWS Pilot Guide
51
EGPWS
Self-Test
continued
• Red warning annunciators turn off.
• Terrain test pattern is turned off.
• GPWS INOP and TERR INOP annunciators turn off.
6. Verify expected indications and enunciation’s during test, re-
peating as necessary noting any erroneous conditions.
A successful test is accomplished if all expected indications are
observed and no inoperative functions or display anomalies are
indicated or observed.
For more specific information, refer to an applicable AFM or EG
-
PWS AFMS, or contact Honeywell.
The EGPWS provides visual and/or audio alerts for detected:
• potentially dangerous terrain conditions (modes 1 – 4, TCF,
TAD),
• below glideslope conditions (mode 5),
• descent below predefined altitudes or excessive bank angle
(mode 6),
These consist of warning, caution, and advisory alerts based on
the detection alert threshold penetration.

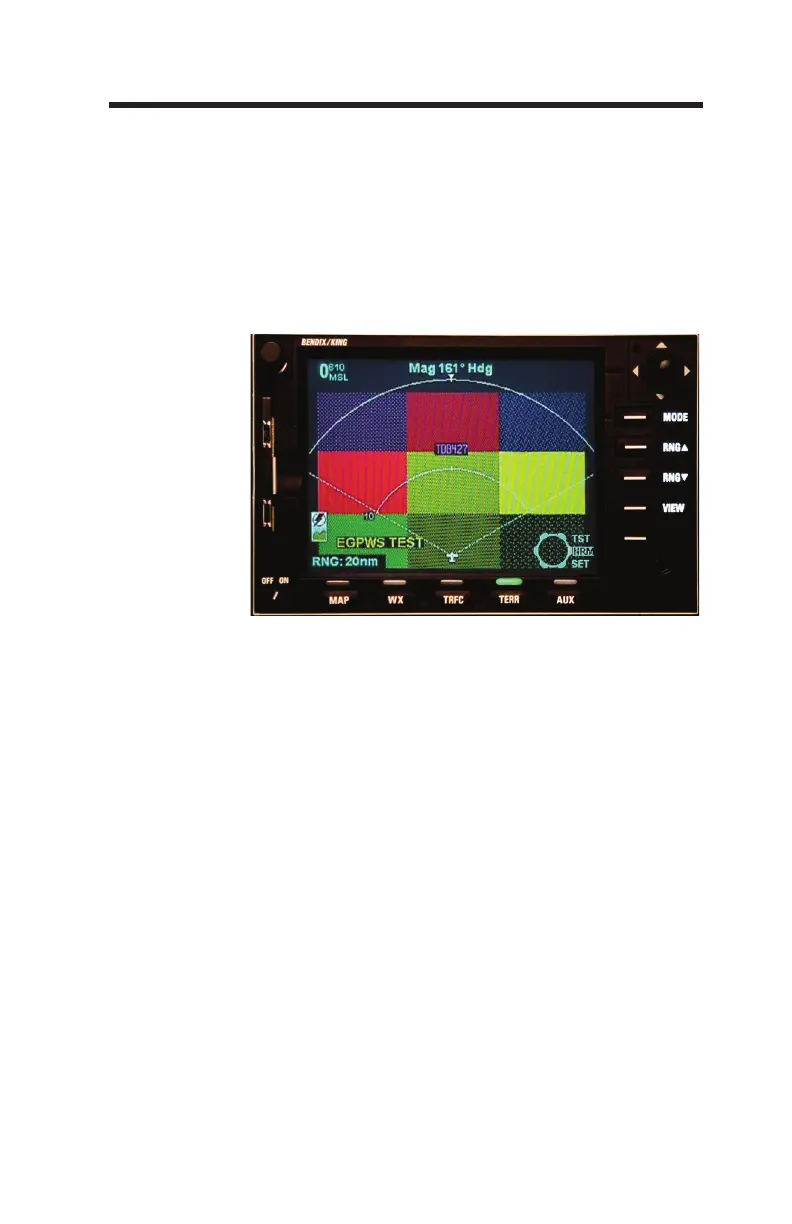

Example of a test pattern shown below. Note that if a display
is not able to display the color blue, or Peaks mode is not en-
abled, the upper right-hand corner square will be black. Also
note that "TDB XXXY" indicates the loaded Terrain Database,
where XXX is the version number (i.e. 435), and Y is region
identifier (i.e. N= Americas). TDB XXXY is shown only with
-020 and later versions.
Normal
Procedures
