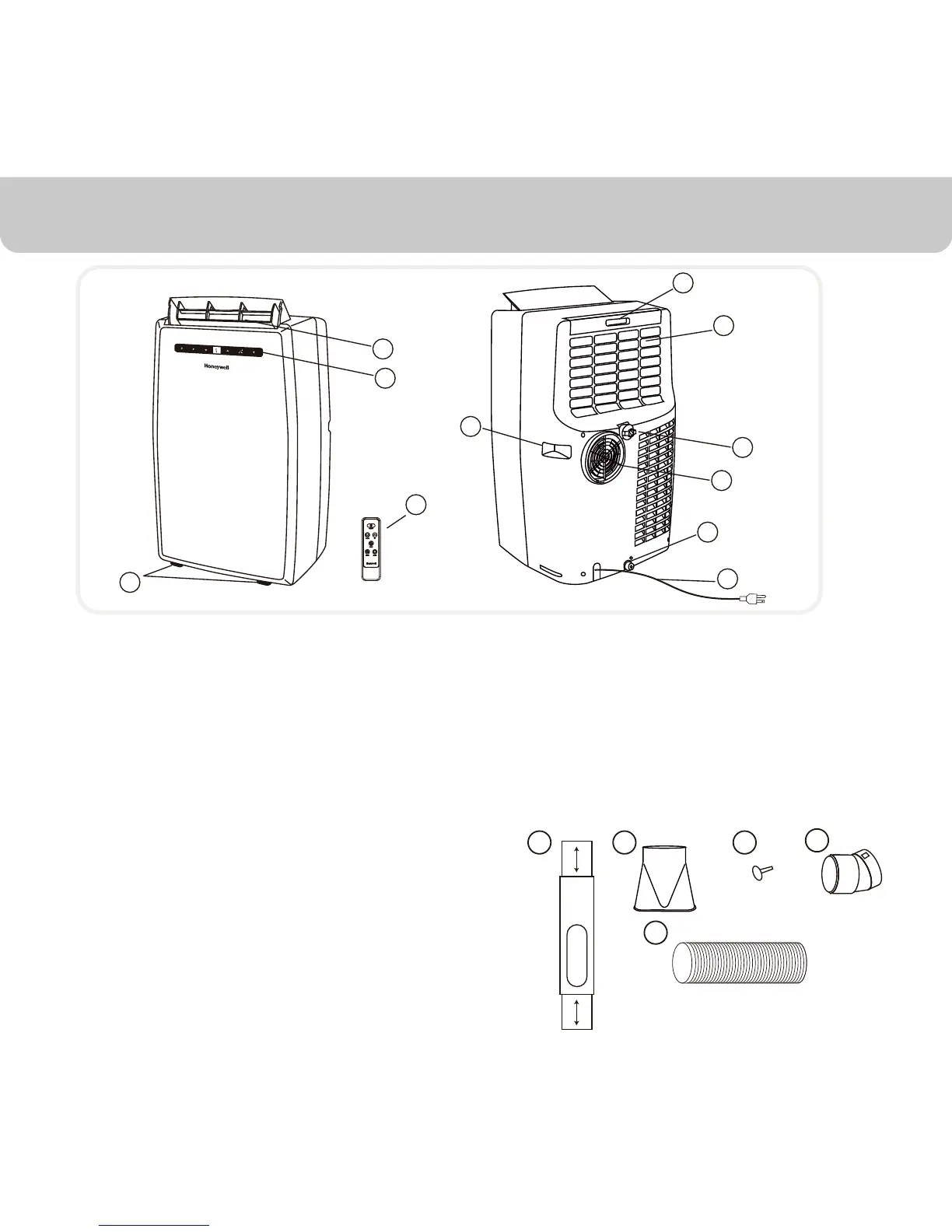

PARTS DESCRIPTION
1. Control Panel (Incl. Signal Receptor)
2. Air Outlet
3. Handle
4. Casters
5. Drain Plug (De-humidifier mode)
6. Air Filter
7. Back Grill
8. Drain Plug (Air Conditioning Mode)
9. Power Supply Cord
10. Exhaust Hose Connector
11. Remote Control
1
2
5
3
x 1
x 1
x 2
x 1
Installation Kit :
1. Window Bracket Kit.............................
2. Window Bracket Panel Adapter..........
3. Plastic Pin...........................................
4. Hose Connector..................................
5. Plastic Hose........................................
1 Set
1 Piece
2 Pieces
1 Piece
1 Piece
1
2
8
6
7
5
4
3
10
11
9
8
4
