Honeywell MS8105A1030 Installation Instructions

3 NM, 5 NM SERIES SPRING RETURN DIRECT COUPLED ACTUATORS
62-0274—07 2
Humidity Ratings:
 5% to 95% R.H., Non-Condensing
Electrical Connections:
 Field wiring 18 AWG (0.5 mm) to 14 AWG (1.5 mm)
conductors (stranded or solid) and up to 2 - 14 AWG (1.5
mm) conductors (stranded) to screw terminals, located
under the removable access cover.
Auxiliary Switch (One SPDT):
 Switch adjustable from 0-95°
 500 uA Resistive at 5 Vdc (minimum)
 250 Vac, 8 A resistive, 3 A inductive
Mounting: Self-centering shaft adapter (shaft coupling):
 Round damper shafts: 3/8 to 5/8 in. (9 to 16 mm)
 Square damper shafts: 1/4 to 1/2 in. (6 to 13 mm)
Minimum Damper Shaft Length:
 1 in. (25 mm); 3 in.(76 mm) recommended.
Spring Return Timing (at rated load):
 < 25 seconds @ -4°F to 130°F (-20°C to 55°C)
< 60 seconds @ -22°F (-30°C)
Cable Specification:
 300 V, 75° C, Plenum Rated, 3 ft length from end of access
cover, 18 AWG
Sylk™ Bus:
 Sylk is a two-wire, polarity insensitive bus that provides
communications between a Sylk-enabled actuator and a
Sylk-enabled controller. For wiring, the Sylk-enabled
actuator may be mounted up to 200 ft. (61 m) from the
controller; twisted pair wire is recommended for wire runs
longer than 100 ft. (30.5 m). Using Sylk-enabled actuators
saves I/O on the controller and is faster and cheaper to
install since the bus is polarity insensitive.

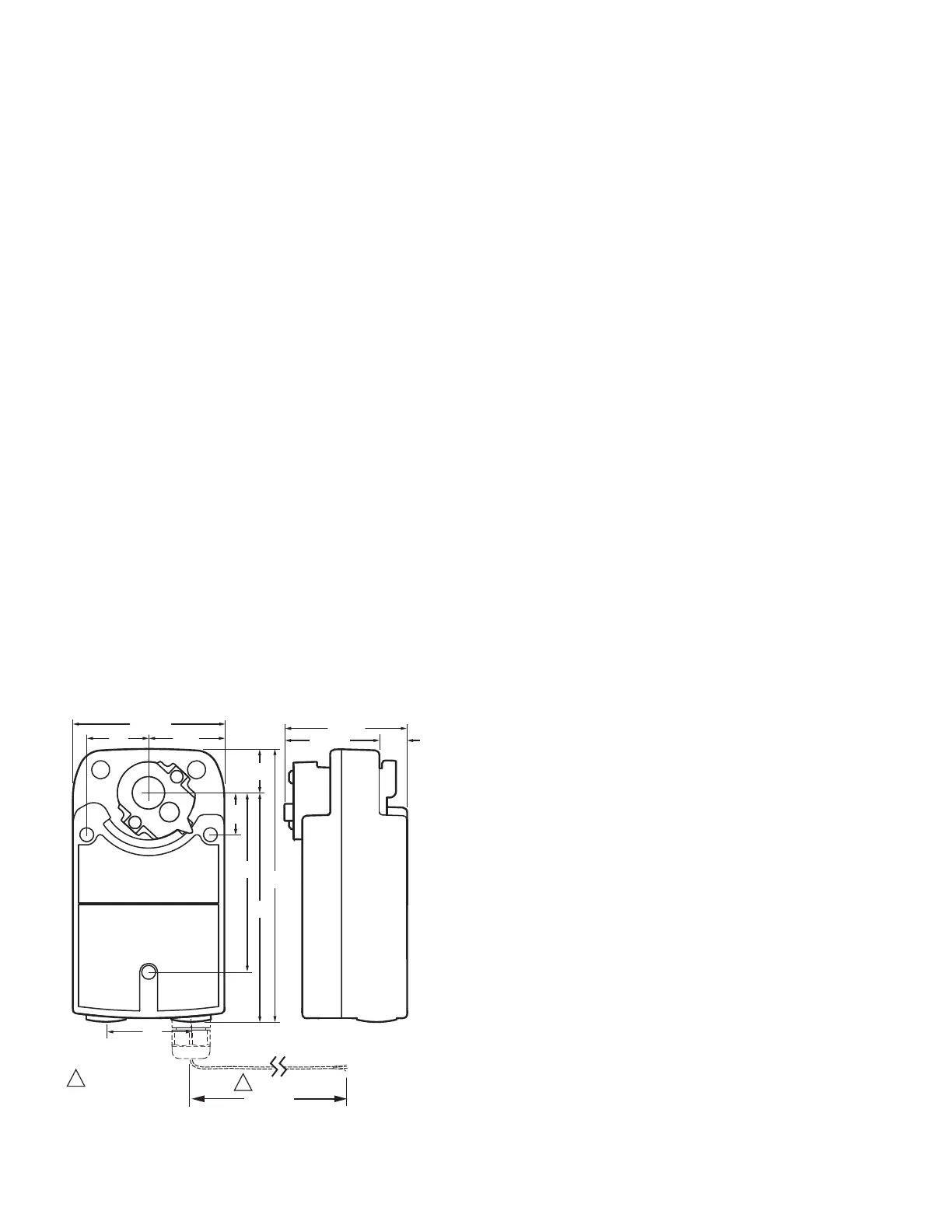

Fig. 1. Dimensional drawing of actuator in in. (mm).
Stroke:95° ±3°, mechanically limited.
Approvals:
 UL873
 IEC 60730-1 and Part 2–14
 UL1097 for Double Insulation
 CE Certification Low Voltage Directive 2006/95/EC
 CE EMC 2004/108/EC
 C-Tick N314
Enclosure Ratings:
 IP54
 NEMA 2
 Flame Resistance UL94-5VA
Input Impedance:
 95 kOhm minimum.
Feedback Signal:
 0(2)-10 Vdc, 3 mA minimum.
Analog Output Signal:
 0(2)-10 Vdc
Noise Rating at 1m (Maximum):
 Driving
 Floating/Modulating/Econ/Sylk-enabled: < 40 dB(A)
 2-Position: < 50 dB(A)
 Spring Return: < 60 dB(A)
Accessories:
 27518 Balljoint (5/16 in.)
 103598 Balljoint (1/4 in.)
 27520B, C, E, G, H, K, L, Q Pushrod (5/16 in. diameter)
 STRN-STRNRLF Water-tight Cable Gland/Strain-relief
Fitting (10 pack)
 STRN-WMK-01 Wall Mount Kit
 STRN-ECONO-01 Economizer Retrofit Kit
 STRN-CRK-01 Crank Arm Kit
 STRN-SCSA Self Centering Shaft Adapter
 STRN-CA-01 Crank Arm (Non-Self-Centering)
 STRN-CA-02 Crank Arm (Self-Centering)
 STRN-BRKT Anti-Rotation Bracket
M28945
3-55/64 (98)
6-61/64
(177)
1-1/8
(29)
5-27/32
(148)
1-9/16
(40)
3-5/32 (80)
4-9/16
(116)
1-15/16
(49)
1-1/16
(27)
2-1/64
(55)
47/64
(19)
2-27/64 (61)
36 (914)
1
1
CABLE AND STRAIN
RELIEF ON SELECT
MODELS ONLY.
