Section 2: The FDU-80 Annunciator

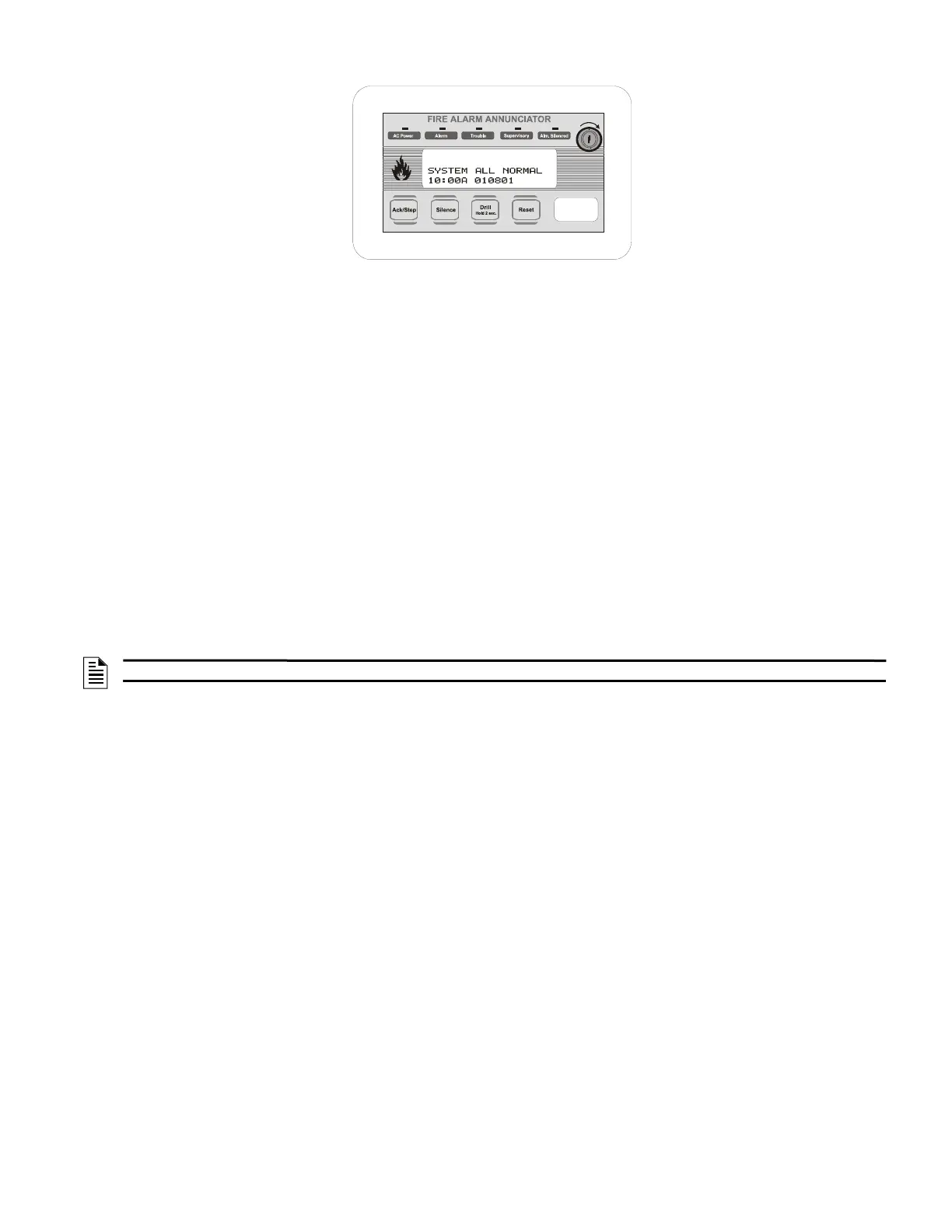

The FDU-80 Annunciator is a compact, 80-character, backlit LCD fire annunciator designed for use with compatible FACPs (Fire Alarm
Control Panels). The FDU-80 Annunciator display will mimic the FACP display.
The FDU-80 is capable of displaying English-language text of system point status including device type, independent point alarm, trou-
ble or supervisory, zone and custom alpha labels programmed into the control panel. The FDU-80 also provides system status LEDs to
display Power, Alarm, Trouble, Supervisory and Alarm Silenced conditions. The FDU-80 is capable of performing system acknowledge,
silence, drill and reset remotely.
Communication between the FACP and the FDU-80 is accomplished over a two-wire serial interface employing the EIA-485 communi-
cation standard. Up to 32 annunciators may be connected to the two-wire EIA-485 circuit. The annunciators may be powered from the
host FACP or remote UL listed, filtered, power supplies.
2.1 Compatible Panels
• NFS2-640
• NFS-320
• NFW2-100
• NFS-640
• NFW-100
• AFP-300/400
2.2 Features of the FDU-80
• 80-character LCD display (20 characters x 4 lines) is backlit under normal and alarm conditions
• System Status LEDs for AC Power (green), Alarm (red), Trouble (yellow), Supervisory (yellow) and Alarm Silenced (yellow)
• No programming necessary — duplicates messages at control panel display.
• Local piezo sounder with alarm and trouble resound
• Device type identifiers from the control panel
• Device & zone custom alpha labels from the control panel
• Time/date and device address from the control panel
• EIA-485 connects to control panel terminal port
• Plug-in terminal blocks for ease of installation and service
• DIP switches control piezo enable/disable, transmit/receive mode, FACP selection, function switches and key-switch
enable/disable.
• Up to 32 FDU-80 Annunciators per FACP
• Mounting options:
– Surface mounting in SBB-3 (2.75" depth) or three electrical boxes ganged together
– Semi-flush mounting in three-gang electrical box (P/N 10103) with a minimum depth of 2.187" or three electrical boxes ganged
together
– Can be located up to 6,000 feet (1,829 m) from the panel
• Backlight turns off during AC loss to conserve battery power but will turn back on if an alarm condition occurs.
• Enable/Disable key-switch
• Function switches for:
– Acknowledge/Step
– Alarm Silence
–Drill
– System Reset/Lamp Test
NOTE: The FACP may require programming to function with the FDU-80. Refer to the specific FACP manual for programming information.
