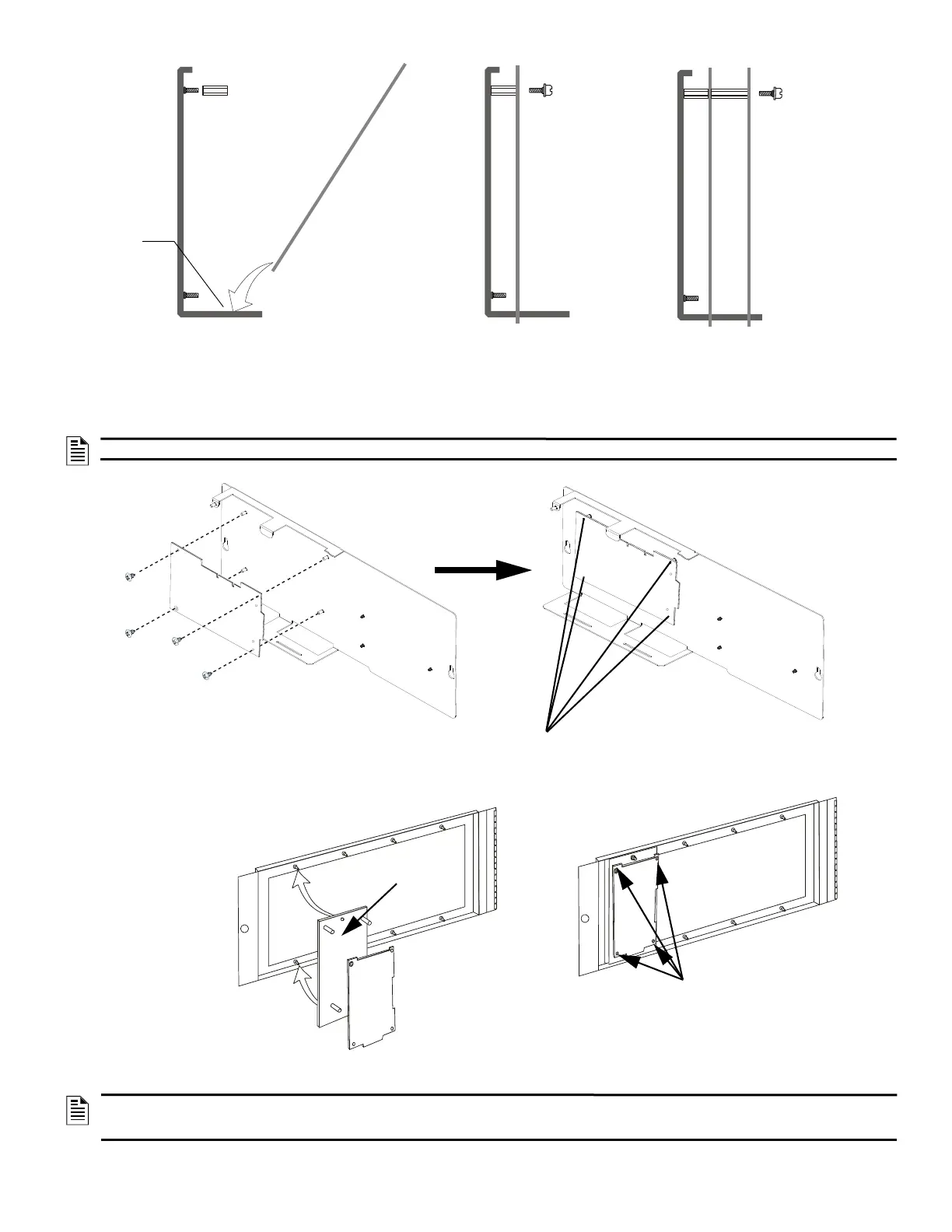

10 HS-NCM Installation Document — P/N 54014:C1 12/15/2020
NOTE: Install position of the HS-NCM with SFP Fiber Module. Must be installed in the top position of the CHS-4L only.
NOTE: The module cannot be mounted in the ADP-4B Dress Panel when a front slot of the CHS-4 or CHS-4N is occupied, or when either of the
two front right positions of the CHS2-M2 is occupied. Always be certain there is enough clearance to close the cabinet door when this installation
is used.
Insert tab of option board into slot
of chassis, and lay the HS-NCM
board back against standoffs.
Slots
One HS-NCM board
in CHS-4L
Two HS-NCM boards
in CHS-4L
Figure 8 Mounting HS-NCM in a Chassis (CHS-4L Shown)
1. Align HS-NCM over four PEM studs of
the CA-1 chassis as indicated.
2. Fasten with screws provided with HS-NCM.
Figure 9 Installing an HS-NCM-W/W-2/MF/SF/MFSF onto the CA-1 or CA-2 Audio Chassis Assembly
Mount a single-space
blank plate onto the ADP-
4B Dress Panel.
Single-space
blank plate
Fasten module to the plate with
four screws (included).
Note: Door mounting applications are appropriate for wire (HS-NCM-W) only. Fiber
model HS-NCM-MF/SF/WMF/WMF-2/WSF/WSF-2/MFSF must be stationary.
Figure 10 Door-Mounting the HS-NCM-W/W-2
