Honeywell PROGRAMMABLE THERMOSTAT RTH6350 User Manual

RTH6350/RTH6450 Series
23 69-2416ES—05
SETUP WIRING ASSISTANCE TROUBLESHOOTING

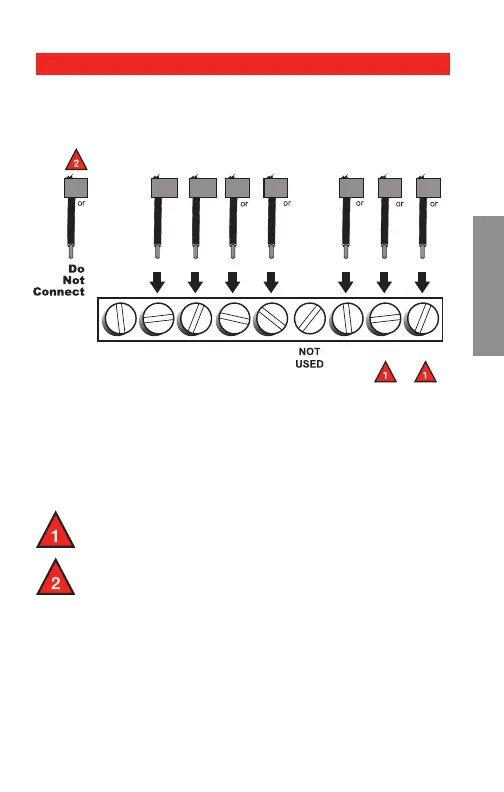

Wiring—Conventional System
If labels do not match letters on the thermostat, check
the chart below and connect to terminal as shown here
(see notes, below).
If wires will be connected to both R and Rc
terminals, remove metal jumper (see page 6).
Do not use C, X or B. Wrap bare end of wire
with electrical tape.
MCR31274A
Y2C
Y2 W2 GW YR
R
4M
V
RHY1
H
W1
B
XF
RYW
GR
c
Rc
W2

Honeywell PROGRAMMABLE THERMOSTAT RTH6350 Specifications

General

Model	RTH6350
Type	Programmable Thermostat
Stages	1 Heat/1 Cool
Temperature Control Accuracy	±1°F
Hold Feature	Yes
Filter Change Alert	Yes
Low Battery Indicator	Yes
Power Source	Battery Powered
Weight	0.5 lbs
Program Type	5-2 Day Programmable
