Honeywell PROGRAMMABLE THERMOSTAT RTH6350 User Manual

Advanced Installation Guide
69-2416ES—05 24
About your new thermostat
SETUPWIRINGASSISTANCETROUBLESHOOTING
Wiring—Heat Pump

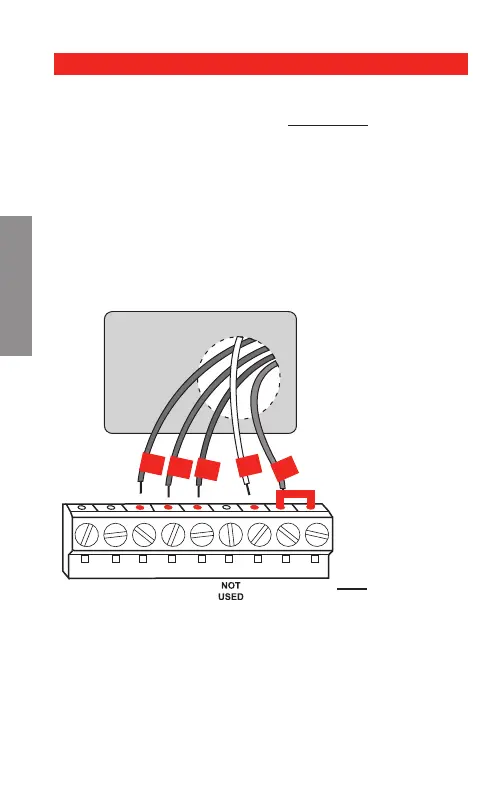

Connect wires: Heat Pump
1. Match each labeled wire with same letter on new
thermostat.
2. Use a screwdriver to loosen screws, insert wires into
hole under screw, then tighten screws until wire is
secure.
3. If E and Aux do not each have a wire connected,
use a small piece of wire to connect them to each
other.
4. Push any excess wire back into the wall opening.
Labels don’t match? See page 26.
Wiring complete, return to Step 8.
HEAT PUMP
MCR31276
AUX
Aux
O/BELG
Y
G
O
YR
R
Rc

Honeywell PROGRAMMABLE THERMOSTAT RTH6350 Specifications

General

Model	RTH6350
Type	Programmable Thermostat
Stages	1 Heat/1 Cool
Temperature Control Accuracy	±1°F
Hold Feature	Yes
Filter Change Alert	Yes
Low Battery Indicator	Yes
Power Source	Battery Powered
Weight	0.5 lbs
Program Type	5-2 Day Programmable
