NOTE: The wires going from the battery to the power supply are non-power-limited. All the wires that
go from the power supply to the other components in the enclosure (except the battery) are power-
limited.
26. Secure and lock the cabinet door to prevent access by unauthorized persons.

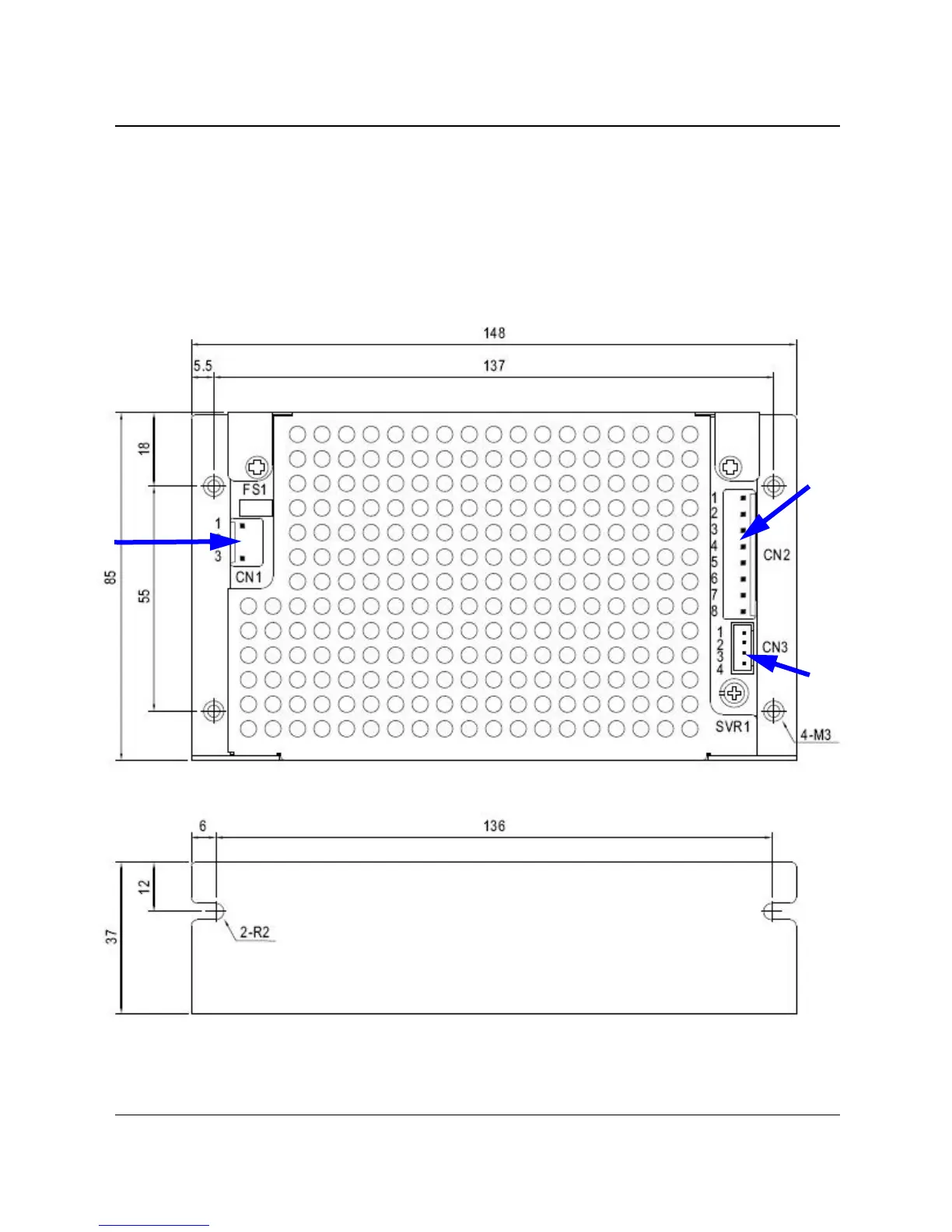

6 Connector Layout and Cabling Information
AC
Power
Inlet
12VDC
Power
and
Battery
AC
and
Battery
Fail
