6 of 12
Installation Instructions
Document 800-08279, Revision A
February 2011
© Honeywell International. All rights reserved.

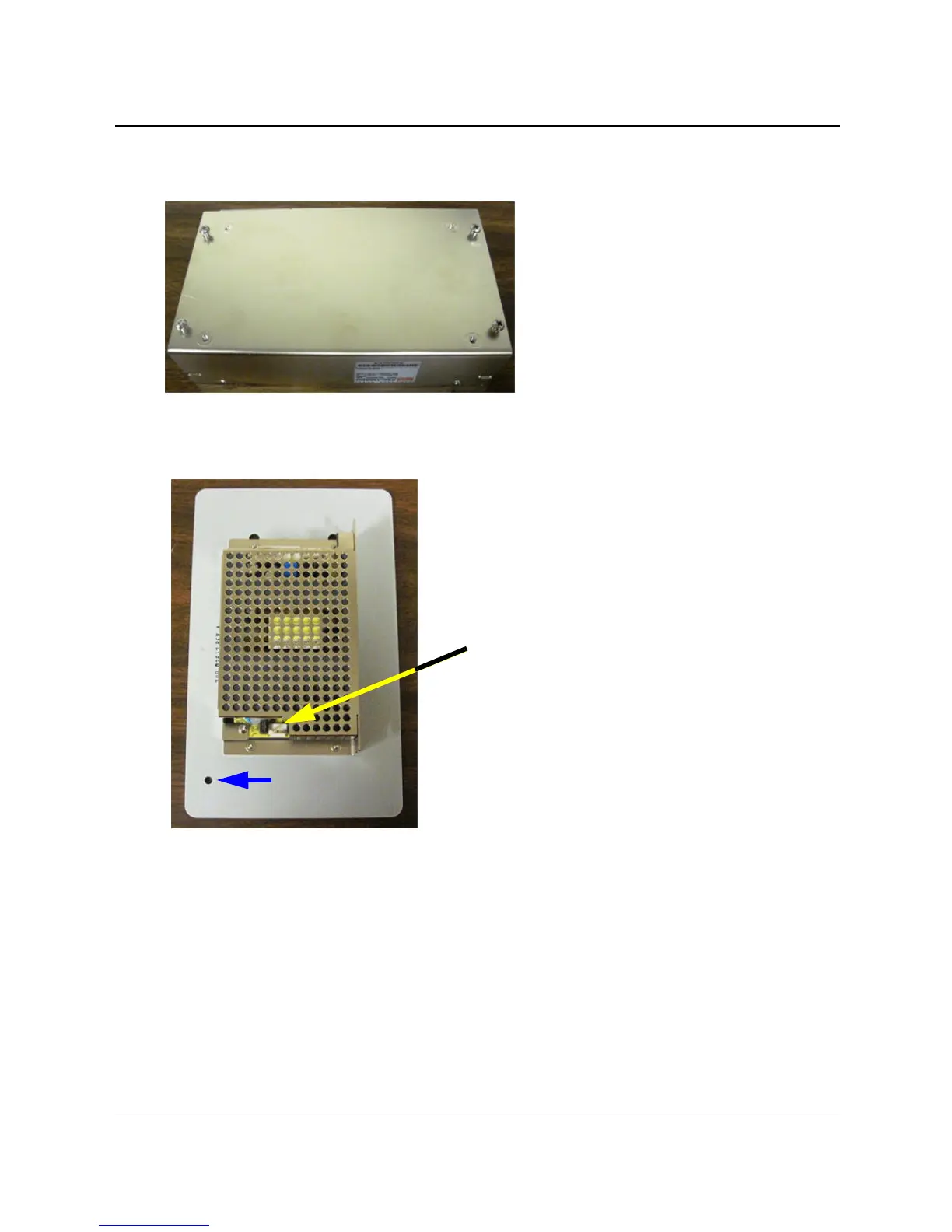

5. Turn the power supply over on its backside and install the four mounting screws (that come with
the kit) only a few turns in.
6. Position the power supply over the 4 keyholes on the metal plate making sure that the round hole
(see the below figure) is in the bottom left corner as shown and the power supply is positioned
with the AC input terminals (CN1) facing downward.
7. Slide the power supply down in the keyholes until they bottom out. Then, tighten the four
mounting screws to secure the power supply to the metal plate.
AC Input
Connector
CN1
Round Hole
To Next Page
