BUILDING NETWORK ADAPTER BNA-1C/2CS/2DN

42 EN1B-0198GE51 R1004B

7 Cables and Connectors

7.1 DB9F Null Modem Cable

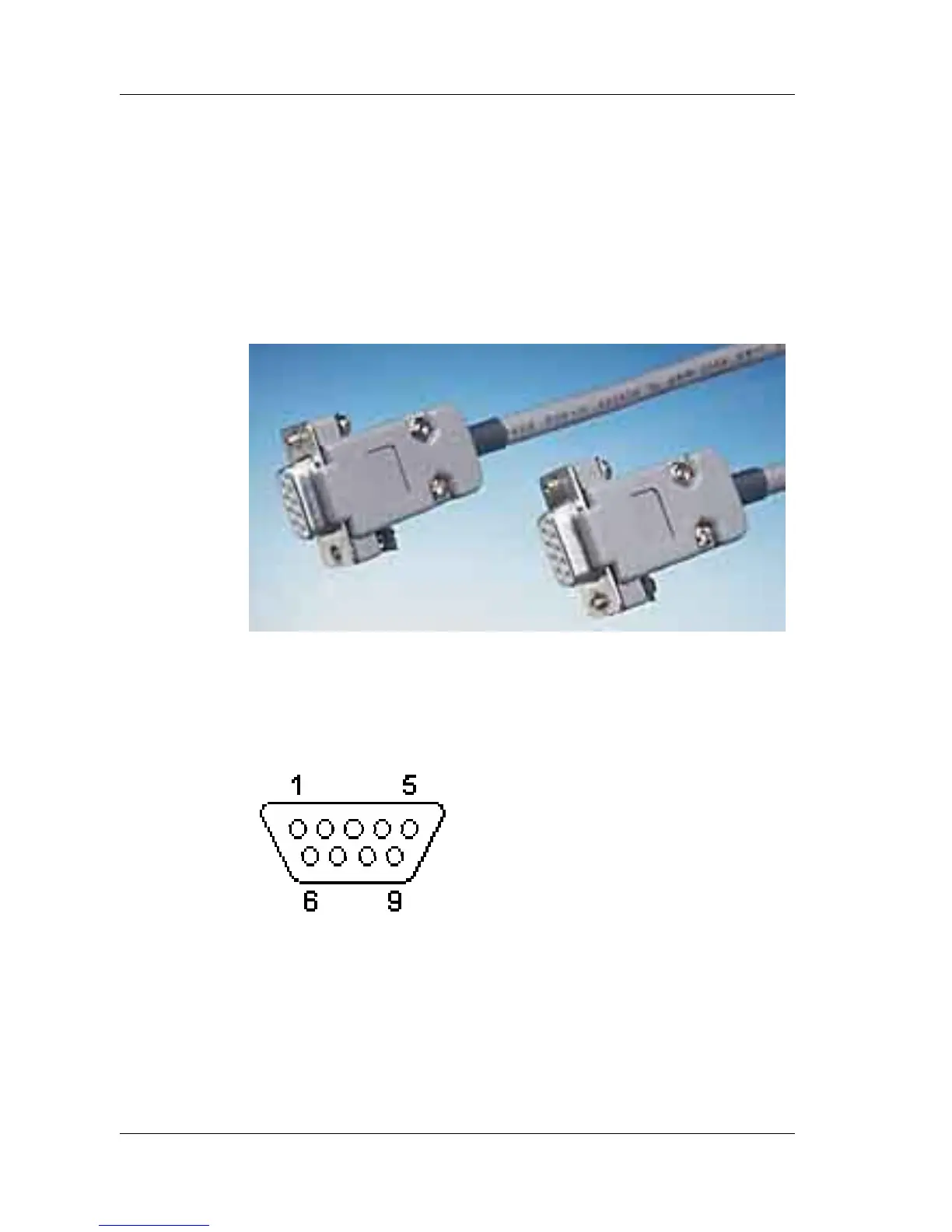

Figure 7-1: Serial connectors

The female connector is numbered as shown below:

1 DCD

2 RxD

3 TxD

4 DTR

5 Ground

6 DSR

7 RTS

8 CTS

9 RI
