21
S
CANNER
O
PERATION
Depth of Field Specifications*
Normal Scan Zone
Specifications are based o
n a
0.33 mm (13 mil) bar code.

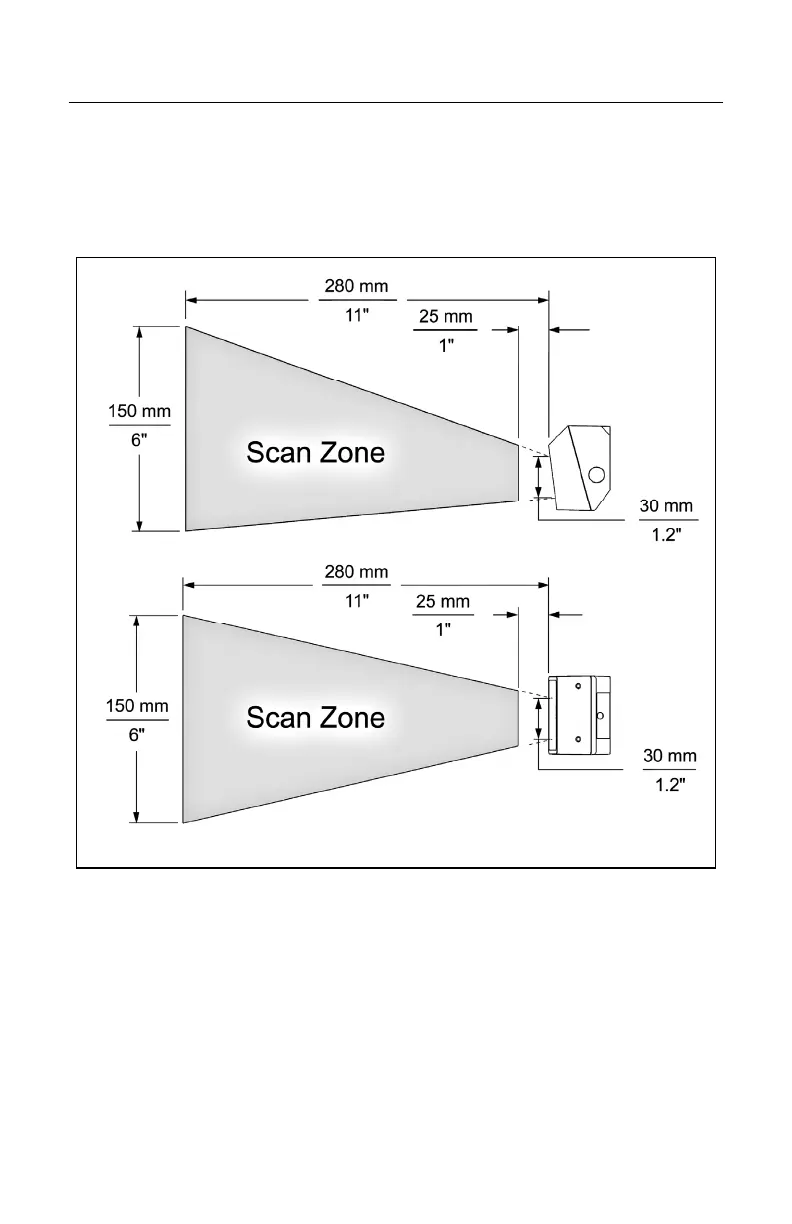

Figure 9. Normal Depth of Field
*
All specifications are subject to change w
ithout notice.
24
