Honeywell QUANTUME IS3480 User Manual

40

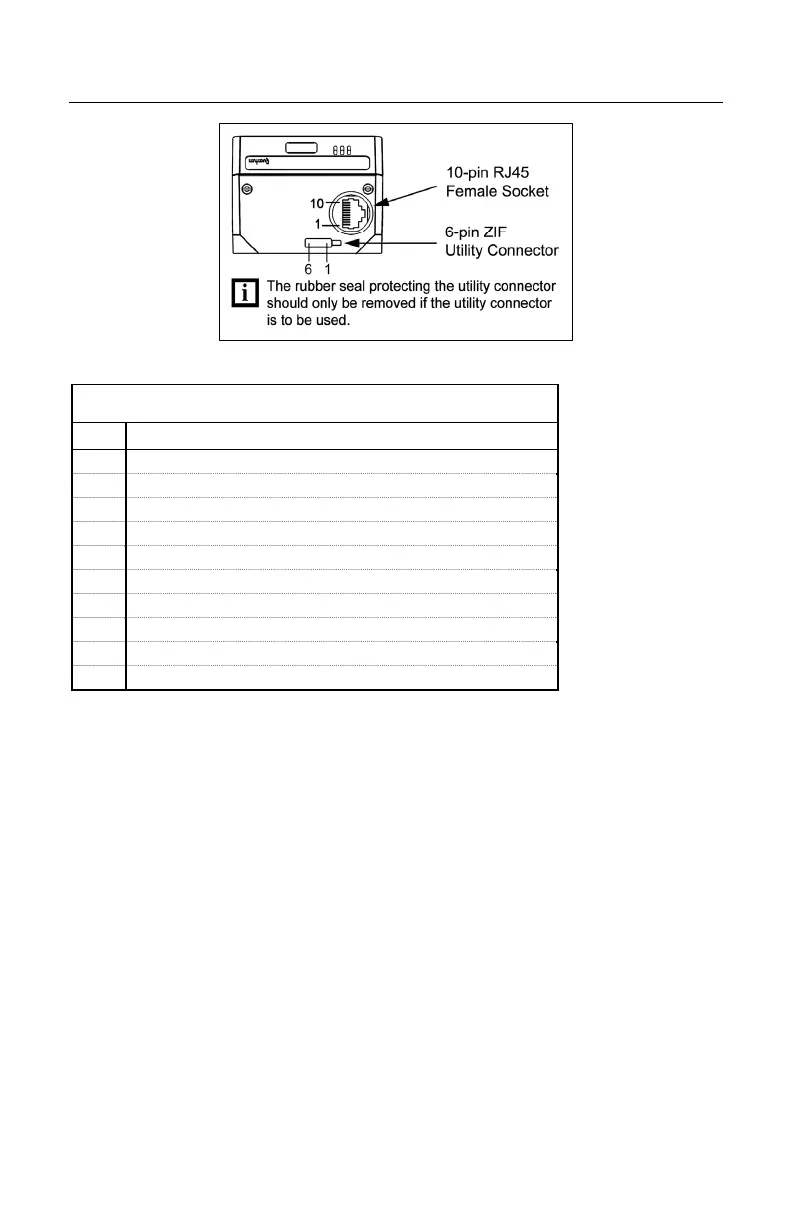

SCANNER AND CABLE TERMINATIONS
Figure 15.
IS3480-104 RS232, RS232 TTL, or Laser Emulation
Pin Function
1 Ground
2 RS232 Transmit Output
3
RS232 Receive Input
4
RTS Output (TTL RS232) / Flip Sense
5
CTS Input (TTL RS232) / Trigger Emulation Output
6
DTR Input (TTL RS232) / Scan Enable
7
Receive (TTL RS232) / Good Read
8
Transmit (TTL RS232) / Scan Data
9
+5VDC
10
Shield Ground
