Honeywell RTH8500 Owner's Manual

4
Do not remove wallplate yet

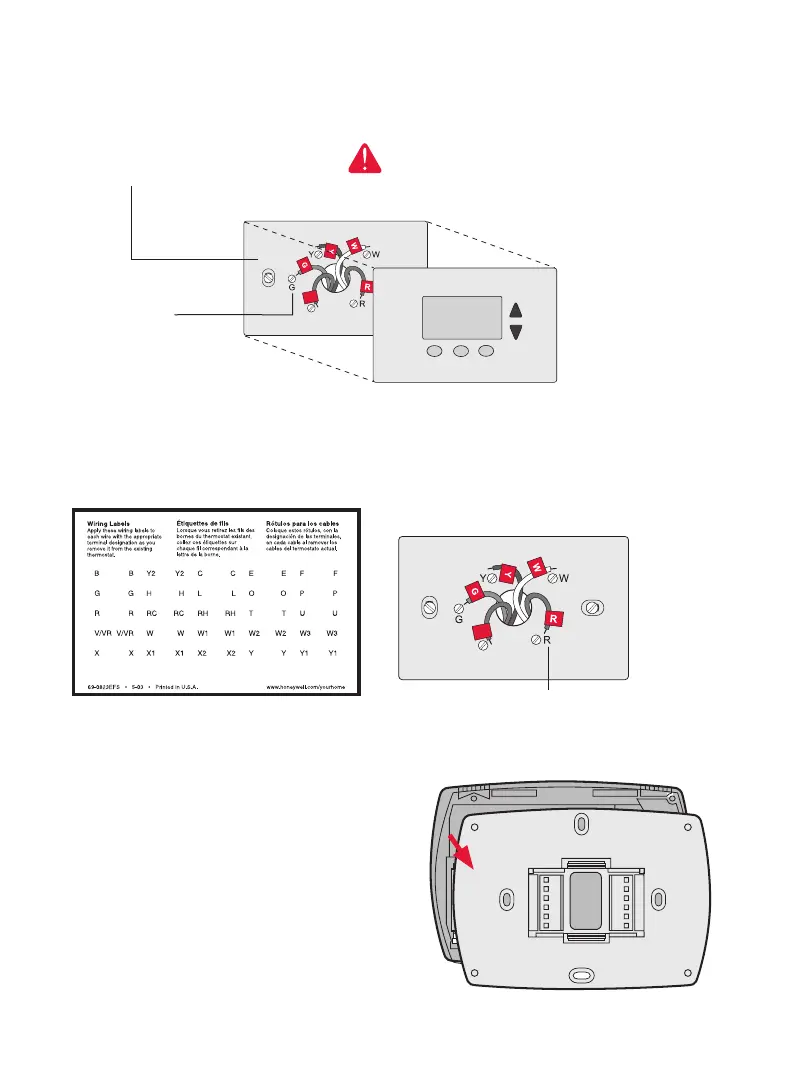

3 Label Wires with Tags
Label the wires using the supplied wire labels as you disconnect them, then
remove the old wallplate. Wire color might not match labels.
Wire Labels
M28100
C
C
MCR33823
Terminal
designation
If you have an older thermostat with a
sealed mercury tube, turn to page 2
for proper disposal instructions.
Terminal designation
C
C
MCR31537
2 Remove Old Thermostat
Remove old thermostat but leave wallplate with wires attached.
4 Separate Wallplate from New Thermostat
Remove wallplate from the new thermostat
and mount onto wall.
Wallplate
+
+
+
M28334

Honeywell RTH8500 Specifications

General

Hold Feature	Yes
Compatibility	Works with most heating and cooling systems
Temperature Range	40°F to 90°F
Weight	250 g
Programmable	7-day programmable
Dimensions	4.5 x 3.5 x 0.9 inches (114 x 89 x 23 mm)
