Honeywell RTH8500 Owner's Manual

5

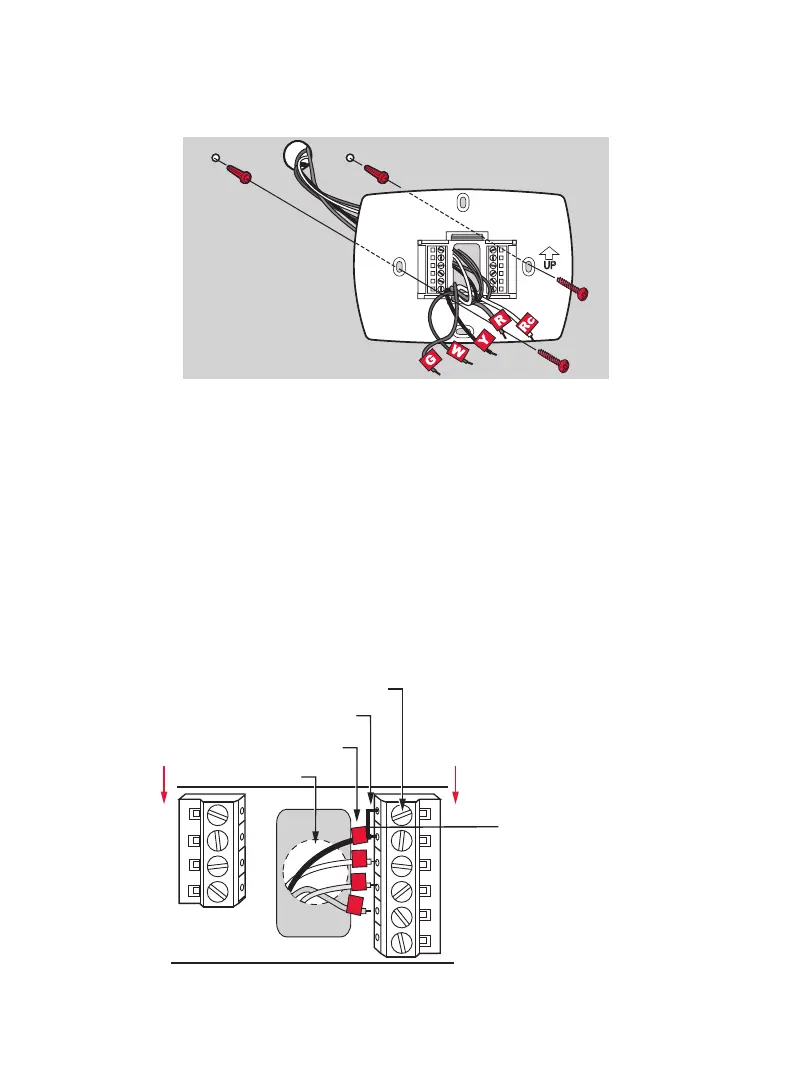

5 Mount Wallplate
Mount the new wallplate using the included screws and anchors.
Drill 3/16-in. holes for drywall
Drill 3/32-in. holes for plaster
6 Connect Wires
Simply match wire labels.
If labels do not match letters on the thermostat, check “Alternate Wiring
(Conventional Systems)” on page 6 and connect to terminal as shown here
(see notes, below).
We are here to help. Call 1-800-468-1502 for wiring assistance.
M27514
Remove metal jumper
if you have both R
and Rc wires.
M27515
RC
R
W
Y
G
C
Y2
W2
LABELED WIRES
SCREW
CONVENTIONAL
INSERT WIRES
THEN TIGHTEN SCREWS
WIRE HOLE
R
W
CONVENTIONAL
G
Y

Honeywell RTH8500 Specifications

General

Hold Feature	Yes
Compatibility	Works with most heating and cooling systems
Temperature Range	40°F to 90°F
Weight	250 g
Programmable	7-day programmable
Dimensions	4.5 x 3.5 x 0.9 inches (114 x 89 x 23 mm)
