7800 SERIES S7800A KEYBOARD DISPLAY MODULE
65-009
0-6
8
RUN
T
otal Cycles
RUN
Total Hours
1332
333
PILOT
IGN
00:10
PILOT
IGN
00:05
H1
Fault
Cycle
Fault
History
174
M24165

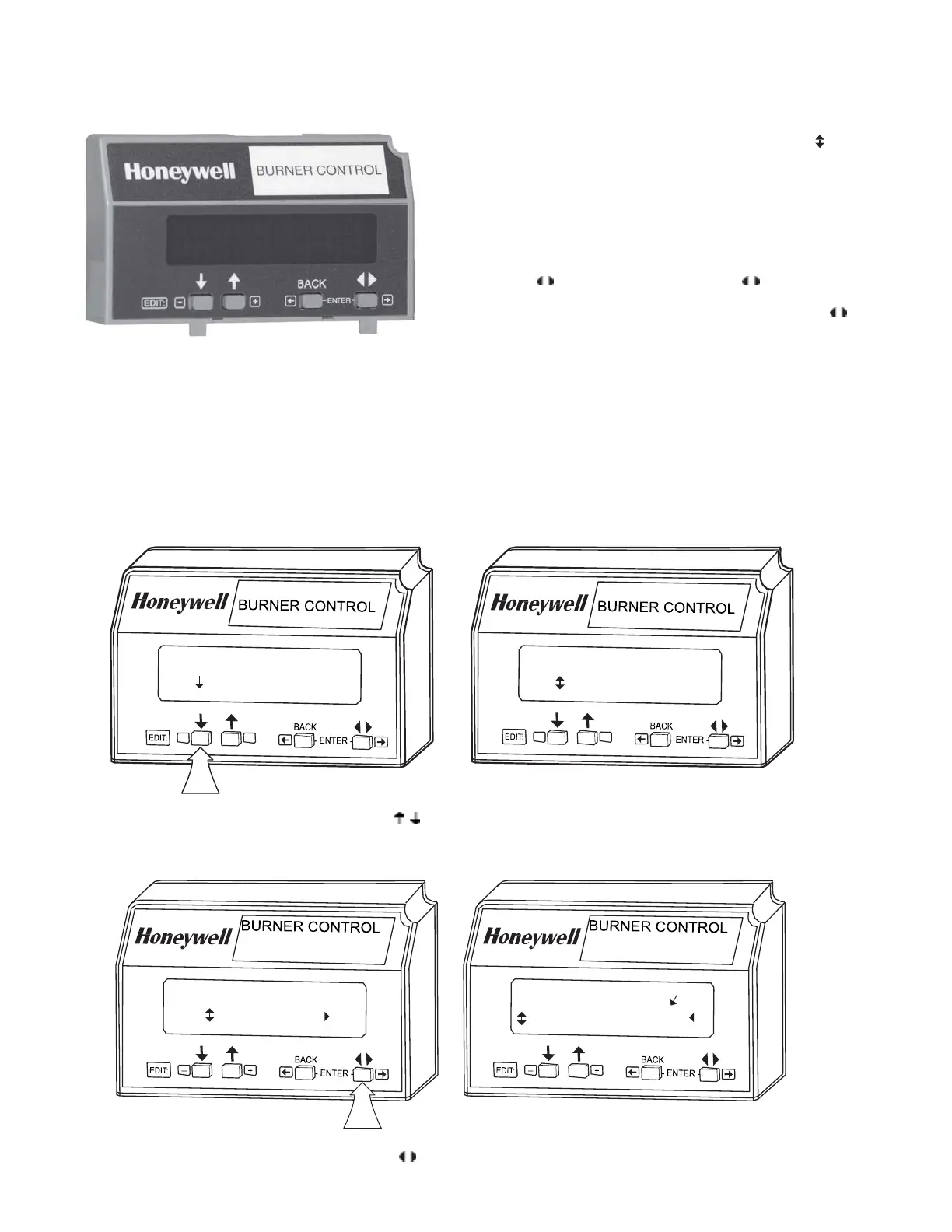

Fig. 9. S7800 Keyboard Display
Module.
Keyboard Functions
The keyboard contains four push-buttons with separate
functions (SCROLL-down, SCROLL-up, MODE, and
CHANGE-LEVEL). The MODE and CHANGE-LEVEL, when
pressed together, provide a SAVE function. When in the Setup
Screen-Mode
and Change Level serves as Menu or Enter.
1. Down-up arrow push-buttons. See Fig. 10. The down-up
arrow push-buttons are used to scroll through the
selectable messages. The double-headed arrow ( ),
which is located in the lower left position of the second
line of the display, represents the down-up push-buttons.
The down-up push-buttons can be pressed to display the
selectable messages one at a time or held down to scroll
through the selectable messages at the rate of two per
second. When the last item of the selectable message is
viewed, the display wraps around and displays the first
selectable
message again.
2. The push-button, see Fig. 11. The push-button is
used to change between the first hierarchy of selectable
messages to a subset of selectable messages. The
push-button can also be used to change from a subset
message to a first level selectable message. The symbol
located on the second line
in the lower right corner of the
display, represents a subset of selectable messages.
3. BACK push-button, see Fig. 12. Use the BACK
push-button to instantaneously switch the display from a
second-line selectable message to a second-line
preempted message. The sixty second time-out function
can also be used for this task. The BACK push-button
only works if there is a second-line preempted message
or a lockout message.
Fig. 10. Push-button
function.
M22871
M22872
Fig. 11. push-button
function.
