SCS Series Manual — P/N 15712:L 7/18/16 185
HVAC Wiring Diagrams Ratings and Wiring Diagrams

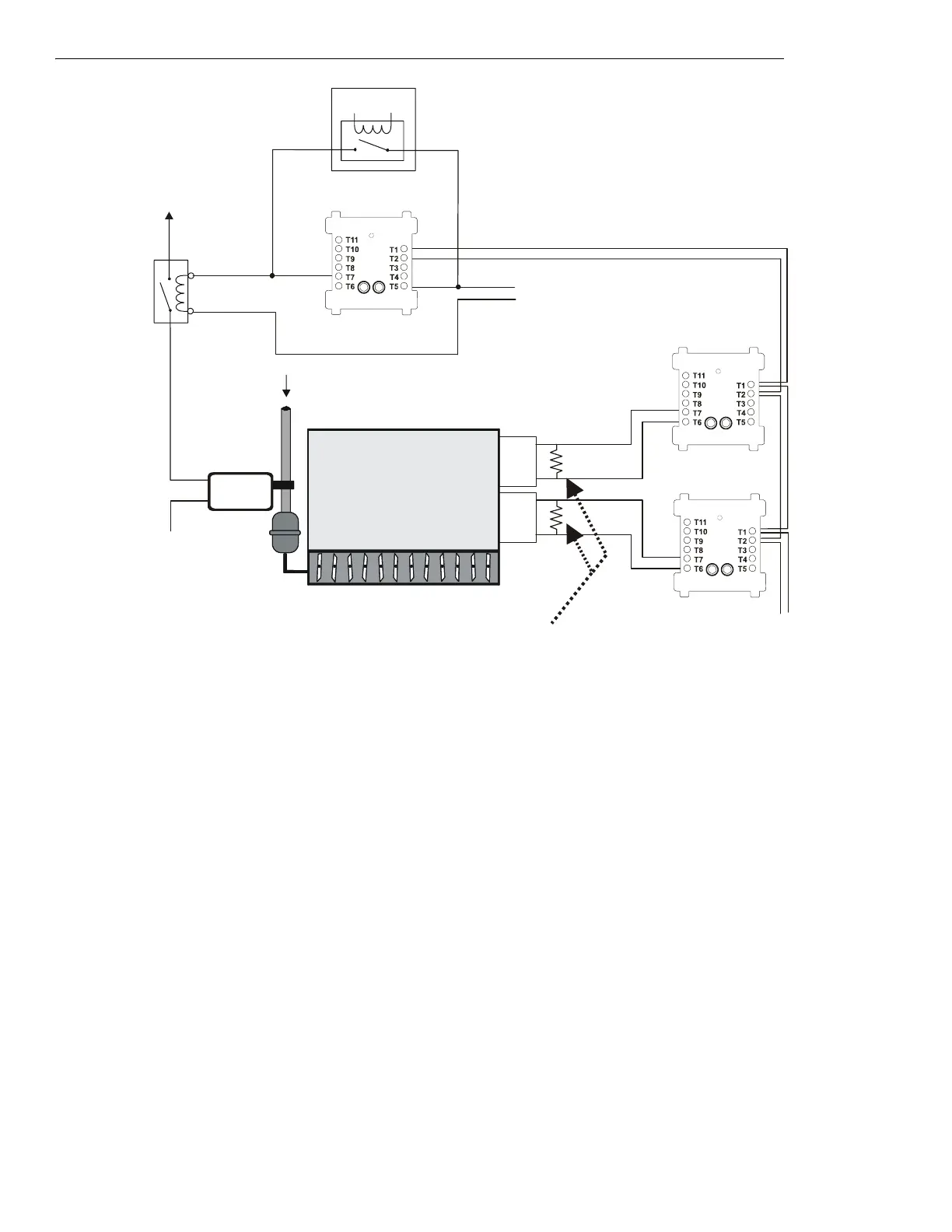

Figure 5.77 EP Damper Control - HVAC Switch Group Type 11
Figure 5.77 depicts an EP damper in an HVAC system with the capability of OPEN control and verification of the OPEN and CLOSED state,
switch group type 11. In the above configuration, the CON
ON⁄OP
CM is activated. The CON
ON⁄OP
CM controls a normally closed contactor
for the pressure switch power line. When the CON
ON⁄OP
CM is activated, the normally closed contactor is opened. When the contactor opens,
power is cut from the pressure switch which allows airflow to open the damper. When the CON
ON⁄OP
CM is deactivated, the EMS is free to
control the damper. The EMS is currently being overridden by the CON
ON⁄OP
CM.
When power is cut from the pressure switch, the damper opens. When the damper completely opens, the damper open limit switch is
CLOSED
and the damper closed limit switch is
OPEN, indicating that the damper is in the OPEN position. The VER
ON⁄OP
MM monitors the CLOSED
position of the damper open limit switch and the VER
OFF⁄CL
MM monitors the CLOSED position of the damper closed limit switch. In this
case the VER
ON⁄OP
MM is activated and the VER
OFF⁄CL
MM is deactivated because the damper is OPEN.
FMM-1
Airflow
PRESSURE
SWITCH
SMOKE
DAMPER
OPEN
Power
Source
Listed
24 VDC
Power Source
SLC Loop
DEP-h11A-fs-2.wmf
Power
Return
VER
OFF⁄CL
MM
(deactivated)
N/O
COM
Limit Switch
for closed
position
ELR-47K
(use 3.9K listed ELR with FZM-1)
Pneumatic
Tubing
Energy
Management
System
N/O
COM
Limit Switch
for open
position
VER
ON⁄OP
MM
(activated)
FMM-1
1b listed
contactor
FRM-1
CON
ON/OP
CM
(activated)
COM
N/O
*If the SLC device
does not match the
one in this figure, refer
to the SLC manual
appendix, which
contains wiring
conversion charts for
type V and type H
modules.
