186 SCS Series Manual — P/N 15712:L 7/18/16
Ratings and Wiring Diagrams HVAC Wiring Diagrams

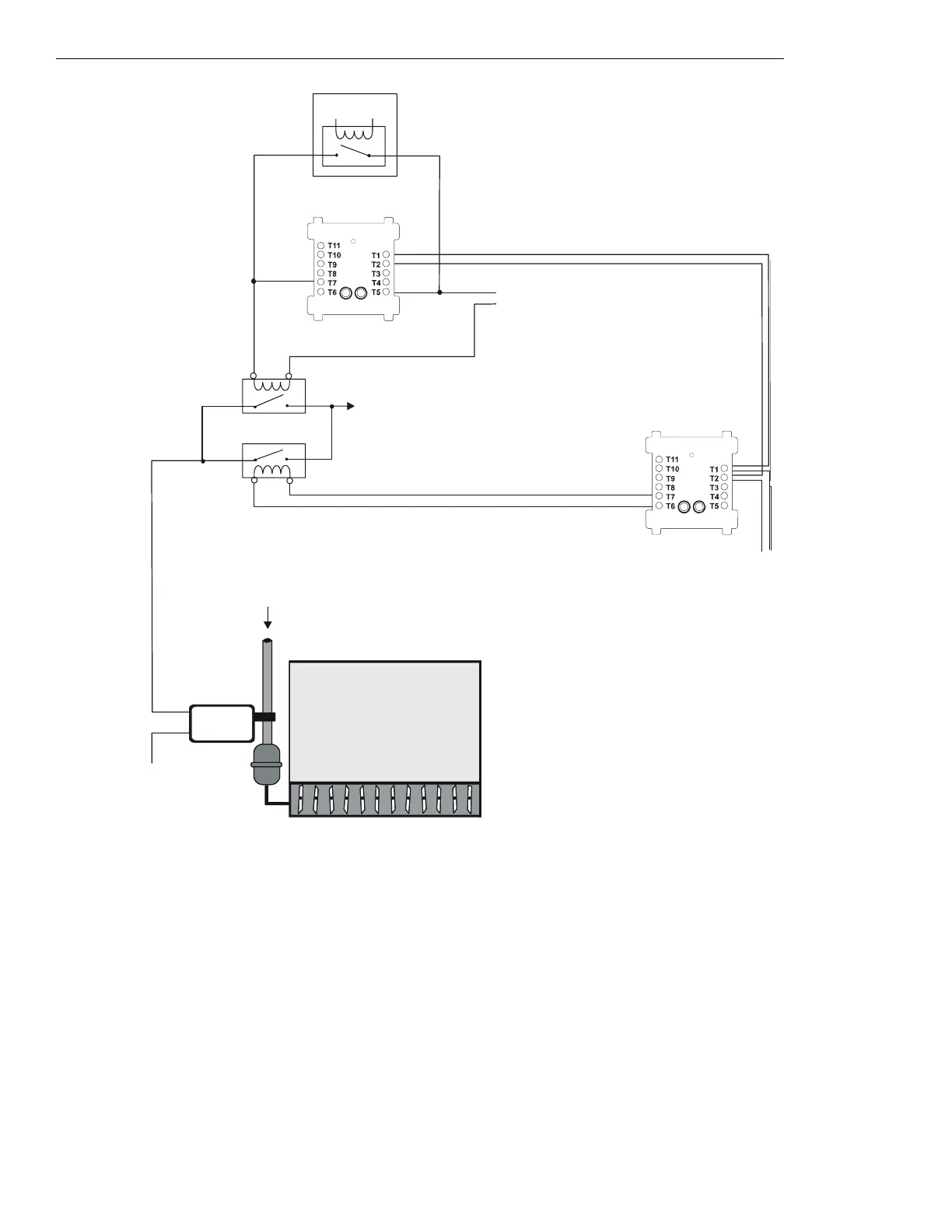

Figure 5.78 EP Damper Control - HVAC Switch Group Type 12
Figure 5.78 depicts an EP damper in an HVAC system with the capability of
OPEN and CLOSED control, switch group type 12. In the above
configuration, the CON
ONOP
CM is activated and the CON
OFFCL
CM is deactivated. The CON
ONOP
CM controls normally closed contactor
for the pressure switch power line. When the CON
ONOP
CM is activated, the normally closed contactor is opened. When the contactor opens,
power is cut from the pressure switch which allows airflow to open the damper. When the CON
ONOP
CM is deactivated, the EMS is free to
control the damper. The EMS is currently being overridden by the CON
ONOP
CM.
FRM-1
COM
N/O
Airflow
PRESSURE
SWITCH
SMOKE
DAMPER
OPEN
Power Source
Listed
24 VDC
Power Source
SLC Loop
FCM-1
CON
OFF/CL
CM
(deactivated)
DEP-h12A-fs-2.wmf
Power
Return
Pneumatic
Tubing
Energy
Management
System
1a listed
contactor
1b listed
contactor
CON
ON/OP
CM
(activated)
*If the SLC device
does not match the
one in this figure, refer
to the SLC manual
appendix, which
contains wiring
conversion charts for
type V and type H
modules.
