COMPACT VAV CONTROLLER WEB-VA423B24N INSTALLATION INSTRUCTIONS
15 31-00362-01
SCHEMATIC DIAGRAM

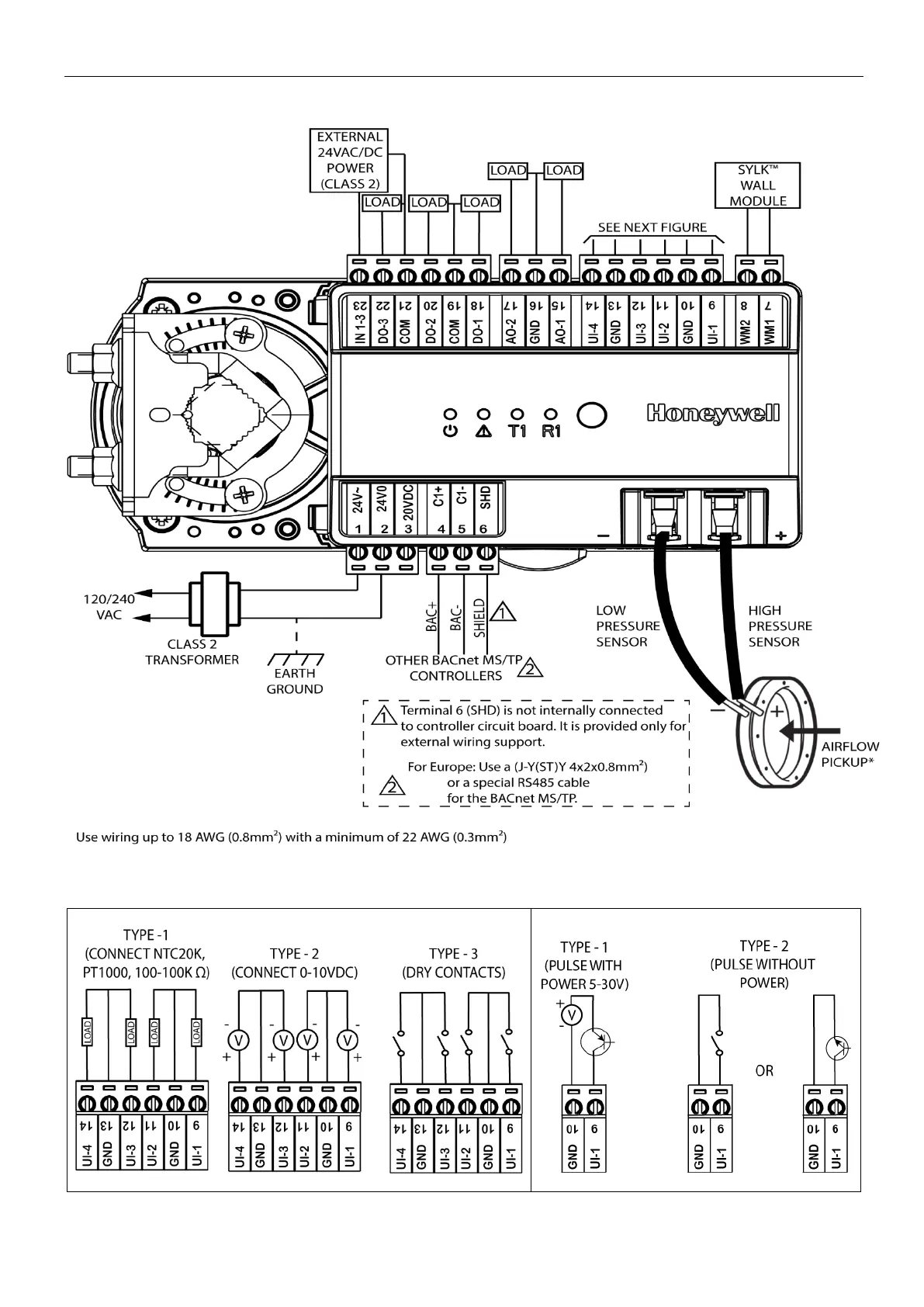

Fig. 17. Schematic diagram for WEB-VA423B24N
UI wiring
All UI
Pulse Meter (UI-1 only)
