T7200D,E, T7300D,E,F AND Q7300 SERIES 2000 PROGRAMMABLE COMMERCIAL THERMOSTATS AND SUBBASES
63-4355—233

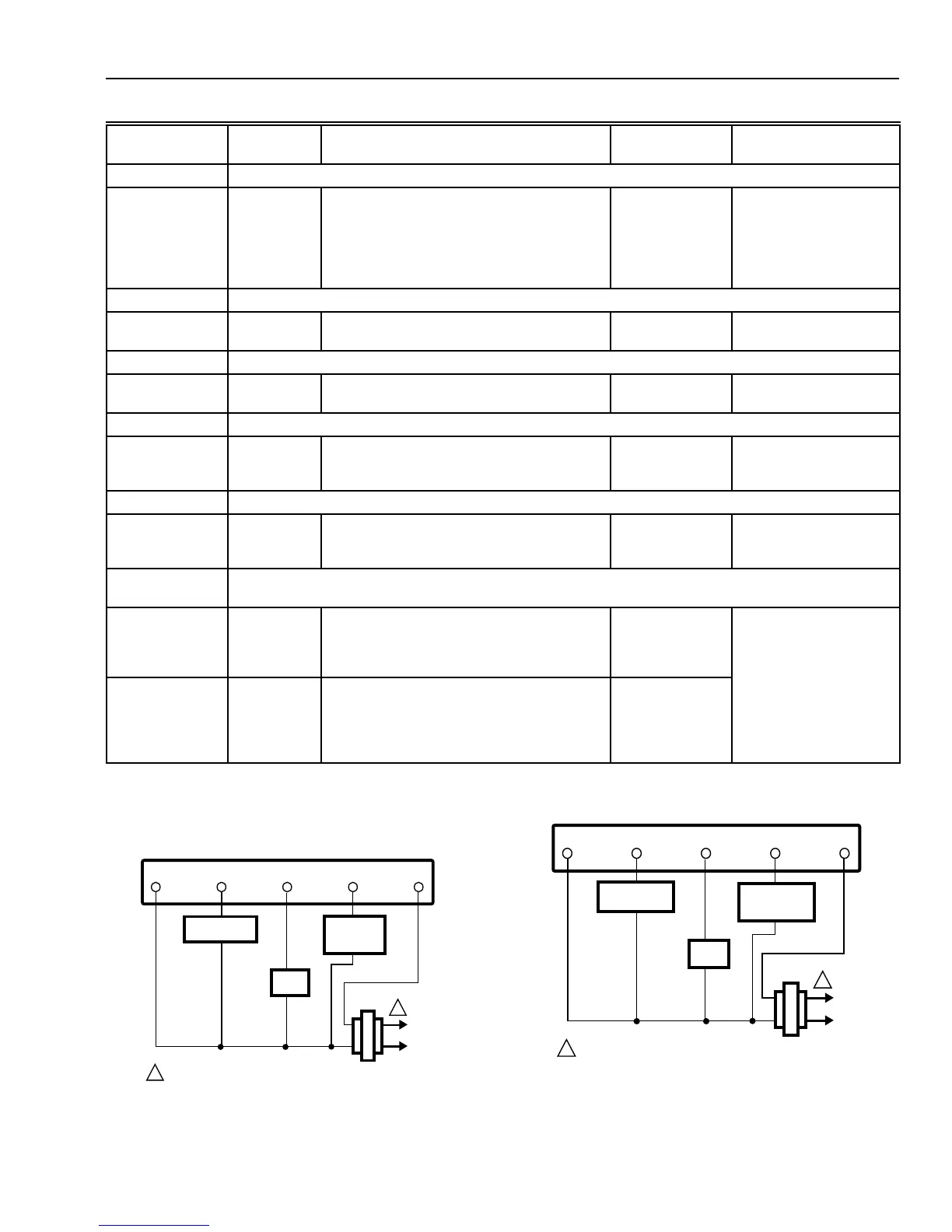

T7300/Q7300 Series 2000 Cross Reference (Continued).
Model Number
Figure
Number Description
Trade
Replacement Remarks
Q7300L Multistage subbase used with ML7984A, V5011, V5013 and T7300D or F Thermostat.
Q7300L2004 31, 32 Two-stage heat and one-stage cool
(2H/1C); TRADELINE® model; multispeed
fan; contacts for damper control relay and
pump interlock relay; HEAT and COOL
LEDs; remote sensor and discharge air
sensor capability; taupe color.
Q7300L2004 Direct replacement for
Q7300L1006 and
Q7300L1014 Subbases.
T7200D One-stage heat and one-stage cool conventional thermostat.
T7200D2008 19 Honeywell logo; no system or fan settings. T7200D2008 Direct replacement for
T7200A Thermostats.
T7200E One-stage heat and one-stage cool heat pump thermostat.
T7200E2005 20 Honeywell logo; no system or fan settings. T7200E2005 Direct replacement for
T7200B Thermostats.
T7300D Multistage conventional thermostat used with Q7300A,G, or L Subbase.
T7300D2007 Refer to
subbase
Honeywell logo; TRADELINE® model;
remote sensor capability; system settings:
Heat-Off-Cool-Auto; taupe color.
T7300D2007 Direct replacement for
T8621 Thermostats.
T7300E Multistage heat pump thermostat used with Q7300C or D Subbase.
T7300E2020 Refer to
subbase
Honeywell logo; TRADELINE® model;
remote sensor capability; system settings:
Em Heat-Heat-Off-Cool-Auto; taupe color.
T7300E2020 Direct replacement for
T8611M Thermostats.
T7300F Multistage thermostat for heat pump (Q7300C or D Subbase) and conventional
(Q7300A,G or L Subbase) applications.
T7300F2002 Refer to
subbase
Honeywell logo; SUPER TRADELINE®
model; remote sensor and discharge air
sensor capability; no system or fan
settings; taupe color.
T7300F2002
T7300F2010 Refer to
subbase
Honeywell logo; SUPER TRADELINE®
model; remote sensor and discharge air
sensor capability; system settings:
configurable; fan settings: Auto-On;
taupe color.
T7300F2010
L1
(HOT)
L2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
1
HEATING
RELAY OR
VALVE COIL
M4942
RCY1GW1
THERMOSTAT
1
COMPRESSOR
CONTACTOR
FAN
RELAY
L1
(HOT)
L2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REQUIRED.
1
COOL
CHANGEOVER
VALVE
M4943
RCYGO
THERMOSTAT
1
COMPRESSOR
CONTACTOR
FAN
RELAY
WIRING DIAGRAMS (FIG. 19-33)
Fig. 19. T7200D with wallplate.
Fig. 20. T7200E with one-stage heat pump system.
