T8011R PROGRAMMABLE HEAT PUMP THERMOSTAT
Fig. 4. Restrict wiring to shaded area.
KEEP WIRING IN
SHADED AREA
MOUNTING
SCREW HOLE
MOUNTING
SCREW HOLE
WIRING ENTRANCE
HOLE
M11331
G
C
R
Y
W1
L
W2
E
B
O
L1
(HOT
)
L2
1
1
2
2
POWER SUPPLY. PROVIDE DISCONNECT MEANS AND OVERLOAD PROTECTION AS REQUIRED.
REMOVE JUMPER, WHEN SUPPLIED, FOR SYSTEMS WITH SEPARATE HEATING COMPRESSOR CONTACTOR (W1 SEPARATE FROM Y).
SYSTEM
SWITCH
HEAT
OFF
COOL
R
W2
L
B
O
Y
EM. HT.
W1
E
AUXILARY
HEAT RELAY
CHANGEOVER
VALVE HEAT
CHANGEOVER
VALVE COOL
COMPRESSOR
CONTACTOR
COMPRESSOR
CONTACTOR
HEAT
FAN RELAY
RELAY
EMERGENCY
HEAT RELAY
G
C
THERMOSTAT
LOGIC
THERMISTOR
SENSOR
POWER
SUPPLY
ON
AUTO
STAGE 2 RELAY
STAGE 1 RELAY
FAN SWITCH
M11333

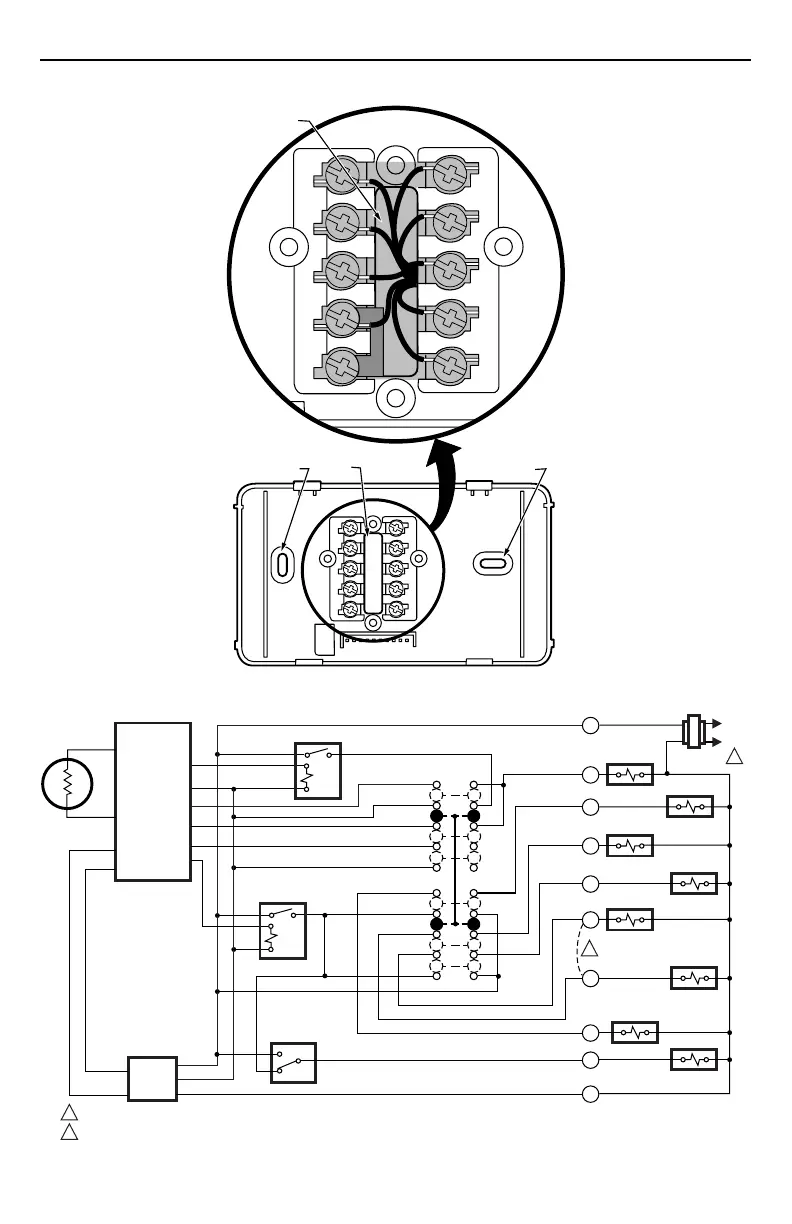

Fig. 5. T8011R two stage heat, one stage cool wiring diagram with manual changeover.
