Installation Guide
TABLE OF CONTENTS
Input Ratings:
Voltage: 18-30 VAC 50/60 Hz transformer of 40 VA
or more.
Current Draw:
Zone Panel: 8.5 VA max.
THM4000 Wireless Adapter: 2 VA max.
All VA specifications at 24 VAC.
Wiring:
18- or 20-gauge solid (not stranded) wire.
Humidity Ratings:
5% to 90% RH non-condensing.
Temperature Ratings:
Shipping: -20° to 150°F (-29° to 66°C)
Operating: -40° to 165°F (-40° to 74°C)
Dimensions:
See Fig. 1.
Emissions:
Complies with FCC Class B, part 15 requirements.
Specifications ................................................................................................................................. ii
Application .....................................................................................................................................1
Accessories .................................................................................................................................... 1
Mounting .........................................................................................................................................2
Wiring ..............................................................................................................................................3
Heat Pump ......................................................................................................................................6
Dual Fuel .........................................................................................................................................8
Basic Configuration ..................................................................................................................... 10
Advanced Configuration .............................................................................................................. 12
Operation ...................................................................................................................................... 13
Checkout ...................................................................................................................................... 13
Warranty ....................................................................................................................................... 14
Read and save these instructions.
Need Help?
For assistance with this product please visit http://customer.honeywell.com and http://yourhome.honeywell.com
or call Honeywell Zoning Hotline toll-free at 1-800-828-8367
® U.S. Registered Trademark. U.S. Patents No. 7,693,591; 7,904,830; 7,913,180; 7,904,830; 7,819,331; 7,766,246; 7,558,648 and other patents pending.
Copyright © 2012 Honeywell International Inc. All rights reserved.
M24797
13.42
(341)
1.86 (47)
8 (203)

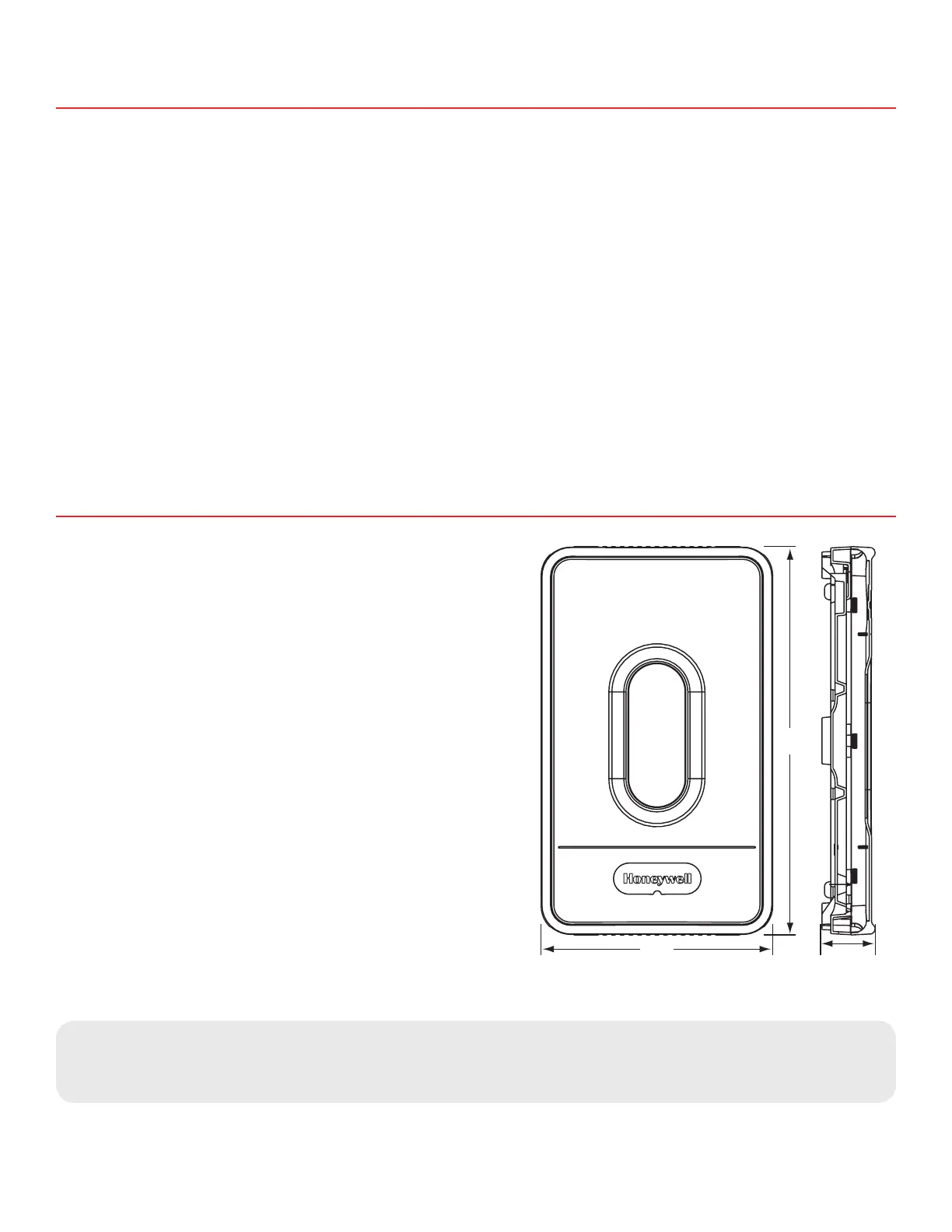

Fig. 1. HZ432 TrueZONE panel dimensions in in. (mm).
SPECIFICATIONS
