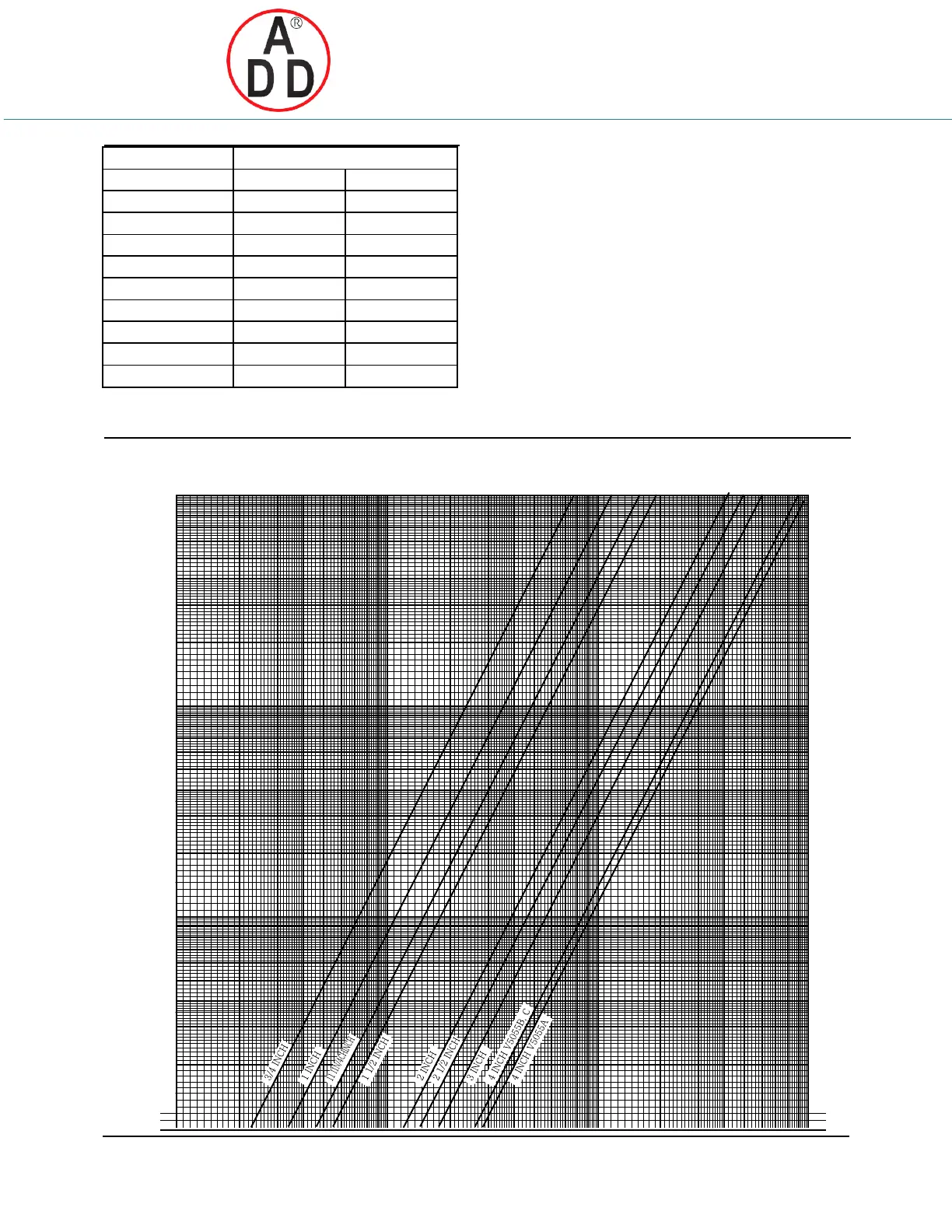

Honeywell V5055A-E - Page 3

3
60-2307—10
บริษัท เอดีดี เฟอร์เนส จํากัด
ADD FURNACE CO.,LTD.
44 ซอยบรมราชชนนี 70 ถนนบรมราชชนนี แขวงศาลาธรรมสพน์ เขตทวีวัฒนา กรุงเทพฯ 10170
โทร: 02-888-3472 โทร: ออกแบบ:08-08-170-170 แฟกซ์: 02-888-3258
https://www.add-furnace.com E-mail: sales@add-furnace.com
I.A.S.
a
Rated Capacity
Valve Size (in.)
cf/h
cu m/hr
3/4
665
18.8
1
960
27.2
1-1/4
1406
39.8
1-1/2
1717
48.6
2
3620
102.5
2-1/2
4250
120.3
3
5230
148.1
4 (V5055A)
10200
288.8
4 (V5055B,C)
9180
259.9
a
A joint venture of CGA Approvals Inc. and AGA Labora-
tories.
UPSTREAM TAPPING AND PLUG: 1 /4 in. NPT or BSP-
PL is standard.
DOWNSTREAM TAPPING AND PLUG:
1/4 in. NPT on most domestic models.
1/8 in. NPT on V5055C1182.
AMBIENT OPERATING TEMPERATURE RATING:
-40F to 150F (-40C to 66C); -40F to 125F (-
40C to 52C) when used with V9055.
MATERIAL: Die-cast aluminum.
MOUNTING: Mounts directly in the gas supply line.
DIMENSIONS: See Fig. 2 and 3.
WEIGHT:
3/4, 1, 1-1/4, 1-1/2, in. valve: 4 lb. (1.8 kg).
2 in. valve: 8 lb. (3.6 kg).
2-1/2, 3 in. valve: 11 lb. (5.0 kg).
4 in. valve: 28 lb. (12.7 kg).
Fig. 1—Flow curves for V5055 Valves.
100.0
1
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1
100.0
(25) 9 9
8 8
7 7
6 6
5 5
4 4
3 3
2 2
10.0
1
(2.5) 9
8
7
6
5
4
3
2
1.0 1
(0.25)
.9
.8
.7
.6
.5
.4
.3
.2
.1
1.0
9
8
7
6
5
4
3
2
1.0
.9
.8
.7
.6
.5
.4
.3
.2
.1
CAPACITY, IN CUBIC FEET PER HOUR (cf/h) FOR GAS WITH SPECIFIC GRAVITY OF 0.64 [1 cf/h = 0.0283 cu m/hr]
M9542
PRESSURE DROP, INCHES WC
[1 in. wc = 0.25 kPa]
100
1000
10,000
100,000
(2.8)
(28)
(283)
(2830)
