REPLACEMENT PARTS:
Replacement Seal Assembly: Includes valve seal, bonnet
seal, and tube of lubricant.
133393A: for 3/4, 1, 1-1/4, and 1-1/2 in. valves
133392A: for 2, 2-1/2, and 3 in. valves.
137253A: for 4 in. valves.
Replacement Bonnet Assembly: Includes complete bon-
net assembly, plus the required replacement seal assem-
bly.
APPROVALS: The following combinations of V5055 Valves
(3/4 through 4 in.) and V4055, V4062 and V9055 Fluid
Power Actuators are approved by these agencies:
Underwriters Laboratories Inc. Listed: (File No. MH1639,
Guide No. YIOZ):
V4055A,B,D,E/V5055A,B,C,D,E
V4062/V5055A,B,C,E
V9055/V5055A,B,C,E

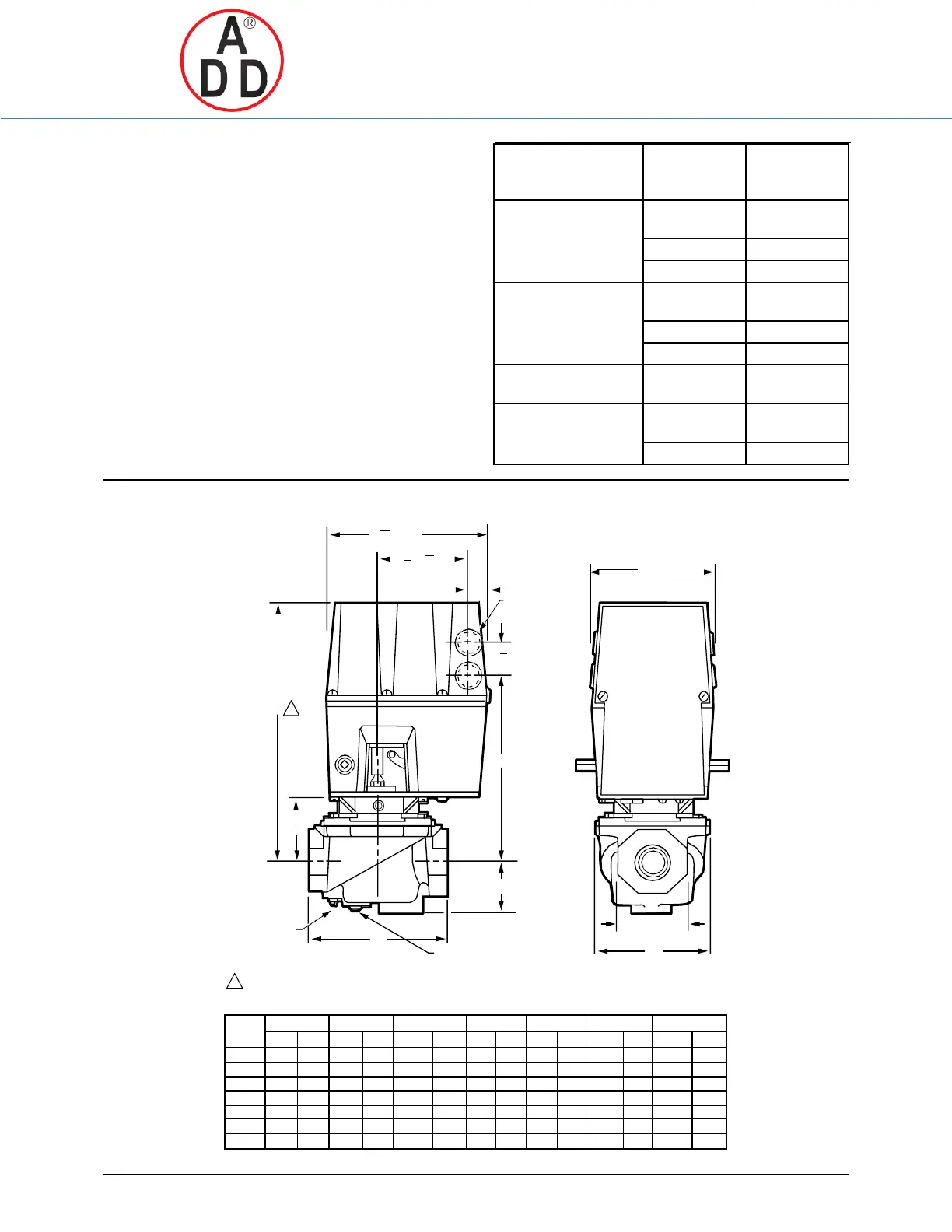

Fig. 2—Approximate dimensions of the 3/4 through 3 in. V5055 Valves with valve actuator in in. (mm).
3
(171.5)
4
3
23
(94.5)
32
27
(21.4)
32
KNOCKOUT
FOR1/2 INCH
CONDUIT (4)
1
9
32
(32.5)
A 1
C
B
E
1/4 INCH NPT
DOWNSTREAM
TAP AND PLUG
D
1/4 INCH NPT UPSTREAM
TAP AND PLUG
ALLOW 2 IN. (51 mm) CLEARANCE FOR ACTUATOR REMOVAL.
VALVE
SIZE
INCH
DIM A
DIM B
DIM C
DIM D
DIM E
DIM F
OCTAGON
IN.
MM
IN.
MM
IN.
MM
IN.
MM
IN.
MM
IN.
MM
IN.
MM
3/4
11-1/8
282.6
2-3/4
69.9
8-3/16
208.0
5-3/4
146.1
2-1/4
57.2
4-13/16
122.2
2-13/16
71.4
1
11-1/8
282.6
2-3/4
69.9
8-3/16
208.0
5-3/4
146.1
2-1/4
57.2
4-13/16
122.2
2-13/16
71.4
1-1/4
11-1/8
282.6
2-3/4
69.9
8-3/16
208.0
5-3/4
146.1
2-1/4
57.2
4-13/16
122.2
2-13/16
71.4
1-1/2
11-1/8
282.6
2-3/4
69.9
8-3/16
208.0
5-3/4
146.1
2-1/4
57.2
4-13/16
122.2
2-13/16
71.4
2
11-1/4
285.8
2-7/8
73.0
8-5/16
211.1
8-3/8
212.7
2-3/4
69.9
7-19/32
192.9
3-1/2
88.9
2-1/2
11-3/4
298.5
3-3/8
85.7
8-13/16
223.8
9-1/4
235.0
2-3/4
69.9
7-19/32
192.9
4-1/2
114.3
3
11-3/4
298.5
3-3/8
85.7
8-13/16
223.8
9-1/4
235.0
2-3/4
69.9
7-19/32
192.9
4-1/2
114.3
M9585
5 (127)
OCTAGON
F
1
6
Valve
Model
Valve
Size (in.)
Replacement
Bonnet
Assembly
V5055A (On-Off)
3/4, 1, 1-1/4,
1-1/2
133398AA
2, 2-1/2, 3
133417AA
4
136911AA
V5055B
(Characterized guide)
3/4, 1, 1-1/4,
1-1/2
133398BA
2, 2-1/2, 3
133417BA
4
136911BA
V5055C (Valve-
closed indicator)
4
136911CA
V5055D (High
pressure On-Off)
3/4, 1, 1-1/4,
1-1/2
136308AA
2, 2-1/2, 3
136307AA
