VB6 SERIES 6-WAY CONTROL BALL VALVES AND ACTUATORS - INSTALLATION INSTRUCTIONS
11 Printed in USA 31-00380M-02
DIMENSIONS
Dimension of Valve body
Table 2. Dimensions
Valve nominal size A B C D E F
Valve Body Inch inch (mm) inch (mm) inch (mm) inch (mm) inch (mm) inch (mm)
VB6A 1/2’ 6.85 (174) 2.76 (70) 6.63 (168) 5.33 (135) 4.14 (105) 3.77 (95)
VB6B 3/4’ 7.01 (178) 3.07 (78) 6.92 (176) 5.46 (139) 4.15 (105) 4.09 (104)

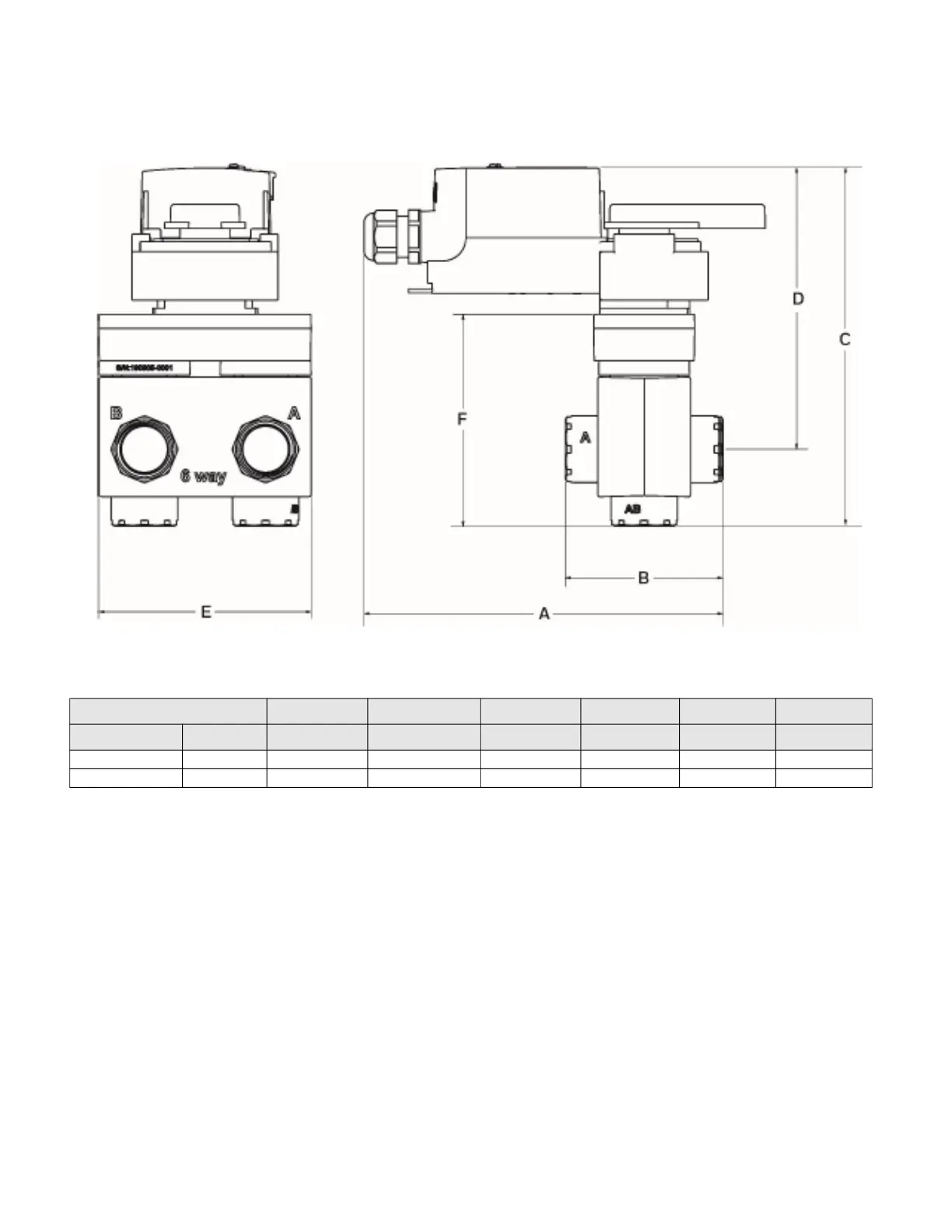

Figure 18. Dimension of VB6 series 6-way control valve
