Honeywell XL 800 Series User Manual

Description of the XCL8010AU Controller Module Excel 800
EN1B-0410GE51 R0908A
8
““ G MUST BE
WIRED TO EARTH GROUND
14507063-002 POWER CABLE
(incl. with 14507287 power modules
14507287-001 through -003, only.)
CONNECTORS ARE KEYED TO
PREVENT MISALIGNMENT.
CONVENIENCE OUTLET
(UNFILTERED, UNSWITCHED)
-001 = 120 VAC, 10 AMP
24 VAC CONTROLLER
POWER SWITCH
120 VAC, 60 HZ
LINE INPUT
UNSWITCHED
UNFILTERED
120 VAC
BRN
GRN
BLK
ON
*
H
N
G
* 14507287-001 POWER TERMINALS LABELED H-N-G.
CONTROLLER
POWER
OFF
G
~
CONTROLLER
SUPPLY
24VAC
48VA
CONNECTOR TO
XL800 CONTROLLER
J5
MUST BE WIRED
TO EARTH GROUND
F1
2 AMP
FUSE F1 (2 AMPS) PART NUMBERS ARE AS FOLLOWS:
–HONEYWELL PART NO. 14000485-007
(AVAILABLE FROM HONEYWELL BRANCH LOCATIONS, ONLY)
–BUSSMAN PART NO. AGC-2
–LITTLEFUSE PART NO. 312002
MAIN LINE VOLTAGE
120 VAC, 60 HZ
TERMINAL MUST BE
CONNECTED TO A GOOD
EARTH GROUND.
G
““

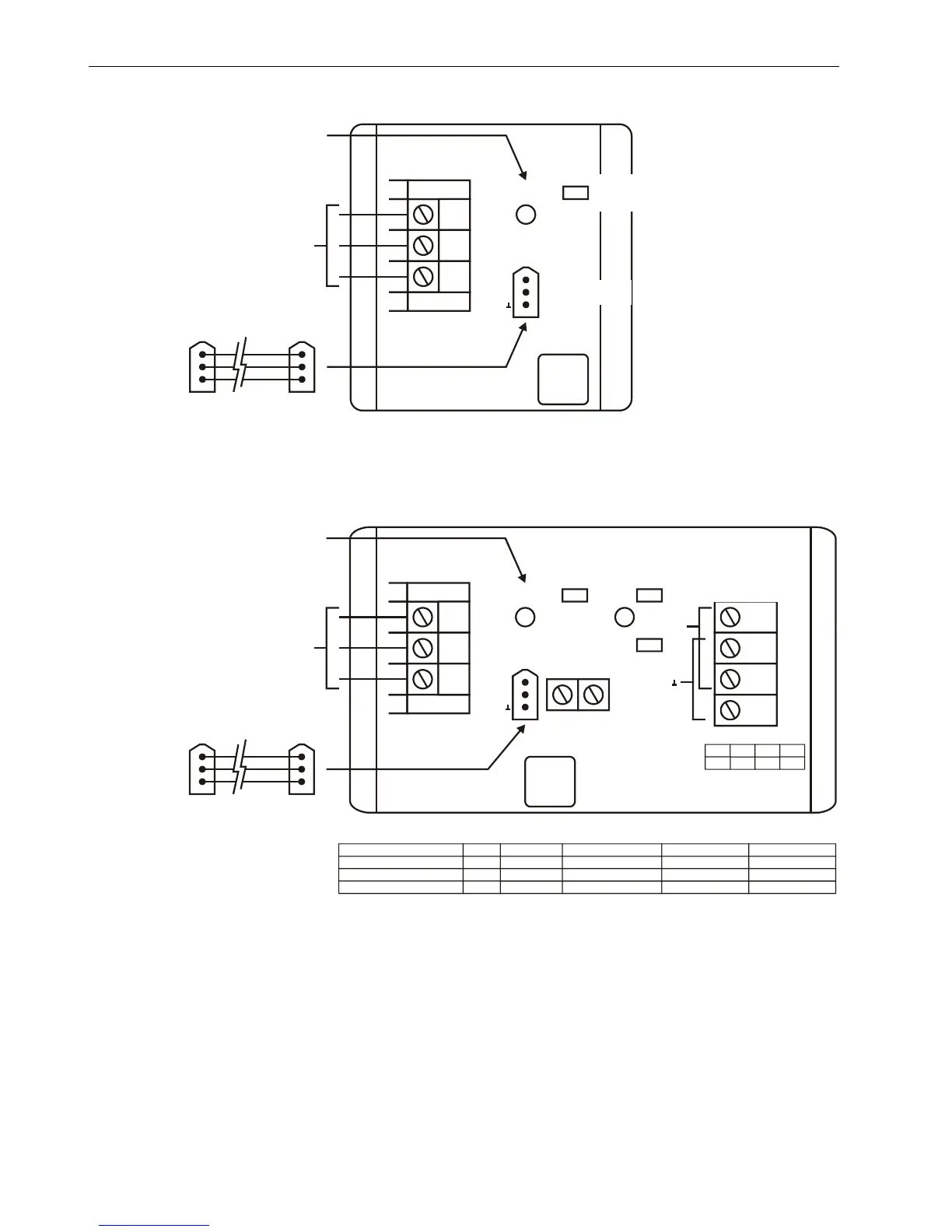

Fig. 5. Typical 14507287-001 Power Module wiring
““ G MUST BE
WIRED TO EARTH GROUND
14507063-002 POWER CABLE
(incl. with 14507287 power modules
14507287-001 through -003, only.)
CONNECTORS ARE KEYED TO
PREVENT MISALIGNMENT.
CONVENIENCE OUTLET
(UNFILTERED, UNSWITCHED)
-002 AND -003 = 10 AMP
24 VAC ACCESSORY POWER
-002 MODEL, ONLY. 2 AMP MAX.
24 VAC CONTROLLER
POWER SWITCH
120 VAC, 60 HZ
LINE INPUT
120 VAC, 60 HZ
LINE INPUT
UNSWITCHED
UNFILTERED 120 VAC
FOR 14507287-003 (24VDC)
FOR 14507287-002 (24VAC)
BRN
GRN
BLK
ON ON
*
H
N
G
* 14507287-001 POWER TERMINALS LABELED H-N-G.
CONTROLLER
POWER
OFF OFF
G
~
~
CONTROLLER
SUPPLY
24VAC
48VA
CONNECTOR TO
XL800 CONTROLLER
J5
MUST BE WIRED
TO EARTH GROUND
F1 F2
F3
2 AMP 5 AMP
2 AMP
MAIN LINE VOLTAGE
120 VAC, 60 HZ
TERMINAL MUST BE
CONNECTED TO A GOOD
EARTH GROUND.
G
““
BRN
BRNRED
GRY GRY
GRYGRY
BRN
24VAC ACCESSORY
POWER -002 AND -003
MODELS (4 AMP MAX.)
14507287-001 THROUGH -003
14507287-002 AND -003
14507287-002 AND -003
POWER MODULE
F1
F2
F3
FUSE NO.
2 AMPS
5 AMPS
2 AMPS
FUSE RATING
14000485-007
14507374-001
14000485-007
HONEYWELL PART NO.
AGC-2
GMA 5AMP
AGC-2
BUSSMAN PART NO.
312002
235005
312002
LITTLEFUSE PART NO.
Fig. 6. Typical 14507287-002, -003 Power Module wiring
