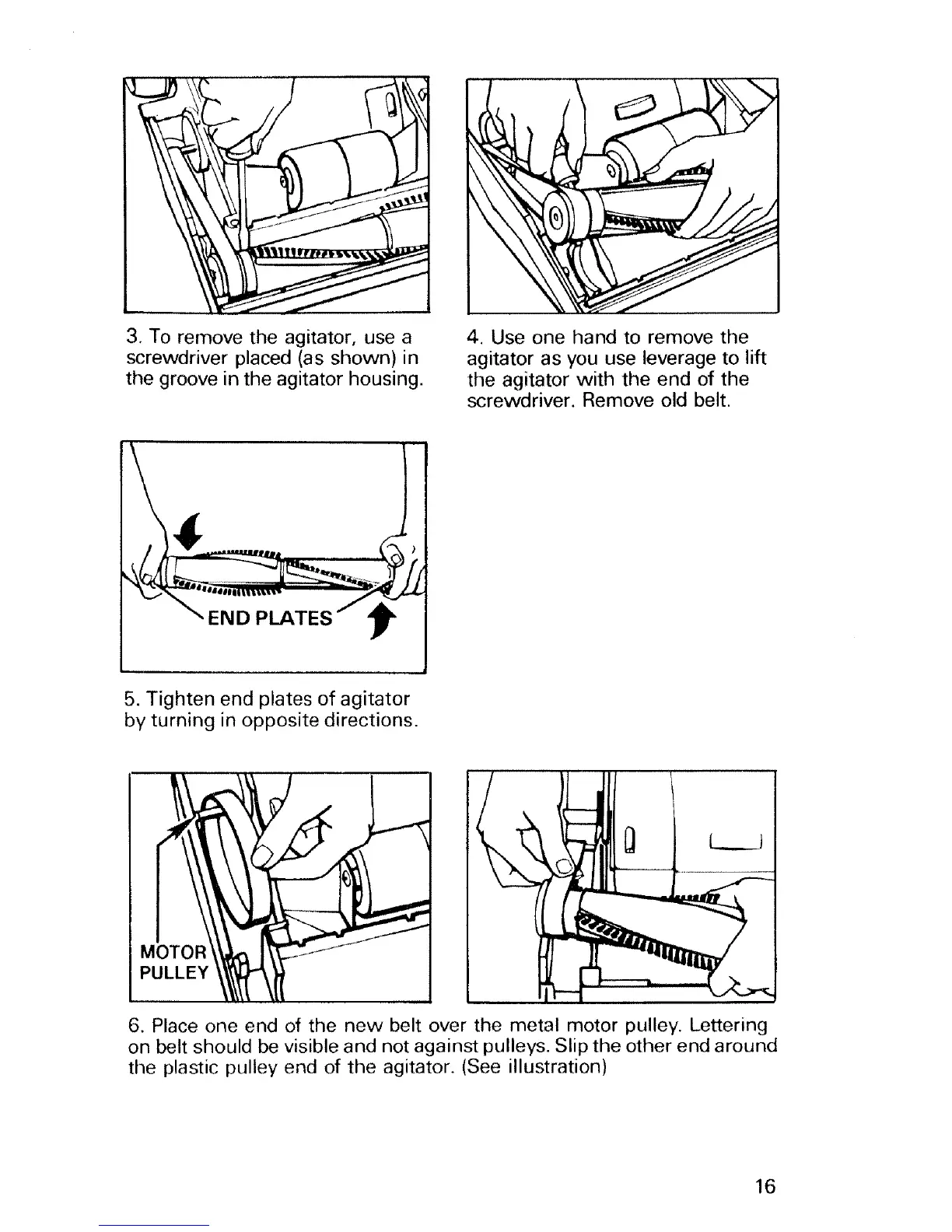

3. To remove the agitator, use a
screwdriver placed (as shown)in
the groove in the agitator housing.
4_ Use one hand to remove the
agitator as you use leverage to lift
the agitator with the end of the
screwdriver. Remove old belt.
END PLATE, _
5. Tighten end plates of agitator
by turning in opposite directions.
MOTOR
PULLEY
6. Place one end of the new belt over the metal motor pulley. Lettering
on belt should be visible and not against pulleys. Slip the other end around
the plastic pulley end of the agitator. (See illustration)
16
